Toyota CORONA — MIRROR

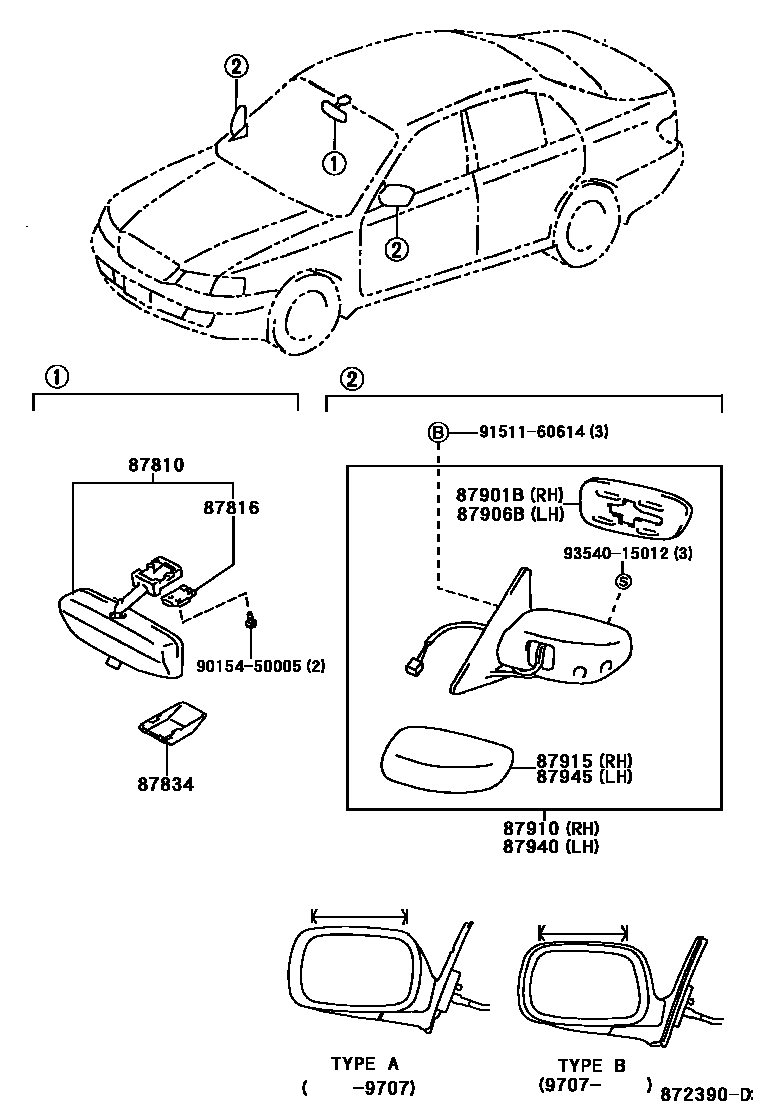

87810MIRROR ASSY, INNER REAR VIEW
DK.CHARCOAL,TRIM17
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM1#
MD.CHARCOAL,TRIM17
LIGHT GRAY,TRIM11
ANTELOPE,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
87910MIRROR ASSY, OUTER REAR VIEW, RH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE A:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE A:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE A:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE A:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE B:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE B:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,CRYSTAL SILVER PEARL,1C1 ,2EG
TYPE B:REFER TO ILLUSTRATION,FLAXEN MM,4M7
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4
87915COVER, OUTER MIRROR, RH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE A:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE A:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE A:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE A:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE B:REFER TO ILLUSTRATION,CRYSTAL SILVER PEARL,1C1 ,2EG
TYPE B:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE B:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE B:REFER TO ILLUSTRATION,FLAXEN MM,4M7
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,DK.BLUE MC.,8P4
87940MIRROR ASSY, OUTER REAR VIEW, LH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE A:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE A:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE A:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE A:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE B:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE B:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,CRYSTAL SILVER PEARL,1C1 ,2EG
TYPE B:REFER TO ILLUSTRATION,FLAXEN MM,4M7
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4
87945COVER, OUTER MIRROR, LH
TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE A:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE A:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE A:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE A:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE A:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040
TYPE B:REFER TO ILLUSTRATION,SILVER PEARL ME.,1A7
TYPE B:REFER TO ILLUSTRATION,CRYSTAL SILVER PEARL,1C1 ,2EG
TYPE B:REFER TO ILLUSTRATION,MAGENTA MC.,3L3
TYPE B:REFER TO ILLUSTRATION,BEIGE M.M.,4N3
TYPE B:REFER TO ILLUSTRATION,FLAXEN MM,4M7
TYPE B:REFER TO ILLUSTRATION,GRAYISH GREEN M.M.,6N0
TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6P2
TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8L3
TYPE B:REFER TO ILLUSTRATION,DK.BLUE MC.,8P4
9015450005
main90154-50005
9151160614
main91511-60614
9354015012
main93540-15012
12 parts on this diagram · 1 diagram in section
MIRROR for Toyota CORONA
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
