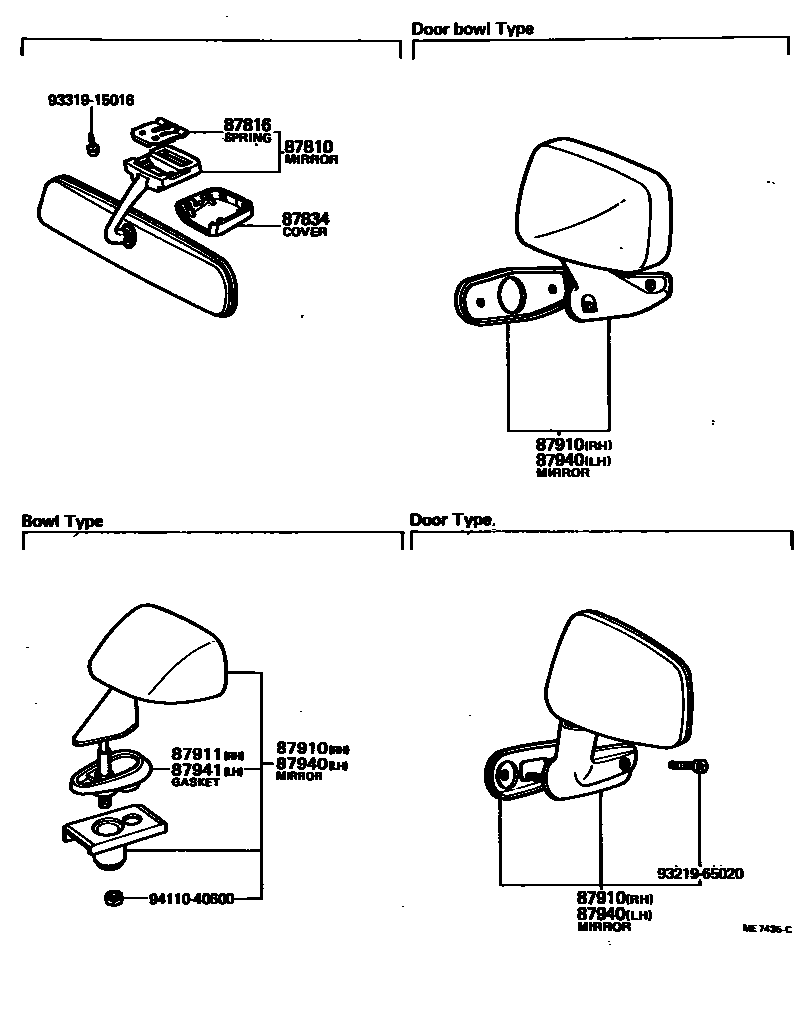

Toyota CORONA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
NON GLARE TYPE,GRAY,MURAKAMI,GRAY,TRIM2#
NON GLARE TYPE,GRAY,MURAKAMI,IVORY,TRIM2#
GRAY,MURAKAMI,GRAY,TRIM2#
IVORY,MURAKAMI,IVORY,TRIM2#,3#
NON GLARE TYPE,GRAY,IKI,GRAY,TRIM2#
NON GLARE TYPE,IVORY,IKI,IVORY,TRIM2#,3#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,MURAKAMI,IVORY,TRIM2#,3#
BEIGE,MURAKAMI,BEIGE,TRIM4#
IVORY,MURAKAMI,IVORY,TRIM2#,3#,4#
main87834-20080-15iRT13#,TT132..GEN,PHL; TT132..EUR; TT133..SED..LHD;RT132,TT132..LHD..GEN197910-198008
BEIGE,IKI,BEIGE,TRIM4#; BEIGE,MURAKAMI,BEIGE,TRIM4#
BEIGE,IKI,BEIGE,TRIM4#
IVORY,IKI,IVORY,TRIM2#,3#
87910MIRROR ASSY, OUTER REAR VIEW, RH
DOOR BOWL TYPE
DOOR TYPE,IKI
FENDER BOWL TYPE,MURAKAMI
BOWL TYPE,MURAKAMI
DOOR TYPE
DOOR TYPE
DOOR TYPE
DOOR TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
IKI
IKI
MURAKAMI
MURAKAMI
87940MIRROR ASSY, OUTER REAR VIEW, LH
DOOR TYPE,IKI
DOOR BOWL TYPE
FENDER BOWL TYPE,MURAKAMI
BOWL TYPE,MURAKAMI
DOOR TYPE
DOOR TYPE
REMOTE-CONTROL TYPE
DOOR TYPE
DOOR TYPE
REMOTE-CONTROL TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
IKI
IKI
MURAKAMI
MURAKAMI
9321965020
main93219-65020
9331915016
main93319-15016
9411040600
main94110-40600
10 parts on this diagram · 2 diagrams in section
MIRROR for Toyota CORONA
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, GASKET, OUTER REAR VIEW MIRROR, RH.
