Toyota CORONA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
NON GLARE TYPE
NON GLARE TYPE
NON GLARE TYPE
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
NON GLARE TYPE
87829HOLDER, INNER REAR VIEW MIRROR STAY
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
GRAY,GRAY,TRIM1#,2#
BEIGE,BEIGE,TRIM4#
87910MIRROR ASSY, OUTER REAR VIEW, RH
DOOR TYPE,FLAT MIRROR
DOOR TYPE,FLAT MIRROR
DOOR TYPE,CONVEX MIRROR
DOOR TYPE,CONVEX MIRROR
DOOR TYPE,FLAT MIRROR
DOOR TYPE,FLAT MIRROR
FENDER THINNESS TYPE
FENDER SPORTS TYPE
87911GASKET, OUTER REAR VIEW MIRROR, RH
THINNESS TYPE
SPORTS TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
DOOR TYPE,CONVEX MIRROR
DOOR TYPE,CONVEX MIRROR
FENDER THINNESS TYPE
FENDER SPORTS TYPE
87941GASKET, OUTER REAR VIEW MIRROR, LH
THINNESS TYPE
SPORTS TYPE
9323965025
main93239-65025
9331915016
main93319-15016
9411040600
main94110-40600
9452400500
main94524-00500

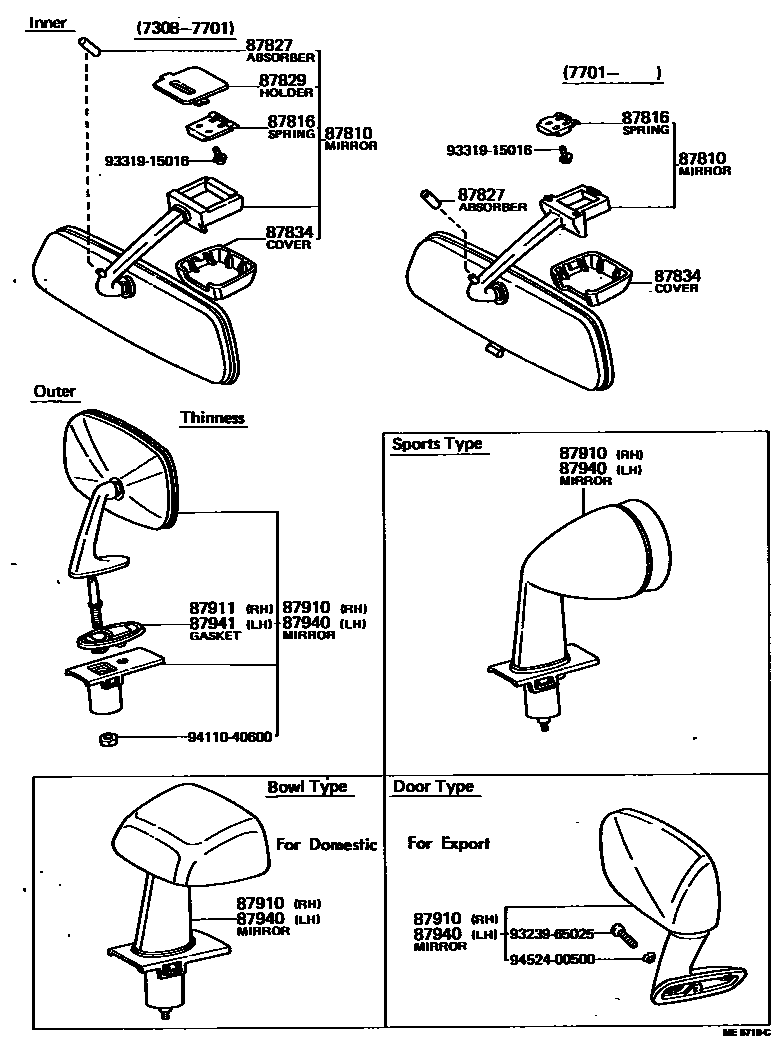

13 parts on this diagram · 1 diagram in section
MIRROR for Toyota CORONA
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, HOLDER, INNER REAR VIEW MIRROR STAY, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
