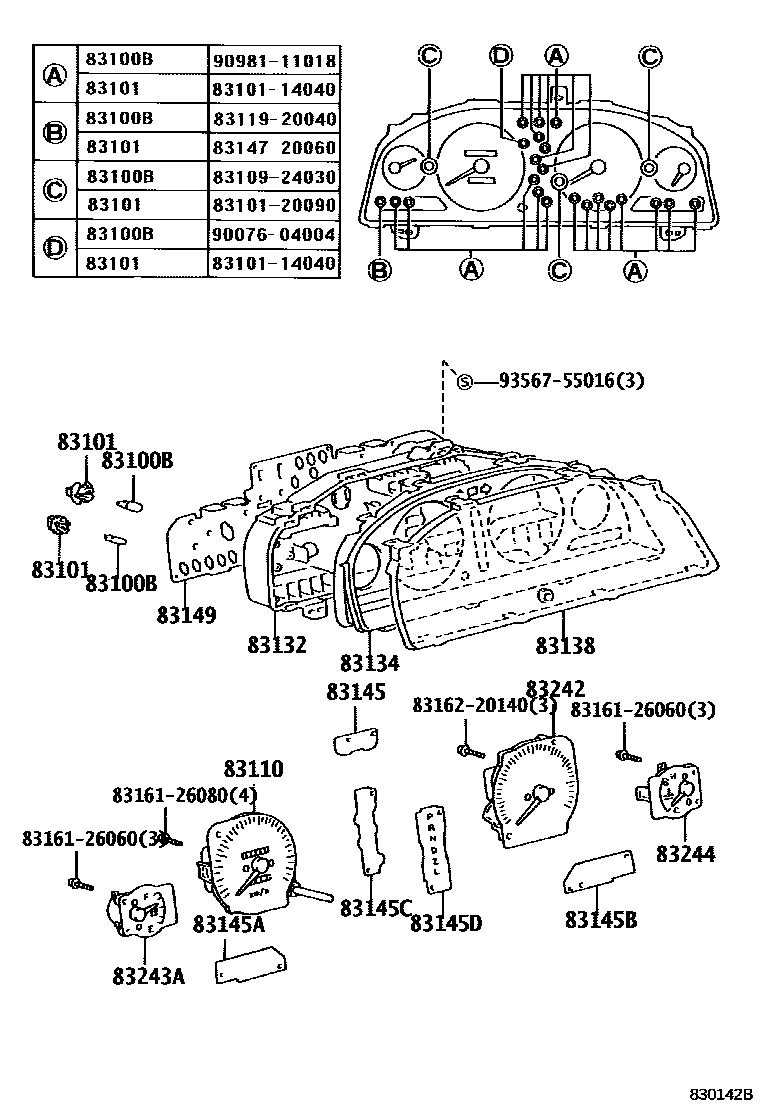

Toyota CORONA — METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP)
12V 3.0W
12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
12V3.0W,W(GREEN CAP),TYPE D:REFER TO ILLUSTRATION
14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION
12V3.4W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
14V3.0W,W(GREEN CAP)
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 1.4W
12V 3.4W W/GREEN CAP
12V 3.0W
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83145CLENS, METER, NO.4
83145DLENS, METER, NO.5
83149PLATE, METER CIRCUIT
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
8316126060CASE, COMBINATION METER MIRROR, NO.1
main83161-26060
8316126080CASE, COMBINATION METER MIRROR, NO.1
main83161-26080
8316220140CASE, COMBINATION METER MIRROR, NO.2
main83162-20140
9356755016
main93567-55016
19 parts on this diagram · 3 diagrams in section
METER for Toyota CORONA
This section contains 27 genuine Toyota parts for the METER system of the Toyota CORONA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, CASE, COMBINATION METER.
