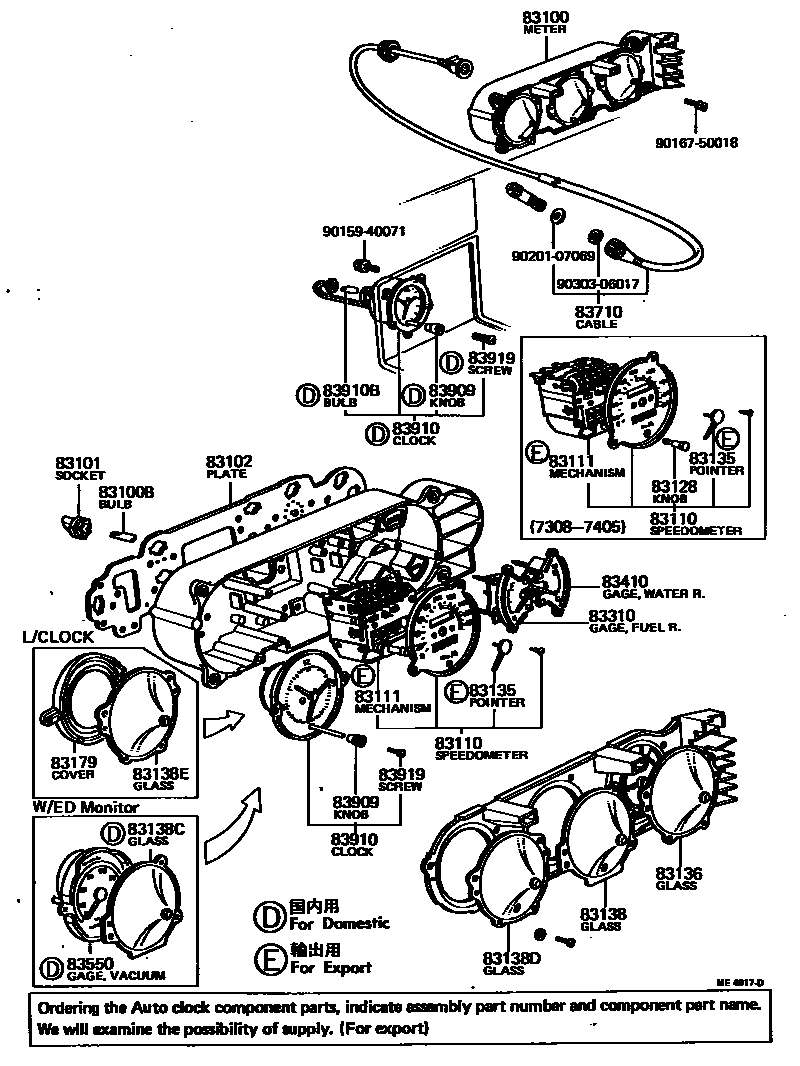

Toyota CORONA — METER
83100METER ASSY, COMBINATION
KM,L/CLOCK
KM,L/CLOCK
main83100-20242iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197701-197808
KM,L/CLOCK
main83100-20250iRT102..RHD..MTM..DLX;RT102..RHD..3FC..EUG;RT104..RHD..(ARL,EUR);RT102,118..RHD..STD..(ARL,EUR); RT114..RHD..4F;RT114..RHD..3FC..GEN;RT100,112,116,117,118..RHD197308-197605
KM,W/CLOCK
KM,W/CLOCK
KM,W/CLOCK
MILE,L/CLOCK
MILE,L/CLOCK
main83100-20262iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197701-197707
MILE,L/CLOCK
main83100-20263iRT104..RHD..3FC..STD;RT100,116,118..RHD..STD;RT104..RHD..4F..STD..(EUR,GEN)197707-197808
MILE & KM
MILE,W/CLOCK
MILE,W/CLOCK
MILE,W/CLOCK
MILE & KM,W/CLOCK
KM,L/CLOCK
KM,L/CLOCK
KM,L/CLOCK
KM,W/CLOCK
KM,W/CLOCK
KM,W/CLOCK
MILE,L/CLOCK
MILE,L/CLOCK
MILE,L/CLOCK
MILE & KM,L/CLOCK
MILE,W/CLOCK
main83100-20311iRT100,11#..LHD;RT104..LHD..4F..EUG;RT104..LHD..4F..GEN;RT104..LHD..(3FC,5F)197605-197701
MILE,W/CLOCK
MILE,W/CLOCK
MILE & KM,W/CLOCK
KM
KM
KM
KM
KM,W/CLOCK
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83102-20120iRT104..3FC..SA;RT104..RHD..(ARL,EUR,GEN);RT100,102,112,114,116,117,118..RHD197308-197701
83110SPEEDOMETER ASSY
KM
MILE
MILE & KM
KM
KM
MILE
83111MECHANISM, SPEEDOMETER
KM
KM
MILE
MILE
MILE & KM
83128KNOB, TRIP COUNTER
83135POINTER, SPEEDOMETER
83136GLASS, GAGE METER
L/HOLE,BIG
SMALL
83138GLASS, SPEEDOMETER
83138CGLASS, ED MONITOR
83138DGLASS, CLOCK
W/HOLE
SMALL
83138EGLASS, METER COVER
83179COVER, COMBINATION METER, HOLE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83550GAGE ASSY, ED MONITOR
83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1
L=1600
L=1500
L=1450
L=1700
L=1750
L=1750
L=1500
83909KNOB, CLOCK
83910CLOCK ASSY
83910BBULB, CLOCK INDICATOR
83919SCREW, CLOCK
9015940071
main90159-40071
9016750018
main90167-50018
9020107069
main90201-07069
9030306017
main90303-06017
26 parts on this diagram · 5 diagrams in section
METER for Toyota CORONA
This section contains 49 genuine Toyota parts for the METER system of the Toyota CORONA. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2.
