Toyota CORONA — FRONT MOULDING

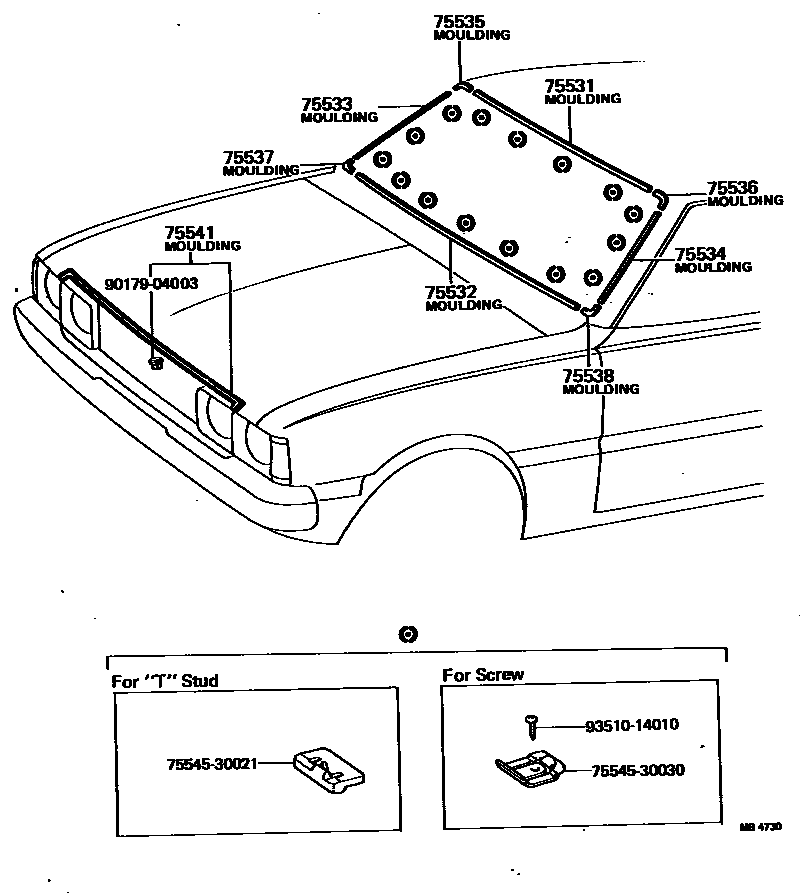

Parts diagram

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-20120i197308-197808

main75531-20130i197308-197905

75532MOULDING, WINDSHIELD, LOWER

main75535-20080i197308-197808

main75535-20090i197308-197905

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-20110i197308-197808

main75533-20120i197308-197905

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-20120i197308-197808

main75534-20130i197308-197905

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75536-20030i197308-197808

main75536-20040i197308-197905

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75537-20020i197308-197808

main75537-20030i197308-197905

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75538-20030i197308-197808

main75538-20040i197308-197905

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75539-20010i197308-197808

main75539-20020i197308-197905

75541MOULDING, HOOD, FRONT

main75050-29015i197308-197701

main75770-29035i197701-197905

7554530021SPACER, WINDSHIELD GLASS

main75545-30021

7554530030SPACER, WINDSHIELD GLASS

main75545-30030

9017904003

main90179-04003

9351014010

main93510-14010

13 parts on this diagram · 1 diagram in section

FRONT MOULDING for Toyota CORONA

This section contains 13 genuine Toyota parts for the FRONT MOULDING system of the Toyota CORONA. Key components include: MOULDING, WINDSHIELD, OUTER UPPER, MOULDING, WINDSHIELD, LOWER, MOULDING, WINDSHIELD, OUTSIDE RH, MOULDING, WINDSHIELD, OUTSIDE LH, MOULDING, WINDSHIELD CORNER, UPPER RH.
