Toyota CORONA — FRONT FENDER APRON & DASH PANEL

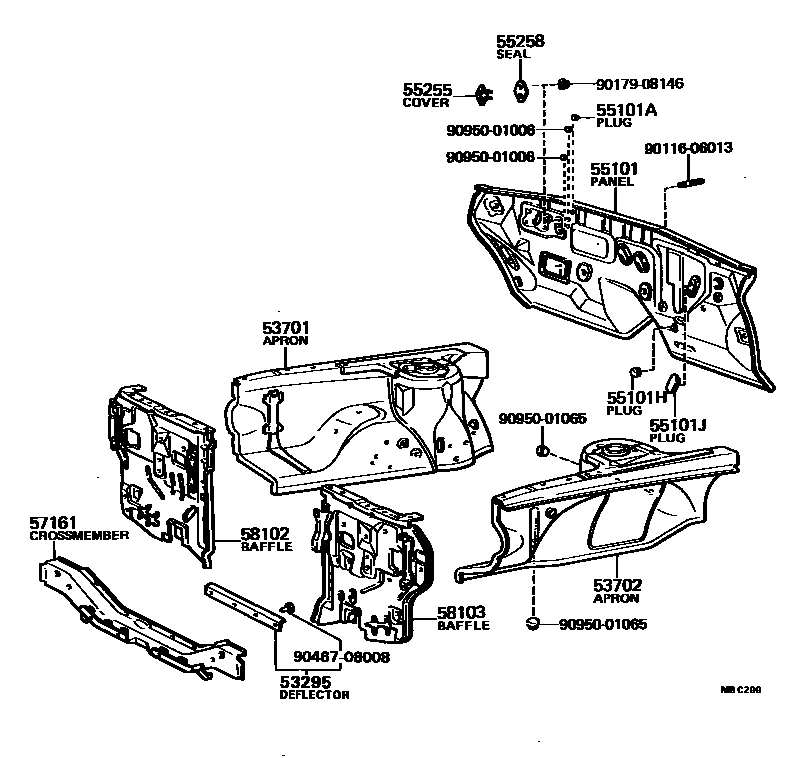

Parts diagram

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14021i198008-198301

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20310i197809-198112

main53701-20320i198108-198301

main53701-20350i197809-198301

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20360i197809-198301

main53702-20370i197908-198008

THAILAND SPEC

main53702-20381i198108-198301

main53702-20410i197809-198112

55101PANEL SUB-ASSY, DASH

main55101-20900i197809-198012

main55101-20903i197809-197905

main55101-20904i197809-197905

main55101-20907i197905-198008

main55101-20909i197905-198008

main55101-20913i198008-198112

main55101-20915i198008-198205

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01133i197809-198301

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01060i197809-198301

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01189i197809-198301

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-20020i197809-198012

main55255-22010i198012-198301

main55255-22020i197809-198112

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-20010i197809-198301

57161CROSSMEMBER, FRONT

main57104-20900i197809-198008

main57104-20901i197809-198008

W/URETHANE BUMPER

main57161-20902i198111-198301

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-20020i198008-198111

main53202-20030i197912-198008

main53202-20031i198012-198112

W/URETHANE BUMPER,*SAA

main53202-20040i197809-198008

main53202-20051i198111-198301

main53202-20060i198008-198301

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-20040i197809-198008

main53203-20050i197912-198008

main53203-20051i198012-198112

W/URETHANE BUMPER,*SAA

main53203-20071i198111-198301

main53203-20080i198008-198301

9011606013

main90116-06013

9017908146

main90179-08146

9046708008

main90467-08008

9095001006

main90950-01006

9095001065

main90950-01065

17 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota CORONA

This section contains 17 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CORONA. Key components include: DEFLECTOR, RADIATOR LOWER AIR, APRON SUB-ASSY, FRONT FENDER, RH, APRON SUB-ASSY, FRONT FENDER, LH, PANEL SUB-ASSY, DASH, PLUG, HOLE, NO.1(FOR DASH PANEL).
