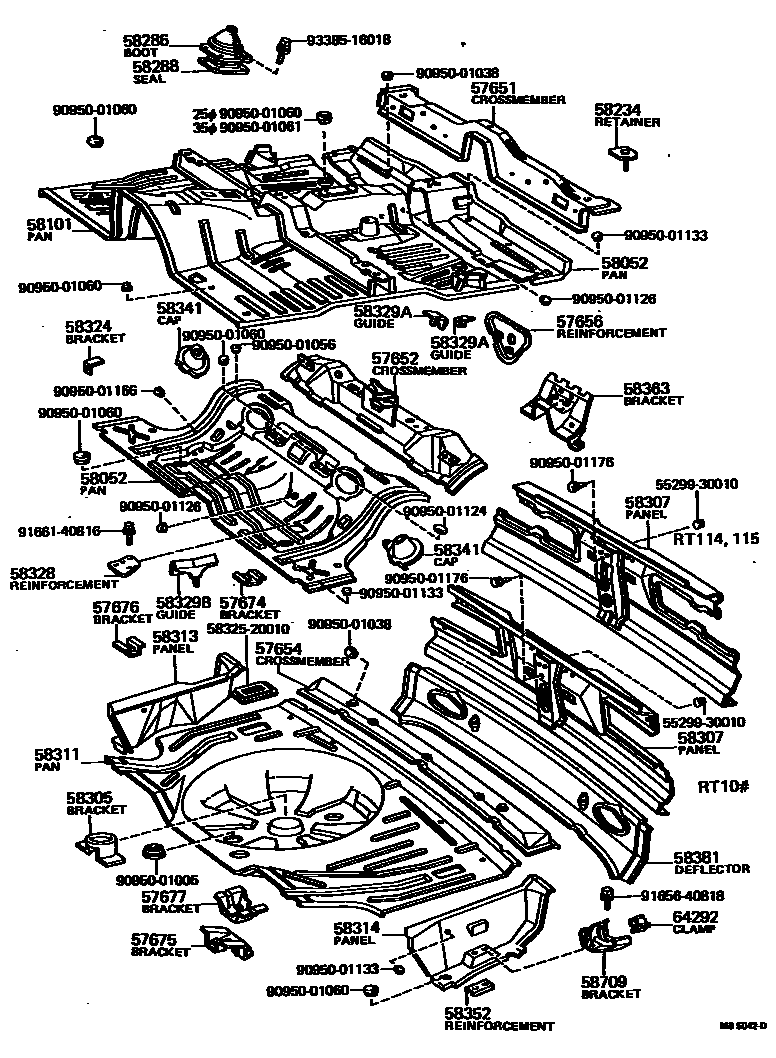

Toyota CORONA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57651CROSSMEMBER, REAR FLOOR, FRONT

main57407-21010iRT116,117,118197308-197905

main57651-20040iRT10#,110,112,114197308-197905

57652CROSSMEMBER, REAR FLOOR, NO.2

main58302-20080iRT10#,110,112,114197308-197905

57654MEMBER, REAR FLOOR CROSS, NO.4

main57607-91603iRT116,117,118197308-197905

sub57609-91255

main57654-20040iRT10#,110,112,114197308-197905

57656REINFORCEMENT, EXHAUST PIPE HANGER SUPPORT

main57658-20020iRT10#,110,112,114197308-197905

57674BRACKET, MUFFLER HANGER SUPPORT, NO.3

main57673-20020iRT10#,110,112,114197308-197905

57675BRACKET, MUFFLER HANGER SUPPORT, NO.1

main57675-20020iRT10#,110,112,114197308-197905

main57677-21010iRT116,117,118197308-197905

57676BRACKET, MUFFLER HANGER SUPPORT, NO.2

main57676-20020iRT10#,110,112,114197308-197509

main57676-20021iRT10#,110,114197509-197905

57677BRACKET, MUFFLER HANGER SUPPORT, NO.4

main57659-20020iRT10#,110,114,116,118197508-197905

58052PAN SUB-ASSY, CENTER FLOOR

main58202-21010iRT116,117,118197308-197701

main58202-21011iRT116,118197701-197905

main58211-20130iRT10#,110,112,114197308-197701

FRONT

main58211-20131iRT10#,114197701-197905

FRONT

main58212-20050iRT10#,110,112,114197308-197701

REAR

sub90950-01126

main58212-20051iRT10#,114197701-197905

REAR

58101PAN SUB-ASSY, FRONT FLOOR

main58101-20160iRT104..SA197308-197408

sub90950-01060

main58101-20161iRT104,118..EUR,SA197408-197509

main58101-20162iRT100,104,11#..LHD197509-197604

sub58851-20011

sub87212-20031

sub87212-20041

sub87212-20051

main58101-20163iRT100,104,11#..LHD197604-197610

main58101-20170iRT100..3H..STD;RT116..RHD..3H;RT100..RHD..3H..DLX197308-197509

sub90950-01060

main58101-20171iRT116..RHD..3H;RT100..RHD..STD;RT100..RHD..3H..DLX197509-197605

main58101-20172iRT100..3H;RT116..RHD..3H197701-197808

sub58111-20021

sub57207-20030

sub57208-20030

sub57451-20041

sub57455-20041

sub57456-20041

sub58173-20030

sub58207-20041

sub58208-20040

sub58223-20020

sub58265-20010

sub58273-20041

sub90297-03001

sub90461-07982

main58101-20200iRT104,118..ARL197308-197604

main58101-20201iRT104,118..ARL197604-197701

main58101-20202iRT104,118..ARL197701-197905

sub58111-20014

sub57207-20030

sub57258-20051

sub57451-20041

sub57455-20041

sub57456-20041

sub58103-20030

sub58104-20032

sub58171-20030

sub58223-20020

sub58261-20172

sub58265-20010

sub90461-07982

main58101-20242iRT100..LHD;RT100..RHD..4F;RT102,104,116,118;RT100..RHD..3H..DLX197701-197905

sub58111-20014

sub57207-20030

sub57208-20030

sub57451-20041

sub57455-20041

sub57456-20041

sub58103-20030

sub58104-20032

sub58171-20030

sub58223-20020

sub58261-20172

sub58265-20010

sub90461-07982

main58101-20260iRT116..RHD..3H;RT100..RHD..STD;RT100..RHD..3H..DLX197605-197701

58234RETAINER, CENTER BEARING

main58234-20010×2iRT102,104..EUR197311-197509

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-20030iRT110,114,118..4F;RT104..MTM..(EUR,GEN,SA)197509-197701

FOR W/CONSOLE

main58280-20040iRT114..4F197701-197808

58288SEAL, SHIFT LEVER BOOT

main58288-22020iRT10#,11#..4F,5F197308-197905

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iRT10#,110,112,114197308-197905

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20160iRT110,112,114197308-197701

main58307-20190iRT10#197308-197701

main58307-20191iRT10#197701-197708

main58307-20230iRT10#197708-197905

main58307-95505iRT114197701-197808

58311PAN, REAR FLOOR

main58311-20090iRT10#,110,112,114197308-197905

main58311-21010iRT116,117,118197308-197504

FRONT

main58311-21011iRT116,117,118197504-197701

FRONT

main58311-21012iRT116,118197701-197905

FRONT,L/REAR SEAT BELT

main58311-21020iRT118..LHD..EUG197603-197701

FOR WEST GERMANY SPEC.

main58311-21021iRT118..EUR197701-197808

FRONT,W/REAR SEAT BELT

main58312-21010iRT116,117,118197308-197608

REAR

main58312-21011iRT116,118197608-197701

REAR

main58312-21012iRT116,118197701-197905

REAR

58313PANEL, REAR FLOOR SIDE, RH

main58302-21010iRT116,117,118197308-197905

main58313-20030iRT10#,110,112,114197308-197905

58314PANEL, REAR FLOOR SIDE, LH

main58314-20030iRT10#,110,112,114197308-197905

main58314-21010iRT116,117,118197308-197905

58324BRACKET, FLEXIBLE HOSE

main58326-20020iRT10#,114..ARL,GEN,PHL,SA197701-197905

main58326-21010iRT116,117,118197308-197905

58328REINFORCEMENT, SAFETY BELT ANCHORAGE

main57805-20010iRT102,104..EUR197501-197701

FOR WEST GERMANY,RH

main57815-20010iRT102,104..EUR197411-197501

FOR WEST GERMANY,RH

main57815-21010×2iRT117,118..EUR197501-197808

SIDE

main57816-20010iRT102,104..EUR197411-197701

FOR WEST GERMANY,LH

main58361-91604×2iRT116,117,118197308-197701

CENTER

58329AGUIDE, WIRE, NO.2

main58264-20040iRT10#,110,112,114197308-197905

LH.

main58279-20020iRT10#,110,112,114197308-197905

RH.

58329BGUIDE, WIRE, NO.3

main58023-20010iRT10#,110,112,114197308-197603

RH.

main58023-21010iRT116,118197609-197905

RH.

main58024-20030iRT10#,110,114197602-197603

LH.

main58024-20031×2iRT10#,110,114197603-197905

main58024-21010iRT116,117,118197408-197609

LH.

58341CAP, REAR SHOCK ABSORBER

main58303-20020iRT10#,110,112,114197408-197905

LH.

main58341-20030iRT10#,110,112,114197308-197701

RH.

main58342-20030iRT10#,110,112,114197308-197408

LH.

58352REINFORCEMENT, JACK CLAMP

main58352-20030iRT10#,110,112,114197308-197905

58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER

main58304-20040iRT10#,110,112,114197308-197408

main58304-20041iRT10#,110,112,114197408-197701

main58304-20042iRT10#,114197701-197905

58381DEFLECTOR, REAR BUMPER STONE

main58381-20020iRT10#,110,112,114197308-197905

58709BRACKET SUB-ASSY, JACK CLAMP

main58794-20030iRT10#,110,112,114197308-197905

64292CLAMP, JACK HANDLE

main58788-13010iRT118..EUR197701-197808

main64292-12010×2iRT10#,110,112,114197308-197905

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

5832520010BOARD, REAR FLOOR, FRONT

main58325-20010

9095001005

main90950-01005

9095001038

main90950-01038

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001124

main90950-01124

9095001126

main90950-01126

9095001133

main90950-01133

9095001166

main90950-01166

9095001176

main90950-01176

9165640818

main91656-40818

9166140816

main91661-40816

9338516018

main93385-16018

43 parts on this diagram · 2 diagrams in section
