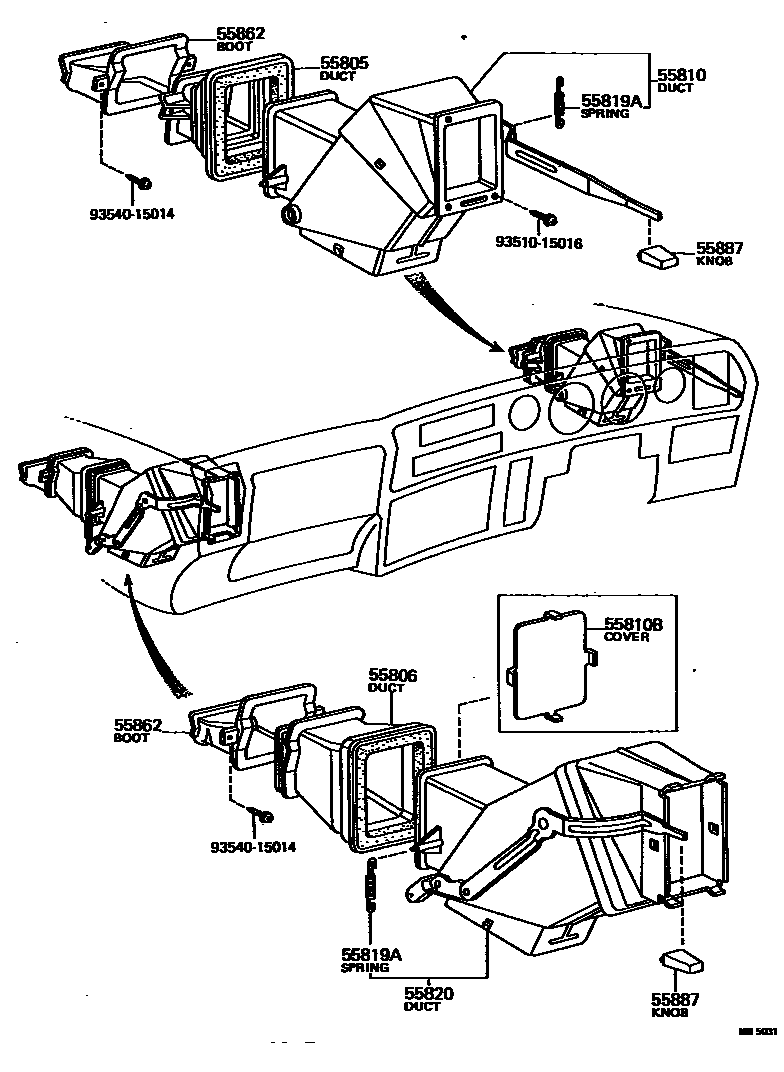

Toyota CORONA — COWL VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55803-20030i197308-197905

main55804-20040i197308-197701

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55803-20040i197701-197905

main55804-20030i197308-197905

55810DUCT ASSY, SIDE VENTILATOR, RH

main55081-20020i197701-197905

main55084-20020i197701-197905

FOR W/COOLER

main55810-20050i197308-197701

main55820-20050i197308-197701

main55823-20051i197701-197905

55810BCOVER, SIDE VENTILATOR

main55828-20040×2i197308-197701

FOR W/COOLER

main55877-20020×2i197701-197905

FOR W/COOLER

55819ASPRING, TENSION(FOR SIDE VENTILATOR CONTROL ROD)

main90506-07471×2i197308-197701

55820DUCT ASSY, SIDE VENTILATOR, LH

main55081-20010i197701-197905

main55084-20010i197701-197905

FOR W/COOLER

main55810-20060i197308-197701

main55820-20040i197308-197701

main55823-20061i197701-197905

55862BOOT, SIDE VENTILATOR

main55863-20010×2i197308-197905

55887KNOB, SIDE VENTILATOR BUTTERFLY CONTROL

main55887-20020×2i197308-197701

9351015016

main93510-15016

9354015014

main93540-15014

10 parts on this diagram · 3 diagrams in section

COWL VENTILATOR for Toyota CORONA

This section contains 11 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CORONA. Key components include: DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH, DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH, DUCT ASSY, SIDE VENTILATOR, RH, COVER, SIDE VENTILATOR, SPRING, TENSION(FOR SIDE VENTILATOR CONTROL ROD).
