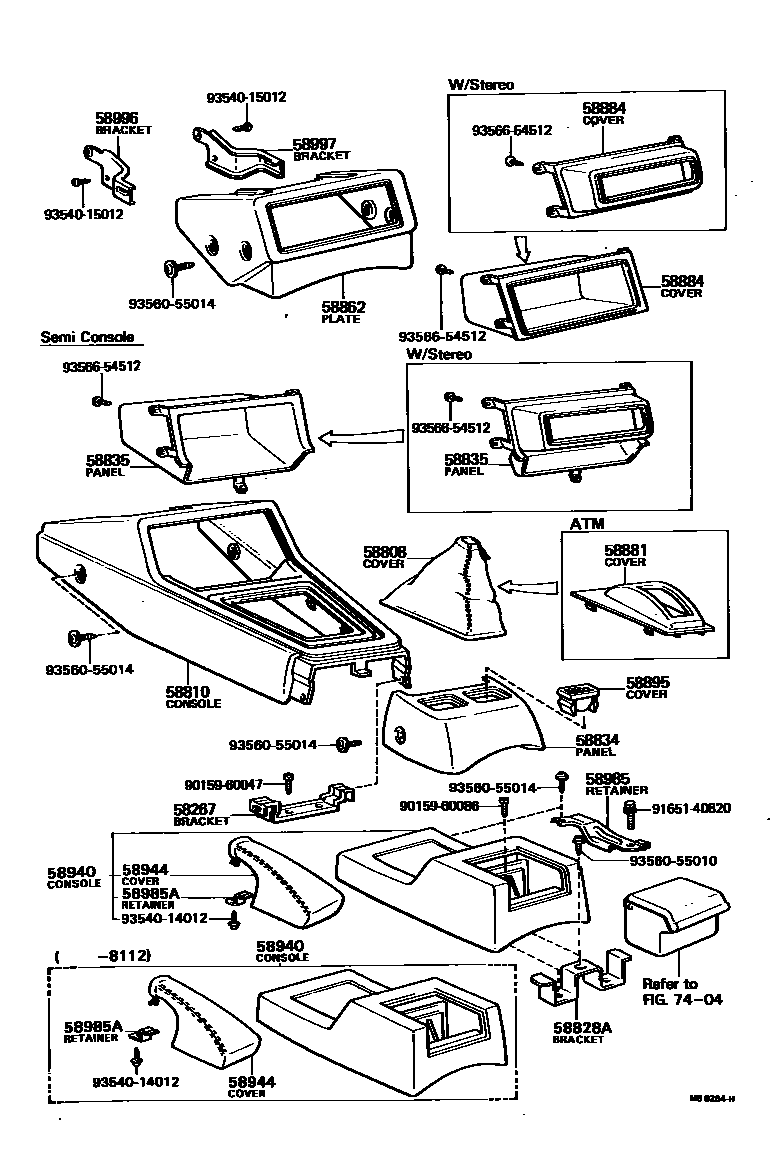

Toyota CORONA — CONSOLE BOX & BRACKET

0001 1 0002 1

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58996-20010iRT13#..LNK;TT13#,XT130198008-198301

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-20010-01iRT13#,TT13#..MTM..(DLX,GL)197809-198008

BLACK,BLACK,TRIM2#

main58840-20010-02iRT13#..MTM..LNK198008-198010

DARK WINE,RED/MAROON,TRIM3#

main58840-20010-05iRT13#,TT13#..MTM..(DLX,GL)197809-198008

BEIGE,BEIGE,TRIM4#

main58840-20010-06iTT13#;RT13#..MTM..LNK198008-198010

LIGHT BROWN,BROWN,TRIM4#

main58840-20011-01iTT133;TT132..RHD;RT13#..MTM..LNK;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198010-198301

BLACK,BLACK,TRIM2#

main58840-20011-02iRT132,133..5F198010-198301

DARK WINE,RED/MAROON,TRIM3#

main58840-20011-06iTT133;TT132..RHD;RT13#..MTM..LNK;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198010-198301

LIGHT BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-20130-01iRT13#,TT13#,XT130..DLX,STD197809-198008

BLACK,BLACK,TRIM2#

main58811-20130-02iRT132..ARL197908-198008

DARK WINE,RED/MAROON,TRIM3#

main58811-20130-05iRT132..ARL197908-198008

BEIGE,BEIGE,TRIM4#

main58811-20140-01iXT130;TT132..(LB,SED)..5F..GEN197809-198008

BLACK,BLACK,TRIM2#

main58811-20140-02iXT130;TT132..(LB,SED)..5F..GEN197809-198008

FULL CONSOLE,DARK WINE,RED/MAROON,TRIM3#

main58811-20140-05iXT130;TT132..(LB,SED)..5F..GEN197809-198008

BEIGE,BEIGE,TRIM4#

main58811-20150-01iTT13#;RT13#..DLX,GL198008-198301

BLACK,BLACK,TRIM2#

main58811-20150-02iRT133,XT130..STD..LNK198101-198301

DARK WINE,RED/MAROON,TRIM3#

main58811-20150-06iRT133,XT130..STD198101-198301

LIGHT BROWN,BROWN,TRIM4#

58828ABRACKET, CONSOLE BOX, LOWER

main58828-20020iRT13#198112-198301

58834PANEL, CONSOLE END

main58923-20010-01iRT13#..LNK;TT13#,XT130198008-198301

BLACK,BLACK,TRIM2#

main58923-20010-02iTT13#,XT130..HT,LB,SED198008-198301

DARK WINE,RED/MAROON,TRIM3#

main58923-20010-05iRT13#,TT13#,XT130197809-198008

BEIGE,BEIGE,TRIM4#

main58923-20010-06iTT13#;RT13#..LNK198008-198301

LIGHT BROWN,BROWN,TRIM4#

58835PANEL, CONSOLE, UPPER

main58821-20010iXT130198008-198101

main58821-20020iXT130198008-198101

W/STEREO

main58821-20030iXT130;TT132..(LB,SED)..5F..GEN197809-198008

W/O STEREO

main58821-20040iXT130;TT132..(LB,SED)..5F..GEN197908-198008

W/STEREO,FULL CONSOLE

main58821-20050-01iTT13#;RT130..LNK198008-198112

W/AUTO REVERSE STEREO,BLACK,BLACK,TRIM2#

main58821-20050-02iRT132,133..ARL198008-198301

W/AUTO REVERSE STEREO,D-WINE,RED/MAROON,TRIM3#

main58821-20050-06iTT13#;RT130..LNK198008-198112

W/AUTO REVERSE STEREO,D-BROWN,BROWN,TRIM4#

main58821-20060-01iXT130198101-198301

BLACK,BLACK,TRIM2#

main58821-20060-02iTT13#..HT,LB,SED198008-198112

W/O STEREO,DARK WINE,RED/MAROON,TRIM3#

main58821-20060-06iRT132,133..ARL198008

DARK BROWN,BROWN,TRIM4#

main58821-20070-01iRT133,XT130..STD198101-198301

W/STEREO,BLACK,BLACK,TRIM2#

main58821-20070-02iRT130,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198112

W/NON REVERSE STEREO,D-WINE,RED/MAROON,TRIM3#

main58821-20070-06iRT133,XT130..STD198101-198301

W/STEREO,DARK BROWN,BROWN,TRIM4#

58862PLATE, CONSOLE FINISH

main55423-20060-01iRT130,132,TT13#..4F..STD197809-198205

BLACK,BLACK,TRIM2#

main55423-20060-02iRT130,132,TT13#..SED..4F..STD197809-198205

DARK WINE,RED/MAROON,TRIM3#

main55423-20060-05iRT13#,TT13#..4F..STD197809-198008

BEIGE,BEIGE,TRIM4#

main55423-20060-06iRT130,132,TT13#..4F..STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

58881COVER, SHIFTING HOLE

main58843-20020iRT132,TT132,XT130..3FC197809-198006

main58843-20030iTT132..3FC..GL197809-198008

main58843-20040-01iRT132,133,TT132..ATM198008-198301

BLACK,BLACK,TRIM2#

main58843-20040-02iRT132,133,TT132..ATM..LNK198008-198301

DARK WINE,RED/MAROON,TRIM3#

main58843-20040-06iRT132,133,TT132..ATM198008-198301

DARK BROWN,BROWN,TRIM4#

58884COVER, STEREO OPENING

main55521-20060iRT13#,TT133..STD;TT132..RHD..4F..STD;TT132..LHD..STD..LEF197809-198008

W/STEREO

main55521-20070iRT130,132,TT13#..4F..STD198008-198205

main55521-20080-01iRT132,TT13#..STD198008-198205

W/AUTO REVERSE STEREO,BLACK,BLACK,TRIM2#

main55521-20080-02iRT132,TT13#..STD198008-198205

W/AUTO REVERSE STEREO,D-WINE,RED/MAROON,TRIM3#

main55521-20080-06iRT132,TT13#..STD198008-198205

W/AUTO REVERSE STEREO,D-BROWN,BROWN,TRIM4#

58895COVER, SWITCH HOLE, NO.1

main55539-14020-01×2iRT132,133,TT132..LB..(ARL,EUR)198008-198301

BLACK

main58896-20011×2iRT133,XT130..STD198008-198301

58940CONSOLE ASSY, REAR

main58901-20010-01iTT132..(LB,SED)..5F..GEN197908-198008

FULL CONSOLE,BLACK,BLACK,TRIM2#

main58901-20010-02iTT132..(LB,SED)..5F..GEN197908-198008

FULL CONSOLE,DARK WINE,RED/MAROON,TRIM3#

main58901-20010-05iTT132..(LB,SED)..5F..GEN197908-198008

FULL CONSOLE,BEIGE,BEIGE,TRIM4#

main58901-20020-01iRT13#,TT13#197809-198112

BLACK,BLACK,TRIM2#

sub93560-55014

main58901-20020-02iRT13#,TT13#..HT,LB,SED197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub93560-55014

main58901-20020-05iRT13#,TT13#197809-198008

BEIGE,BEIGE,TRIM4#

sub93560-55014

main58901-20020-06iRT13#,TT13#198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub93560-55014

main58901-20021-01iRT13#198112-198301

BLACK,BLACK,TRIM2#

main58901-20021-02iRT13#..SED198112-198301

DARK WINE,RED/MAROON,TRIM3#

main58901-20021-06iRT13#198112-198301

LIGHT BROWN,BROWN,TRIM4#

main58901-20060-01iRT130,TT13#..DLX..LNK..(GEN,PHL)198008-198112

FULL CONSOLE,BLACK,BLACK,TRIM2#

main58901-20060-02iRT130,TT13#..DLX..LNK..(GEN,PHL)198008-198112

FULL CONSOLE,DARK WINE,RED/MAROON,TRIM3#

main58901-20060-06iRT130,TT13#..DLX..LNK..(GEN,PHL)198008-198112

FULL CONSOLE,LIGHT BROWN,BROWN,TRIM4#

58944COVER, PARKING BRAKE HOLE

main58941-20020-01iRT13#,TT13#197809-198301

BLACK,BLACK,TRIM2#

main58941-20020-02iRT13#,TT13#..HT,LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main58941-20020-05iRT13#,TT13#197809-198008

BEIGE,BEIGE,TRIM4#

main58941-20020-06iRT13#,TT13#198008-198301

LIGHT BROWN,BROWN,TRIM4#

58985RETAINER, CONSOLE BOX

main58985-20010iRT13#,TT132197809-197908

main58985-20011iRT133..GL;RT130,132,TT13#197908-198301

58985ARETAINER, CONSOLE BOX, NO.2

main58987-20030×2iRT13#,TT13#,XT130197809-198301

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20020iRT130,132,TT13#..4F..STD197809-198205

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20030iRT130,132,TT13#..4F..STD197809-198205

7404

9015960047

main90159-60047

9015960086

main90159-60086

9165140820

main91651-40820

9354014012

main93540-14012

9354015012

main93540-15012

9356055010

main93560-55010

9356055014

main93560-55014

9356654512

main93566-54512

25 parts on this diagram · 2 diagrams in section
