Toyota CORONA — CLUTCH & RELEASE FORK

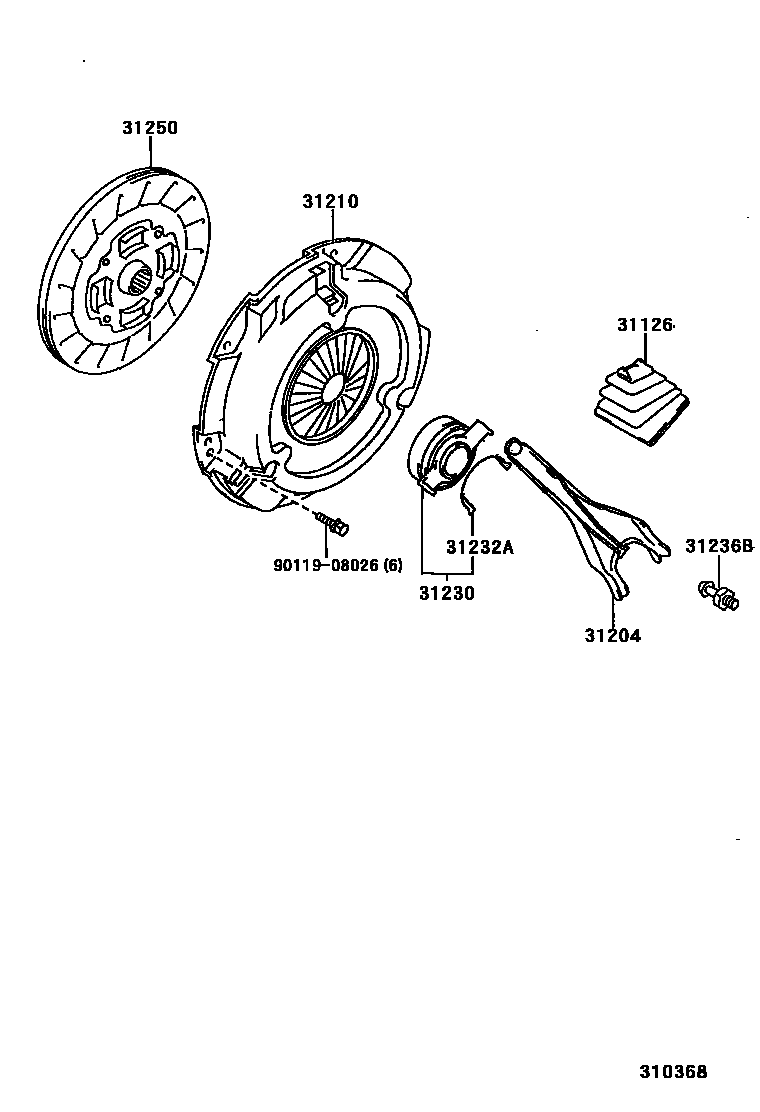

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199710-200007

main31126-32010i199710

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i199710-200007

main31204-20100i199710

31210COVER ASSY, CLUTCH

main31210-05011i199710-199812

main31210-05012i199812-199903

main31210-05013i199903-200007

main31210-05021i199710-199812

main31210-05022i199812-199903

main31210-05023i199903

main31210-05030i199710-199812

main31210-05031i199812-199903

main31210-05032i199903-200007

31230BEARING ASSY, CLUTCH RELEASE

main31230-05010i199710-199911

main31230-05011i199911-200005

main31230-05012i200005-200007

main31230-05020i199710-199911

main31230-05021i199911

31232ACLIP, RELEASE BEARING HUB

main31232-05010i200005

main31232-05011i200005-200007

31236BSUPPORT, RELEASE FORK

main31236-12020i199710-200007

main31236-32010i199710

31250DISC ASSY, CLUTCH

main31250-05011i199710-199812

main31250-05012i199812-200007

main31250-05020i199710-199812

main31250-05021i199812-200007

main31250-05040i199710-199812

main31250-05041i199812-200007

main31250-05050i200007-200209

main31250-05090i200209-200301

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota CORONA

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CORONA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
