Toyota CORONA — CLUTCH & RELEASE FORK

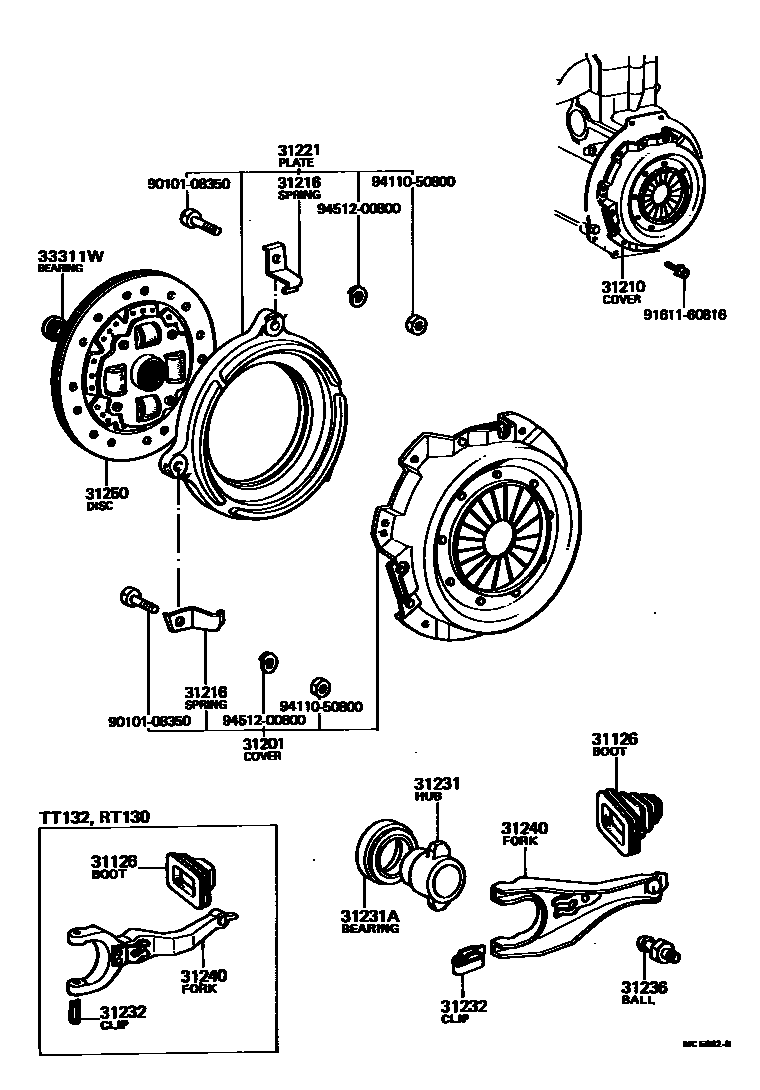

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-20040i197809-198008

main31126-20050i197809-198112

main31126-20060i197809-198301

main31126-20070i198008-198108

main31126-22040i197908-198008

31201COVER SUB-ASSY, CLUTCH

main31201-19047i197809-197907

main31201-19048i197907-198008

main31201-19065i197908-197911

main31201-19075i198008-198112

main31201-29057i197809-197907

main31201-29058i197907-197911

main31201-39045i197809-197907

main31201-39046i197907-198003

main31201-39047i198003-198301

31210COVER ASSY, CLUTCH

main31210-14070i197908-198112

main31210-20081i197809-197907

main31210-20082i197907-197911

main31210-20083i197911-198112

main31210-23010i197809-197907

main31210-23011i197907-198008

main31210-23012i198008-198112

main31210-30140i197809-198003

main31210-30142i198003-198205

main31210-30172i198108-198301

31216SPRING, CLUTCH RETRACTING

main31216-20020×3i197809-198112

main31216-30010×3i197809-198301

31221PLATE, CLUTCH PRESSURE

main31221-19015i197908-198112

main31221-19025i197809-198112

main31221-39025i197809-198205

main31221-39115i198108-198301

31231HUB, CLUTCH RELEASE BEARING

main31231-14031i197908-198008

main31231-20070i197809-197903

main31231-20071i197903-198008

main31231-20081i198008-198108

main31231-20090i198008-198108

main31231-27020i198102-198108

main31231-30060i197809-197810

main31231-30061i197810-198103

main31231-30070i197809-197903

main31231-30071i198008-198102

main31231-30080i198103-198112

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001i197809-198002

main90363-40008i198002-198008

main90363-40015i198008-198012

main90363-40022i198012-198301

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010×2i198102-198108

main31232-22010×2i197809-198008

main31232-30010×2i197809-198008

main31232-30020×2i197809-198112

31236BALL, RELEASE FORK

main31236-20020i197809-198107

main31236-30030i197809-198112

main31236-30060i198107-198301

31240FORK ASSY, CLUTCH RELEASE

main31204-20030i197809-197902

main31204-20031i197902-198103

main31204-20040i197809-198008

main31204-20050i197809-198008

main31204-20070i198008-198301

main31204-20080i198108-198112

main31204-20090i198008-198108

main31204-22030i197908-198008

main31204-25020i198103-198112

main31204-27020i198102-198108

31250DISC ASSY, CLUTCH

main31250-12081i198106-198112

main31250-14090i197911-198112

main31250-20023i197809-197910

main31250-20024i197910-198008

main31250-20060i197908-197911

main31250-22042i197809-197812

main31250-22043i197812-197910

main31250-22044i197910-198301

main31250-22090i198008-198106

main31250-22091i198106-198112

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198011-198301

main90363-12003i198011-198112

main97123-06001i197809-198011

6001VV

main97143-06201i197809-198011

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota CORONA

This section contains 18 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CORONA. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, COVER ASSY, CLUTCH, SPRING, CLUTCH RETRACTING, PLATE, CLUTCH PRESSURE.
