Toyota CORONA — ARMREST & VISOR

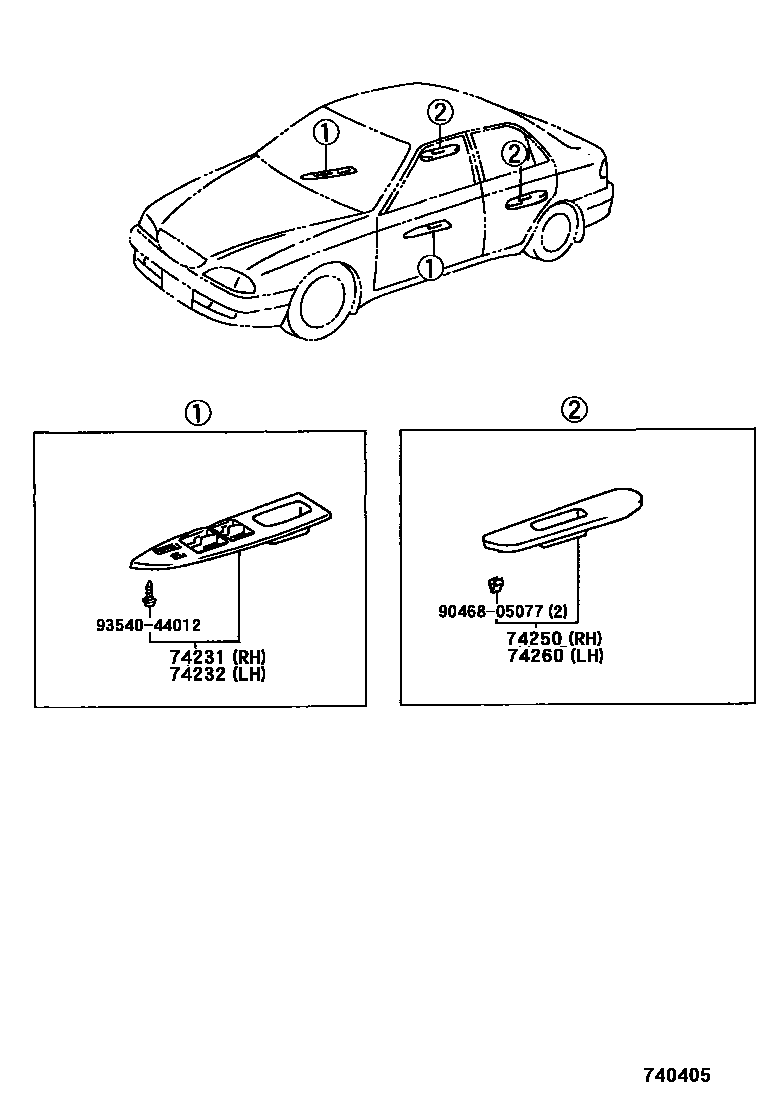

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-05030-B0i199710-200007
W(POWER WINDOW---FRONT ONLY),MD. GRAY,TRIM1#
main74231-05030-B1i200007
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74231-05030-G0i199710
W(POWER WINDOW---FRONT ONLY),SLATE GREEN,TRIM6#
main74231-05050-B0i199710-200007
W(POWER WINDOW---FRONT ONLY),MD. GRAY,TRIM1#
main74231-05050-B1i200007
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74231-05050-G0i199710
W(POWER WINDOW---FRONT ONLY),SLATE GREEN,TRIM6#
main74231-05060-B0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#
main74231-05060-G0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74231-05070-B0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#
main74231-05070-G0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74231-05080-B0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74231-05080-G0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74231-05090-B0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74231-05090-G0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74231-05100-B0i200107
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74231-05100-G0i200107
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74231-05110-B0i200107
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74231-05110-G0i200107
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-05050-B0i199710-200007
W(POWER WINDOW---FRONT ONLY),MD. GRAY,TRIM1#
main74232-05050-B1i200007
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74232-05050-G0i199710
W(POWER WINDOW---FRONT ONLY),SLATE GREEN,TRIM6#
main74232-05070-B0i199710-200007
W(POWER WINDOW---FRONT ONLY),MD. GRAY,TRIM1#
main74232-05070-B1i200007
W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#
main74232-05070-G0i199710
W(POWER WINDOW---FRONT ONLY),SLATE GREEN,TRIM6#
main74232-05080-B0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#
main74232-05080-G0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74232-05090-B0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),MD. GRAY,TRIM1#
main74232-05090-G0i199710-200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74232-05100-B0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74232-05100-G0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74232-05110-B0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74232-05110-G0i200007
WOOD GRAIN,W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74232-05120-B0i200107
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74232-05120-G0i200107
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
main74232-05130-B0i200107
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74232-05130-G0i200107
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
74250ARMREST ASSY, REAR RH
main74250-05020-B0i199710-200007
MD.GRAY,TRIM1#
main74250-05020-B1i200007
DK.GRAY,TRIM1#
main74250-05020-G0i199710
SLATE GREEN,TRIM6#
main74250-05030-B0i199710-200007
W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM1#
main74250-05030-B1i200007
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74250-05030-G0i199710
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
74260ARMREST ASSY, REAR LH
main74260-05020-B0i199710-200007
MD.GRAY,TRIM1#
main74260-05020-B1i200007
DK.GRAY,TRIM1#
main74260-05020-G0i199710
SLATE GREEN,TRIM6#
main74260-05030-B0i199710-200007
W(POWER WINDOW---FRONT & REAR),MD.GRAY,TRIM1#
main74260-05030-B1i200007
W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM1#
main74260-05030-G0i199710
W(POWER WINDOW---FRONT & REAR),SLATE GREEN,TRIM6#
9046805077
main90468-05077
9354044012
main93540-44012

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CORONA

This section contains 16 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORONA. Key components include: COVER, VISOR HOLDER HOLE, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH, ARMREST ASSY, REAR LH.
