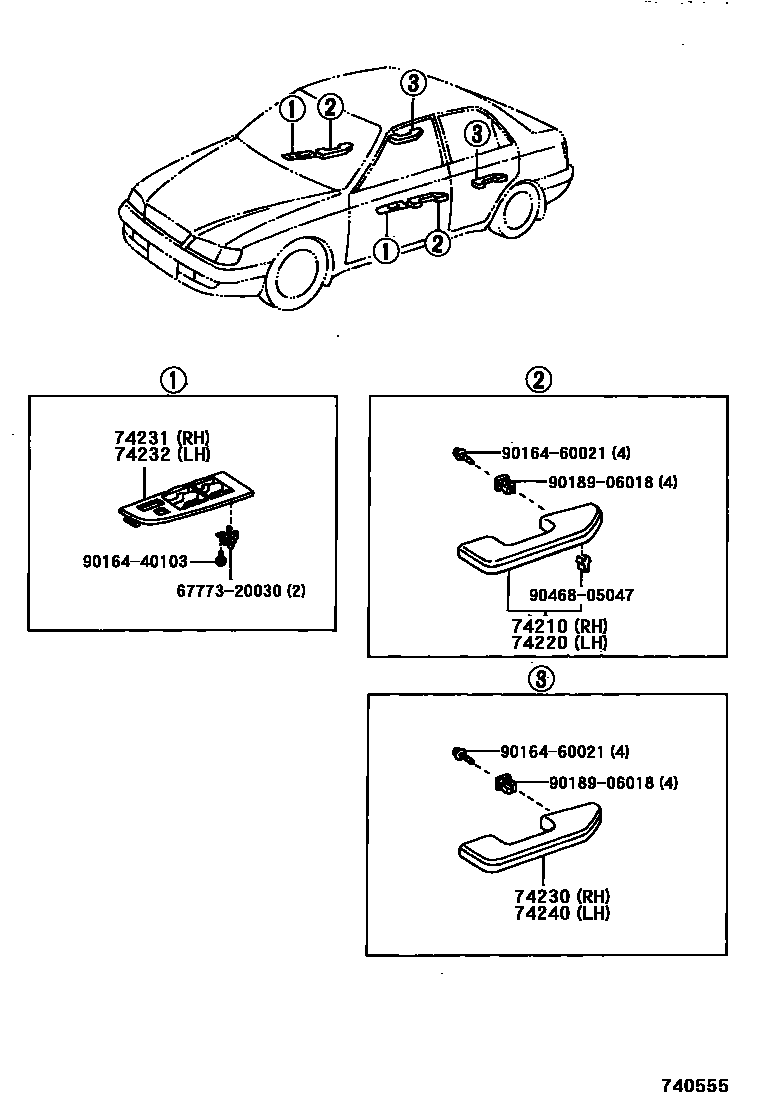

Toyota CORONA — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM11
DARK CHARCOAL,TRIM17
ANTELOPE,TRIM4#
74220ARMREST ASSY, FRONT, LH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM11
DARK CHARCOAL,TRIM17
ANTELOPE,TRIM4#
74230ARMREST ASSY, REAR, RH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM11
DARK CHARCOAL,TRIM17
ANTELOPE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
WOOD GRAIN
WOOD GRAIN
74232PANEL, FRONT ARMREST BASE, UPPER LH
WOOD GRAIN
WOOD GRAIN
74240ARMREST ASSY, REAR, LH
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM11
DARK CHARCOAL,TRIM17
ANTELOPE,TRIM4#
6777320030
main67773-20030
9016440103
main90164-40103
9016460021
main90164-60021
9018906018
main90189-06018
9046805047
main90468-05047
11 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota CORONA
This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORONA. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
