Toyota CORONA — ARMREST & VISOR

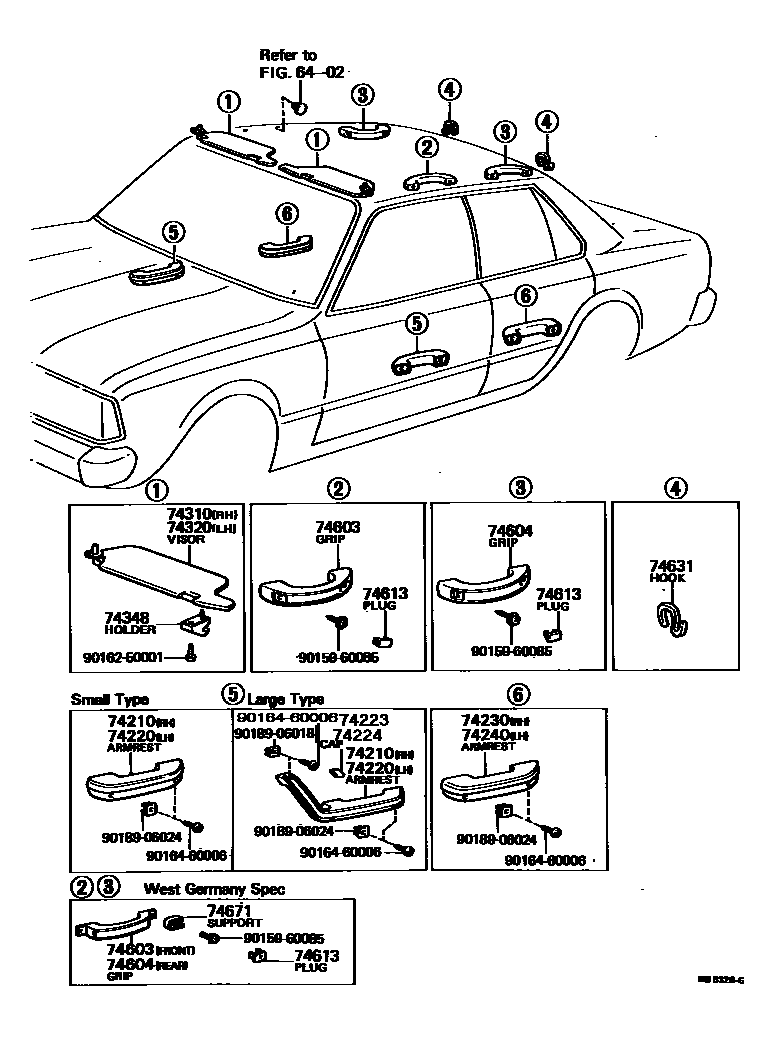

Parts diagram
6402ROOF HEADLINING & SILENCER PAD
→ Go to FIG 64-02
74210ARMREST ASSY, FRONT, RH
main74210-20090-01i198008-198301
LARGE TYPE,BLACK,BLACK,TRIM2#
main74210-20090-02i198008-198301
LARGE TYPE,DARK WINE,RED/MAROON,TRIM3#
main74210-20090-05i197809-198008
LARGE TYPE,BEIGE,BEIGE,TRIM4#
main74210-20090-06i198008-198301
LARGE TYPE,LIGHT BROWN,BROWN,TRIM4#
main74250-20010-01i197809-198008
SMALL TYPE,BLACK,BLACK,TRIM2#
main74250-20010-02i198008-198301
SMALL TYPE,DARK WINE,RED/MAROON,TRIM3#
main74250-20010-05i198008-198101
SMALL TYPE,BEIGE,BEIGE,TRIM4#
main74250-20010-06i198101-198301
SMALL TYPE,LIGHT BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-20100-01i197809-198008
LARGE TYPE,BLACK,BLACK,TRIM2#
main74220-20100-02i197809-198008
LARGE TYPE,DARK WINE,RED/MAROON,TRIM3#
main74220-20100-05i197809-198008
LARGE TYPE,BEIGE,BEIGE,TRIM4#
main74220-20100-06i198008-198301
LARGE TYPE,LIGHT BROWN,BROWN,TRIM4#
main74250-20010-01i198008-198301
SMALL TYPE,BLACK,BLACK,TRIM2#
main74250-20010-02i198008-198301
SMALL TYPE,DARK WINE,RED/MAROON,TRIM3#
main74250-20010-05i198008-198101
SMALL TYPE,BEIGE,BEIGE,TRIM4#
main74250-20010-06i198101-198301
SMALL TYPE,LIGHT BROWN,BROWN,TRIM4#
74223CAP, DOOR ARMREST, RH
74224CAP, DOOR ARMREST, LH
74230ARMREST ASSY, REAR, RH
main74250-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main74250-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main74250-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74250-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74250-20010-01i197809-198301
BLACK,BLACK,TRIM2#
main74250-20010-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main74250-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74250-20010-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-20150-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74310-20150-08i197809-198008
IVORY,IVORY,TRIM2#,3#
main74310-20150-18i198008-198205
IVORY,IVORY,TRIM2#,3#,4#
main74310-20170-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74310-20170-08i197809-198008
IVORY,IVORY,TRIM2#,3#
main74310-20171i198008-198112
main74310-20180-05i197809-197908
BEIGE,BEIGE,TRIM4#
main74310-20180-08i197809-197908
IVORY,IVORY,TRIM2#,3#
main74310-20190-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74310-20190-08i197809-198008
IVORY,IVORY,TRIM2#,3#
main74310-20190-18i198008-198205
IVORY,IVORY,TRIM2#,3#,4#
main74310-20200-05i197809-198004
BEIGE,BEIGE,TRIM4#
main74310-20200-08i197809-198004
IVORY,IVORY,TRIM2#,3#
main74310-20201-05i198004-198008
BEIGE,BEIGE,TRIM4#
main74310-20201-08i198004-198008
IVORY,IVORY,TRIM2#,3#
main74310-20201-18i198008-198108
IVORY,IVORY,TRIM2#,3#,4#
main74310-20240-05i197908-198008
BEIGE,BEIGE,TRIM4#
main74310-20240-08i197908-198008
IVORY,IVORY,TRIM2#,3#
main74310-20240-18i198008-198301
IVORY,IVORY,TRIM2#,3#,4#
main74310-20250-05i197908-198008
BEIGE,BEIGE,TRIM4#
main74310-20250-08i197908-198008
IVORY,IVORY,TRIM2#,3#
main74310-20280i198008-198108
W/SUN ROOF
main74310-95506-08i198008-198112
IVORY,IVORY,TRIM2#,3#,4#
main74310-95507-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74310-95507-08i197809-198112
IVORY,IVORY,TRIM2#,3#,4#
74320VISOR ASSY, LH
main74320-20130-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74320-20130-08i197809-198008
IVORY,IVORY,TRIM2#,3#
main74320-20131i198008-198112
main74320-20140-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74320-20140-08i197809-198008
IVORY,IVORY,TRIM2#,3#
main74320-20140-18i198008-198205
IVORY,IVORY,TRIM2#,3#,4#
main74320-20160-05i197908-198004
BEIGE,BEIGE,TRIM4#
main74320-20160-08i197908-198004
IVORY,IVORY,TRIM2#,3#
main74320-20161-05i198004-198008
BEIGE,BEIGE,TRIM4#
main74320-20161-08i198004-198112
IVORY,IVORY,TRIM2#,3#,4#
main74320-20230-05i197908-198008
BEIGE,BEIGE,TRIM4#
main74320-20230-08i197908-198008
IVORY,IVORY,TRIM2#,3#
main74320-20230-18i198008-198301
IVORY,IVORY,TRIM2#,3#,4#
main74320-20240-05i197908-198008
BEIGE,BEIGE,TRIM4#
main74320-20240-08i197908-198008
IVORY,IVORY,TRIM2#,3#
main74320-20260i198008-198108
W/SUN ROOF
main74320-95507-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74320-95507-08i197809-198112
IVORY,IVORY,TRIM2#,3#,4#
main74320-95509-08i198008-198112
IVORY,IVORY,TRIM2#,3#,4#
74348HOLDER, VISOR
main74348-14010-08×2i198008-198301
IVORY,IVORY,TRIM2#,3#,4#
main74348-14010-15×2i197809-198008
BEIGE,BEIGE,TRIM4#
main74348-14020-06×2i197809-198008
WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74603-22020-05i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-22020-08i197809-198008
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#
main74610-20030-05i197809-198008
BEIGE,BEIGE,TRIM4#
main74610-20030-08i197809-198301
IVORY,IVORY,TRIM2#,3#,4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-22020-05×2i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74603-22020-08×2i197809-198008
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#
main74610-10020-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main74610-10020-08×2i197809-198112
IVORY,IVORY,TRIM2#,3#,4#
main74610-20030-05×2i197809-198008
BEIGE,BEIGE,TRIM4#
main74610-20030-08×2i197809-198301
IVORY,IVORY,TRIM2#,3#,4#
74613PLUG, ASSIST GRIP
main74617-14010-06×6i198008-198101
LIGHT BROWN,BROWN,TRIM4#
main74617-14010-08×6i197809-198301
IVORY,IVORY,TRIM2#,3#,4#
main74617-22010-05×6i197809-198008
WEST GERMANY SPEC,LIGHT BROWN,BEIGE,TRIM4#
main74617-22010-08×6i197809-198008
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#
74631HOOK, COAT, A
main74631-14010-06×2i197809-198008
LIGHT BROWN,BROWN,TRIM4#
main74631-14010-08×2i197809-198301
IVORY,IVORY,TRIM2#,3#,4#
74671SUPPORT, ASSIST GRIP
main74671-22010-05×6i197809-198008
WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#
main74671-22010-08×6i197809-198008
WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#,4#
9015960085
main90159-60085
9016250001
main90162-50001
9016460006
main90164-60006
9018906018
main90189-06018
9018906024
main90189-06024

20 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CORONA

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORONA. Key components include: ROOF HEADLINING & SILENCER PAD, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH.
