Toyota CORONA — ANTENNA

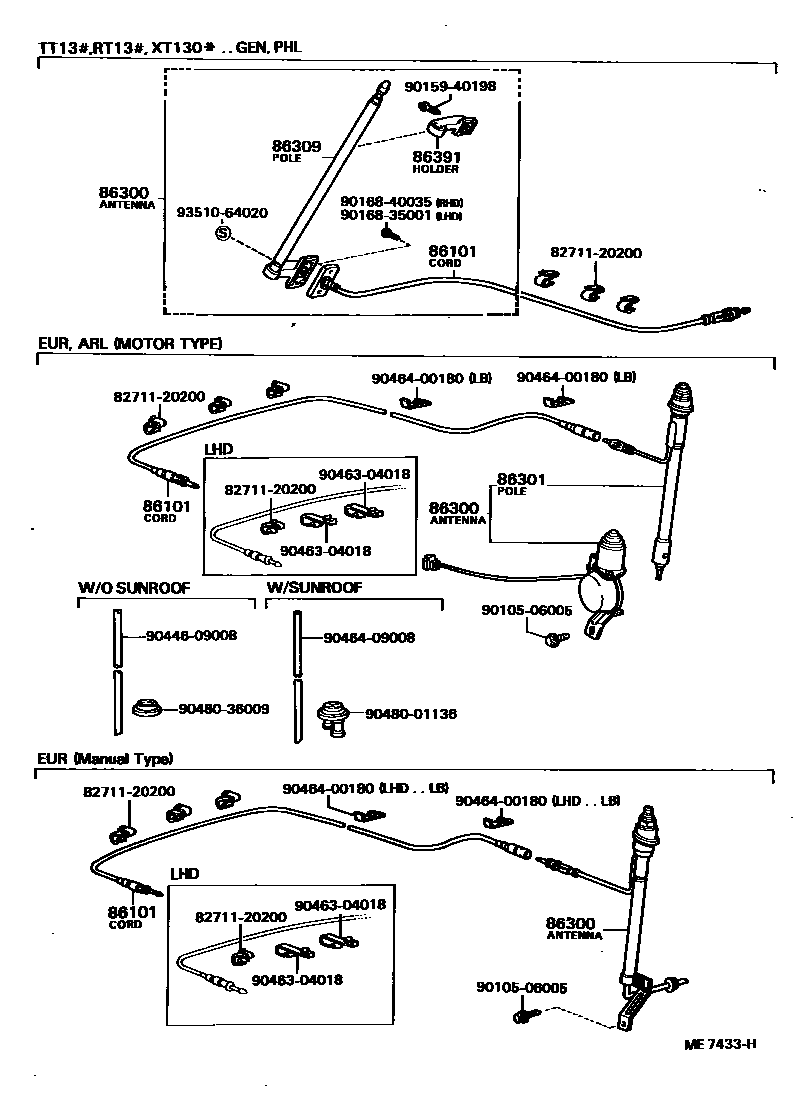

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-20060i197809-198008

main86101-20071i197809-198008

main86101-20072i198008-198112

main86101-20090i197809-198008

main86101-20101i198008-198108

main86101-20110i198008-198301

86300ANTENNA ASSY, W/HOLDER

main86300-20120i197809-198008

main86300-20130i197809-198008

main86300-20140i197809-198008

MOTOR TYPE

main86300-20150i197809-198008

MOTOR TYPE

main86300-20160i197809-198008

MANUAL TYPE

main86300-20170i197809-198108

MANUAL TYPE

main86300-20240i198008-198301

main86300-20250i198008-198205

main86300-20270i198008-198112

MOTOR TYPE

main86300-20280i198008-198108

MANUAL TYPE

86301POLE SUB-ASSY, ANTENNA

main86301-20140i197809-198008

MOTOR TYPE

main86301-20150i197809-198008

MOTOR TYPE

main86301-20270i198008-198112

MOTOR TYPE

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-20030i197809-198008

main86309-20040i197809-198008

main86309-20050i198008-198301

main86309-20060i198008-198205

86391HOLDER, ANTENNA

main86391-20070i197809-198008

main86391-20080i198008-198301

8271120200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20200

9010506005

main90105-06005

9015940198

main90159-40198

9016835001

main90168-35001

9016840035

main90168-40035

9044609008

main90446-09008

9046304018

main90463-04018

9046400180

main90464-00180

9046409008

main90464-09008

9048001136

main90480-01136

9048036009

main90480-36009

9351064020

main93510-64020

17 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CORONA

This section contains 17 genuine Toyota parts for the ANTENNA system of the Toyota CORONA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, POLE SUB-ASSY, PILLAR ANTENNA, HOLDER, ANTENNA.
