Toyota CORONA — AIR BAG

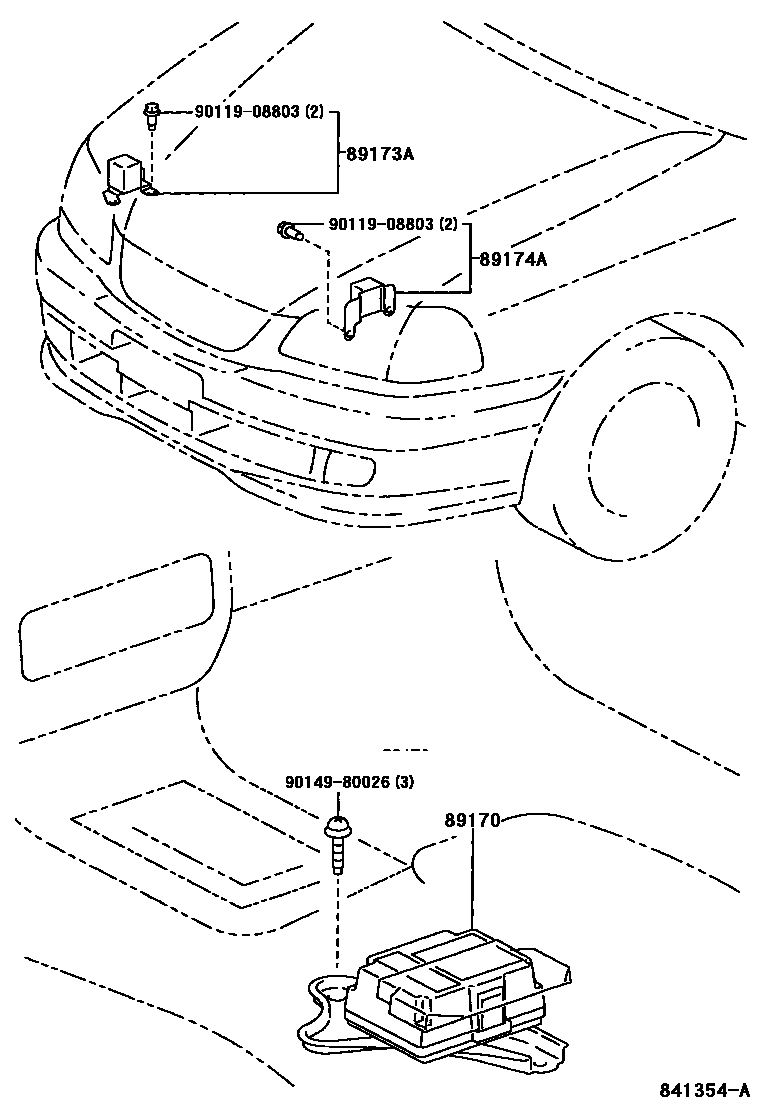

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-20052i199608-199712

main89170-21010i199712-199805

main89170-21011i199806-200004

main89170-21040i200004

PART NUMBER LABEL=89170-21040

main89170-29025i199601-199605

89173ASENSOR, AIRBAG, FRONT RH

main89173-29095i199712-199805

main89173-49195i199806

89174ASENSOR, AIRBAG, FRONT LH

main89173-29105i199712-199805

main89173-49205i199806

9011908803

main90119-08803

9014980026

main90149-80026

5 parts on this diagram · 1 diagram in section

AIR BAG for Toyota CORONA

This section contains 5 genuine Toyota parts for the AIR BAG system of the Toyota CORONA. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
