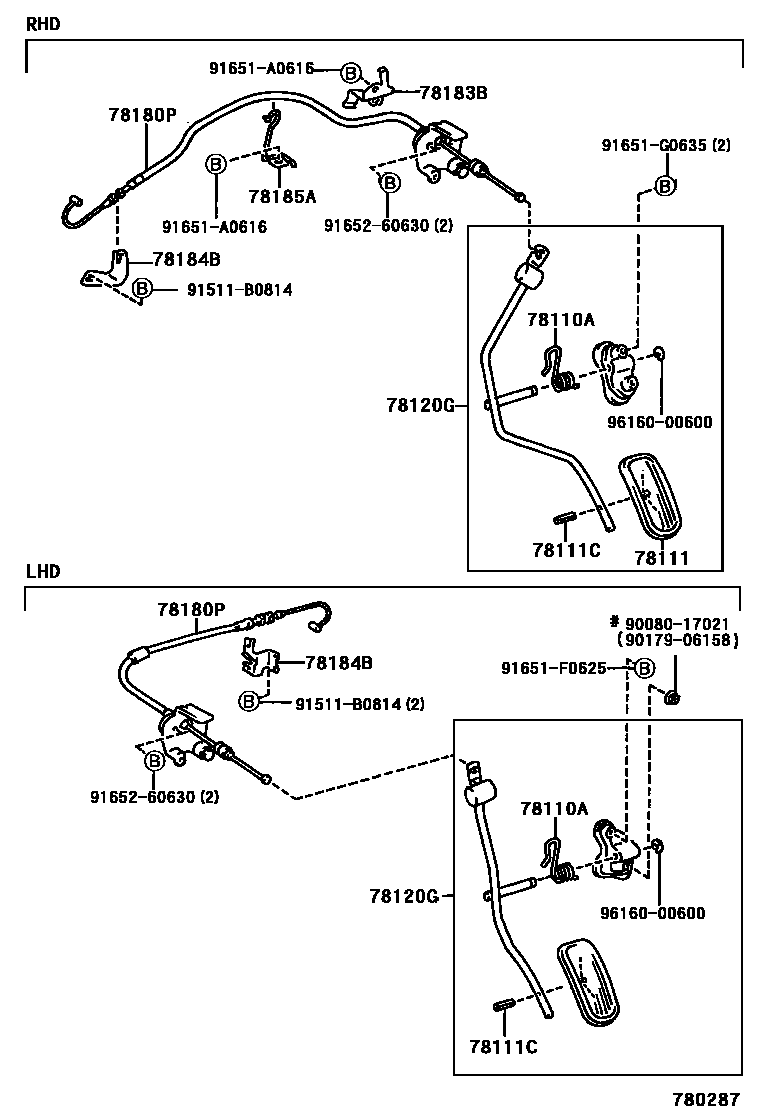

Toyota CORONA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50107iCT220,ST220..LHD..MTM199710

sub90508-26062

main90080-50108iAT220..LHD;ST220..LHD..ATM199710

sub90508-18072

main90508-26054iST220..RHD..MTM199710

main90959-03102iAT220..RHD;ST220..RHD..ATM199710

78111PEDAL, ACCELERATOR

main78111-16030iAT220,ST220..RHD199710-199902

main78111-20060iAT220,ST220..RHD199902

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iAT220,CT220,ST220199710

78120GROD ASSY, ACCELERATOR PEDAL

main78120-05110iST220..RHD..MTM199710

main78120-05120iAT220..RHD;ST220..RHD..ATM199710

main78120-05160iCT220,ST220..LHD..MTM199710-199906

main78120-05161iCT220,ST220..LHD..MTM199906

main78120-05170iAT220..LHD;ST220..LHD..ATM199710-199906

main78120-05171iAT220..LHD;ST220..LHD..ATM199906

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-05130iAT220..RHD199710-200007

main78180-05140iST220..RHD199710

main78180-05190iAT220..LHD199710-200007

sub78180-20A30

main78180-05200iST220..LHD199710

main78180-05230iCT220199710-200007

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170iAT220,ST220..RHD199710

main78183-20180iCT220199710-200007

TYPE A:REFER TO ILLUSTRATION

main78183-20300iCT220199710-200007

TYPE B:REFER TO ILLUSTRATION

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-05010iAT220..LHD199710-200007

main78184-12280iAT220..RHD199710-200007

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20200iAT220..RHD199710-200007

9008017021

main90080-17021

9017906158

main90179-06158

91511B0814

main91511-B0814

91651A0616

main91651-A0616

91651F0625

main91651-F0625

91651G0635

main91651-G0635

9165260630

main91652-60630

9616000600

main96160-00600

16 parts on this diagram · 3 diagrams in section
