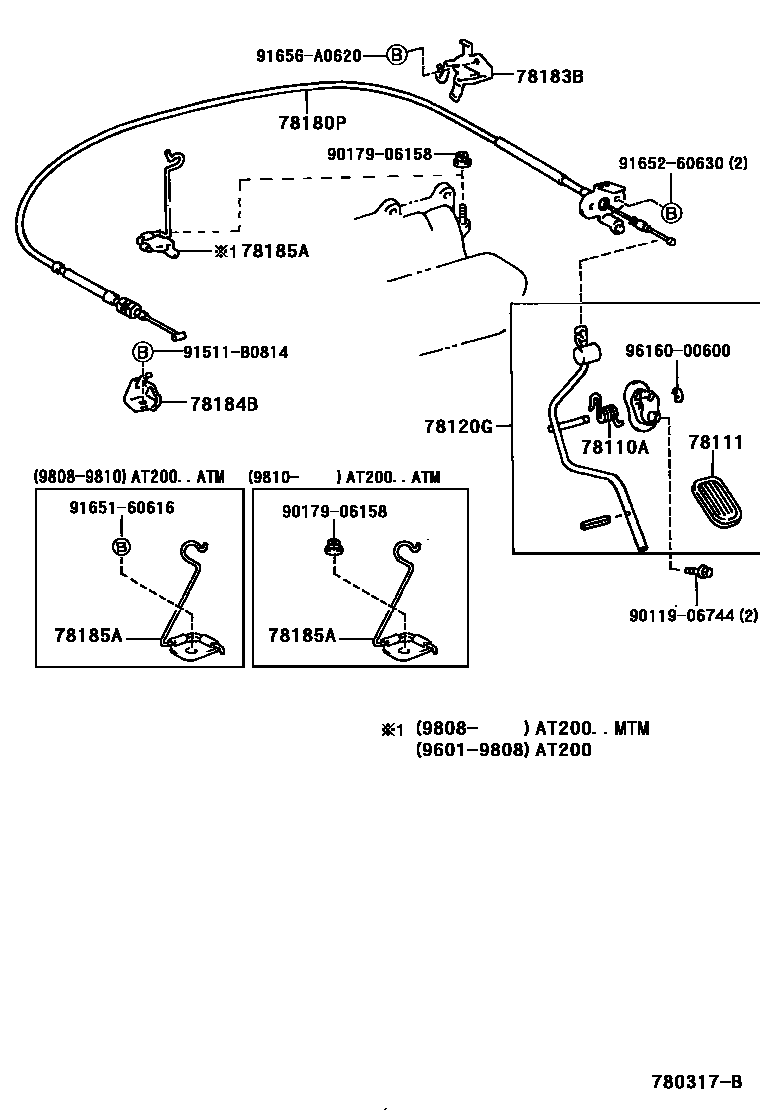

Toyota CORONA — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
L=1015
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2
9011906744
main90119-06744
9017906158
main90179-06158
91511B0814
main91511-B0814
9165160616
main91651-60616
9165260630
main91652-60630
91656A0620
main91656-A0620
9616000600
main96160-00600
14 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota CORONA
This section contains 16 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL.
