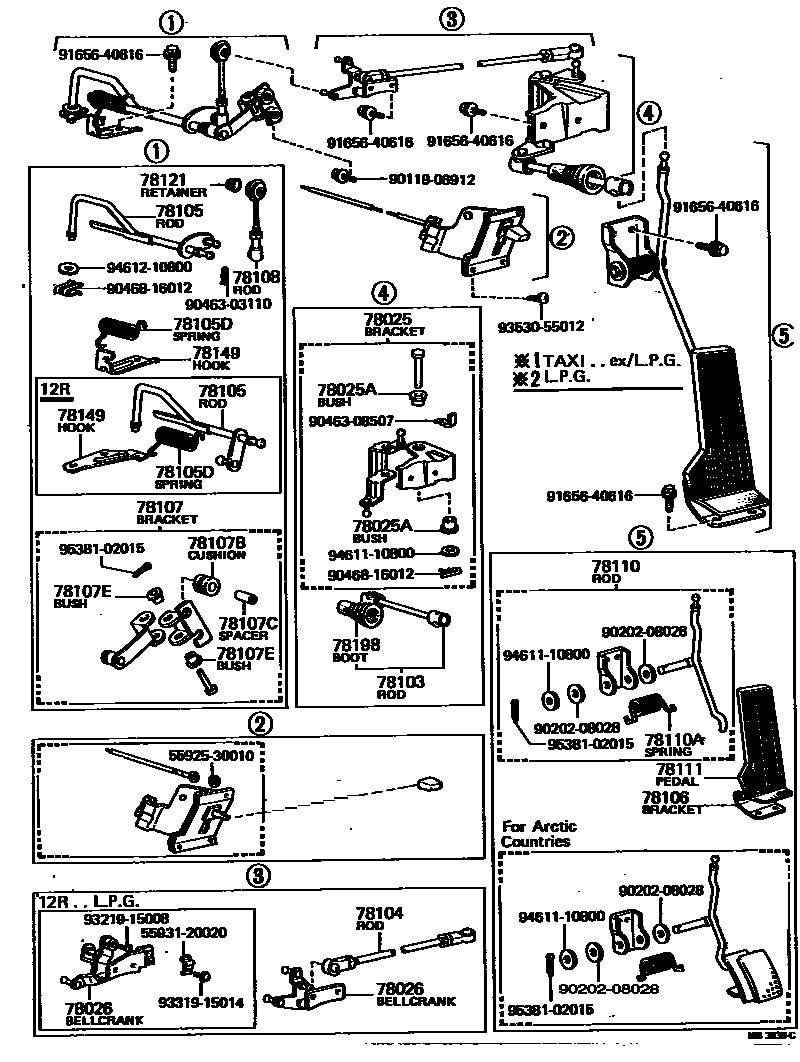

Toyota CORONA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78025BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM

main78015-20060iRT104,118..ARL197805-197905

FOR COMPLETE KNOCK DOWN

main78025-20010iRT10#,112,114,116,117,118..RHD197308-197509

main78025-20020iRT10#,114,116,118..RHD197509-197905

78025ABUSH(FOR ACCELERATOR CONNECTING BRACKET)

main90386-08077iRT10#,112,114,116,117,118..RHD197308-197905

78026BELLCRANK SUB-ASSY, ACCELERATOR, NO.2

main78017-20010iRT102,104,112,114,117,118..RHD197308-197511

main78017-20011iRT102,104,114,118..RHD197511-197905

main78017-20070iRT100,116..RHD197308-197511

main78017-20071iRT100,116..RHD197511-197808

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-20060iRT100,110,116..LHD197308-197511

main78103-20061iRT100,110,116..LHD197511-197808

sub78103-20120

main78103-20070iRT102,104,112,114,117,118..LHD197308-197510

sub78103-20071

main78103-20071iRT104,114,118..LHD197510-197905

main78103-20902iRT10#,112,114,116,117,118..RHD197308-197905

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20110iRT10#,112,114,116,117,118..RHD197308-197511

main78104-20140iRT10#,114,116,118..RHD197511-197905

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-20200iRT100,116..RHD197308-197511

main78105-20201iRT100,116..RHD197511-197808

main78105-20210iRT100,110,116..LHD197308-197511

main78105-20211iRT100,110,116..LHD197511-197808

main78105-20240iRT102,104,112,114,117,118..LHD197308-197511

main78105-20241iRT104,114,118..LHD197511-197905

main78105-20250iRT102,104,112,114,117,118..RHD197308-197511

main78105-20251iRT102,104,114,118..RHD197511-197905

78105DSPRING (FOR ACCELERATOR TORQUE ROD)

main90508-14003iRT100,116..GEN197509-197808

main90508-14365iRT102,104,112,114,117,118197308-197905

main90508-14381iRT100,110,116197308-197808

78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT

main78106-20070iRT10#,112,114,116,117,118..RHD197308-197905

78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78107-20110iRT102,104,112,114,117,118197308-197905

main78107-20120iRT100,110,116197308-197511

main78107-20121iRT100,110,116197511-197808

main78107-20130iRT100,110,116..LHD197308-197509

78107BCUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)

main90540-09059iRT10#,11#197308-197905

78107CSPACER (FOR ACCELERATOR TORQUE ROD BRACKET)

main90560-06238iRT10#,11#197308-197905

78107EBUSH (FOR ACCELERATOR TORQUE ROD BRACKET)

main90386-08077iRT10#,11#197308-197905

78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78108-20100iRT102,104,112,114,117,118..RHD197308-197511

sub78108-22010

main78108-20140iRT100,116..RHD197308-197511

sub78108-30050

main78108-20190iRT100,116..RHD197511-197808

sub78105-22180

main78108-20210iRT102,104,114,118..RHD197511-197905

78110ROD ASSY, ACCELERATOR PEDAL

main78110-20110iRT10#,112,114,116,117,118..RHD197308-197905

main78110-20120iRT100,116..LHD..3H197308-197808

main78110-20140iRT10#,11#..LHD..(4F,5F)197308-197905

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26377iRT10#,11#..LHD197308-197905

main90508-29378iRT10#,112,114,116,117,118..RHD197308-197905

78111PEDAL, ACCELERATOR

main78010-20030iRT10#,11#..LHD197308-197905

main78010-22020iRT10#,112,114,116,117,118..RHD197308-197905

78121RETAINER, SPRING (FOR ACCELERATOR LINK ROD)

main90183-08073iRT102,104,114,118..RHD197511-197905

78149HOOK, ACCELERATOR TORQUE ROD SPRING

main78149-20030iRT100,110,116..PHL197308-197808

main78178-22020iRT102,104,112,114,117,118197308-197808

main78187-20030iRT100,116..GEN197511-197808

main78187-20040iRT102,104,118..RHD197701-197905

78198BOOT, ACCELERATOR CONNECTING ROD

main78199-20030iRT104,114,118..LHD197308-197510

main78199-20040iRT10#,112,114,116,117,118..RHD197308-197905

main78199-22020iRT10#,110,112,116,117,118..LHD197308-197905

5592530010KNOB, HEATER CONTROL LEVER

main55925-30010

5593120020CLAMP, HEATER CONTROL WIRE

main55931-20020

9011906912

main90119-06912

9020208028

main90202-08028

9046303110

main90463-03110

9046308507

main90463-08507

9046816012

main90468-16012

9165640616

main91656-40616

9165640816

main91656-40816

9321915008

main93219-15008

9331915014

main93319-15014

9353055012

main93530-55012

9461110800

main94611-10800

9461210800

main94612-10800

9538102015

main95381-02015

34 parts on this diagram · 3 diagrams in section
