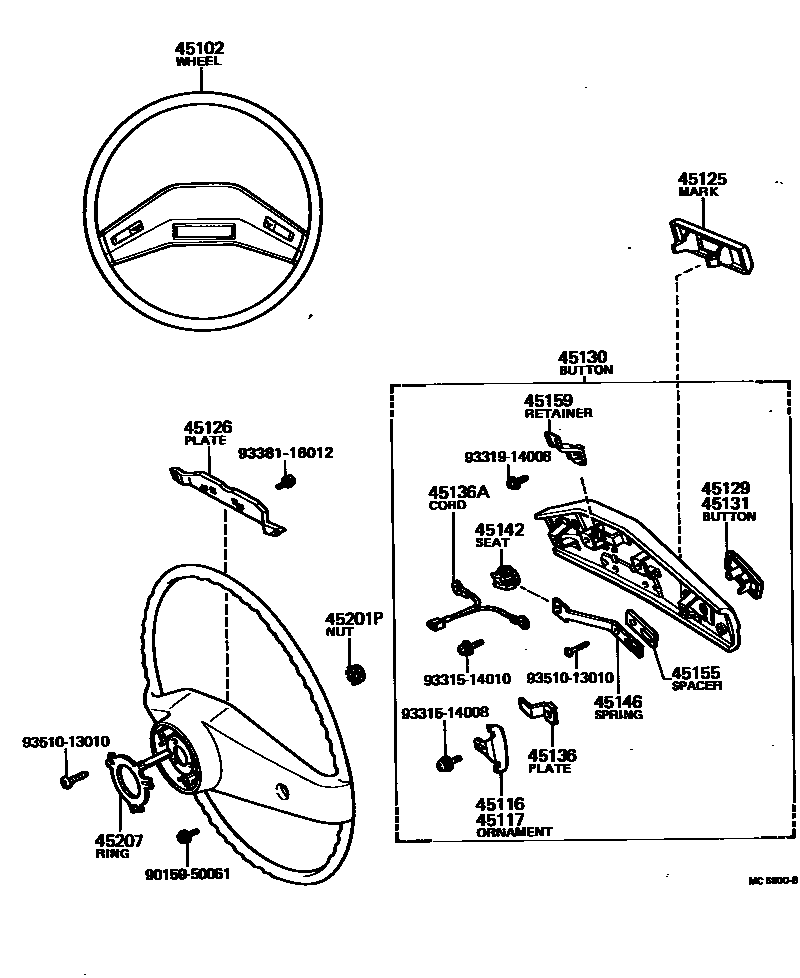

Toyota CORONA — STEERING WHEEL

0001 1 0002 1 0004 1

45102WHEEL SUB-ASSY, STEERING

main45100-14250-01iTT132..RHD..5F..GEN197908-198008

BLACK,PHILIPPINES SPEC,BLACK,TRIM2#

main45100-14250-01iTT132..RHD..5F..GEN197809-198008

BLACK,NEW ZEALAND SPEC,BLACK,TRIM2#

main45100-14250-01iTT132..RHD..5F..GEN197906-198008

BLACK,THAI LAND SPEC,BLACK,TRIM2#

main45100-14250-01iRT132,TT132..GL197809-198111

BLACK,BLACK,TRIM2#

main45100-14250-02iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197906-198008

DARK WINE,THAI LAND SPEC,RED/MAROON,TRIM3#

main45100-14250-02iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197908-198008

DARK WINE,PHILIPPINES SPEC,RED/MAROON,TRIM3#

main45100-14250-02iTT132..RHD..5F..GEN197809-198008

DARK WINE,NEW ZEALAND SPEC,RED/MAROON,TRIM3#

main45100-14250-02iRT132,TT132..GL197809-198111

DARK WINE,RED/MAROON,TRIM3#

main45100-14250-06iTT132..RHD..5F..GEN197809-198008

LIGHT BROWN,NEW ZEALAND SPEC,BROWN,TRIM4#

main45100-14250-06iRT132,TT132..GL197809-198008

LIGHT BROWN,BROWN,TRIM4#

main45100-14250-06iTT132..LB..RHD..5F..GEN197906-198008

LIGHT BROWN,THAI LAND SPEC,BROWN,TRIM4#

main45100-14250-06iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197908-198008

LIGHT BROWN,PHILIPPINES SPEC,BROWN,TRIM4#

main45100-14250-16iXT130198010-198111

LIGHT BROWN,BROWN,TRIM4#

main45100-20200-01iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE,BLACK,BLACK,TRIM2#

sub45100-20200

main45100-20200-02iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

sub45100-20200

main45100-20200-05iRT13#,TT13#..DLX,STD197809-198008

BEIGE,BEIGE,TRIM4#

sub45100-20200

main45100-20200-06iRT130,132,TT13#..DLX,STD198008-198205

2-SPOKE,LIGHT BROWN,BROWN,TRIM4#

sub45100-20200

main45100-29035iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE,BLACK

main45100-29065iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE,DARK WINE

sub45100-29035

main45100-29075iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE,LIGHT BROWN

sub45100-29035

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-20010iRT130,132,TT13#..DLX,STD197809-198205

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-20010iRT130,132,TT13#..DLX,STD197809-198205

45125MARK, STEERING WHEEL PAD

main45125-20100iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197809-198008

NEW ZEALAND SPEC

main45125-20100iTT132..LB..RHD..5F..GEN197906-198008

THAI LAND SPEC

main45125-20100iRT132,TT132..GL197809-198111

main45125-20100iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197908-198008

PHILIPPINES SPEC

main45125-20110-01iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE,BLACK,BLACK,TRIM2#

sub45125-20110

main45125-20110-02iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE,DARK WINE,RED/MAROON,TRIM3#

sub45125-20110

main45125-20110-05iRT13#,TT13#..DLX,STD197809-198008

BEIGE,BEIGE,TRIM4#

sub45125-20110

main45125-20110-06iRT130,132,TT13#..DLX,STD198008-198205

2-SPOKE,LIGHT BROWN,BROWN,TRIM4#

sub45125-20110

main45125-20130iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE

45126PLATE, STEERING WHEEL PAD SET

main45126-20010iRT130,132,TT13#..DLX,STD197809-198205

45129BUTTON, HORN, NO.2

main45129-14020iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197906-198008

THAI LAND SPEC

main45129-14020iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197809-198008

NEW ZEALAND SPEC

main45129-14020iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197908-198008

PHILIPPINES SPEC

main45129-14020iRT132,TT132..GL197809-198111

main45131-20120-01iRT130,132,TT13#..DLX,STD197809-198205

BLACK,BLACK,TRIM2#

sub45131-20120

main45131-20120-02iRT130,132,TT13#..DLX,STD197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub45131-20120

main45131-20120-05iRT13#,TT13#..DLX,STD197809-198008

BEIGE,BEIGE,TRIM4#

sub45131-20120

main45131-20120-06iRT130,132,TT13#..DLX,STD197809-198205

LIGHT BROWN,BROWN,TRIM4#

sub45131-20120

main45131-22100-01iRT13#,TT13#..DLX,GL198008-198112

UPR,TYPE A,BLACK,BLACK,TRIM2#

sub45131-22100

main45131-22100-02iRT13#,TT13#..DLX,GL198008-198112

UPR,4-SPOKE,DARK WINE,RED/MAROON,TRIM3#

sub45131-22100

main45131-22100-16iRT13#,TT13#..DLX,GL198008-198112

UPR,4-SPOKE,LIGHT BROWN,BROWN,TRIM4#

sub45131-22100

main45161-22010-01iRT13#,TT13#..DLX,GL198008-198112

LWR,TYPE A,BLACK,BLACK,TRIM2#

main45161-22010-02iRT13#,TT13#..DLX,GL198008-198112

LWR,4-SPOKE,DARK WINE,RED/MAROON,TRIM3#

main45161-22010-16iRT13#,TT13#..DLX,GL198008-198112

LWR,4-SPOKE,LIGHT BROWN,BROWN,TRIM4#

45130BUTTON ASSY, HORN

main45130-20140-01iRT130,132,TT13#..DLX,STD197809-198205

BLACK,BLACK,TRIM2#

sub45130-20140

main45130-20140-02iRT130,132,TT13#..DLX,STD197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub45130-20140

main45130-20140-05iRT13#,TT13#..DLX,STD197809-198008

BEIGE,BEIGE,TRIM4#

sub45130-20140

main45130-20140-06iRT130,132,TT13#..DLX,STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub45130-20140

45131BUTTON, HORN, NO.1

main45129-20040-01iRT130,132,TT13#..DLX,STD197809-198205

BLACK,BLACK,TRIM2#

sub45129-20040

main45129-20040-02iRT130,132,TT13#..DLX,STD197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub45129-20040

main45129-20040-05iRT13#,TT13#..DLX,STD197809-198008

BEIGE,BEIGE,TRIM4#

sub45129-20040

main45129-20040-06iRT130,132,TT13#..DLX,STD197809-198205

LIGHT BROWN,BROWN,TRIM4#

sub45129-20040

main45129-22050-01iRT13#,TT13#..DLX,GL198008-198112

UPR,TYPE A,BLACK,BLACK,TRIM2#

sub45129-22050

main45129-22050-02iRT13#,TT13#..DLX,GL198008-198112

UPR,4-SPOKE,DARK WINE,RED/MAROON,TRIM3#

sub45129-22050

main45129-22050-16iRT13#,TT13#..DLX,GL198008-198112

UPR,4-SPOKE,LIGHT BROWN,BROWN,TRIM4#

sub45129-22050

main45131-14070-01iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197809-198008

BLACK,NEW ZEALAND SPEC,BLACK,TRIM2#

sub45131-14070

main45131-14070-01iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197906-198008

BLACK,THAI LAND SPEC,BLACK,TRIM2#

sub45131-14070

main45131-14070-01iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197908-198008

BLACK,PHILIPPINES SPEC,BLACK,TRIM2#

sub45131-14070

main45131-14070-01iXT130197809-198111

BLACK,BLACK,TRIM2#

sub45131-14070

main45131-14070-02iXT130197809-198111

DARK WINE,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-02iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197908-198008

DARK WINE,PHILIPPINES SPEC,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-02iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197809-198008

DARK WINE,NEW ZEALAND SPEC,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-02iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197906-198008

DARK WINE,THAI LAND SPEC,RED/MAROON,TRIM3#

sub45131-14070

main45131-14070-06iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197809-198008

LIGHT BROWN,NEW ZEALAND SPEC,BROWN,TRIM4#

sub45131-14070

main45131-14070-06iTT132..LB..RHD..5F..GEN197906-198008

LIGHT BROWN,THAI LAND SPEC,BROWN,TRIM4#

sub45131-14070

main45131-14070-06iRT132,TT132..GL197809-198008

LIGHT BROWN,BROWN,TRIM4#

sub45131-14070

main45131-14070-06iRT132..HT;TT132..SED..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN197908-198008

LIGHT BROWN,PHILIPPINES SPEC,BROWN,TRIM4#

sub45131-14070

main45131-14070-16iXT130198010-198111

LIGHT BROWN,BROWN,TRIM4#

sub45131-14070

main45162-22010-01iRT13#,TT13#..DLX,GL198008-198112

LWR,4-SPOKE,BLACK,BLACK,TRIM2#

main45162-22010-02iRT13#,TT13#..DLX,GL198008-198112

LWR,4-SPOKE,DARK WINE,RED/MAROON,TRIM3#

main45162-22010-16iRT13#,TT13#..DLX,GL198008-198112

LWR,4-SPOKE,LIGHT BROWN,BROWN,TRIM4#

45136PLATE, HORN BUTTON CONTACT

main45136-20100iRT130,132,TT13#..DLX,STD197809-198205

45136ACORD(FOR HORN CONTACT RING)

main90945-02041iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE

main90945-03034iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-20030iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE

main45142-22020iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE

45146SPRING, HORN BUTTON CONTACT

main45146-20080iRT130,132,TT13#..DLX,STD197809-198205

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-14010iTT132..RHD..5F..GEN197908-198008

PHILIPPINES SPEC

main45155-14010iTT132..RHD..5F..GEN197906-198008

THAI LAND SPEC

main45155-14010iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197809-198008

NEW ZEALAND SPEC

main45155-14010iXT130197809-198111

main45155-20010iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE

main45155-22020iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE

45159RETAINER, STEERING WHEEL PAD SET

main45159-20030iRT130,132,TT13#..DLX,STD197809-198205

45201PNUT, STEERING WHEEL SET

main90179-12086iRT13#,TT13#,XT130197809-198301

45207RING, HORN CONTACT

main45176-14030iXT130197809-198111

main45176-14030iTT132..(SED,WG)..RHD..(3FC,4F)..DLX197809-198008

NEW ZEALAND SPEC

main45176-14030iTT132..LB..RHD..5F..GEN197905-198008

THAI LAND SPEC

main45176-14030iTT132..LB..RHD..5F..GEN;TT132..(SED,WG)..RHD..(3FC,4F)..DLX197908-198008

PHILIPPINES SPEC

main45176-14030iRT13#,TT13#..DLX,GL198008-198112

4-SPOKE

main45176-30050iRT130,132,TT13#..DLX,STD197809-198205

2-SPOKE

9015950061

main90159-50061

9331514008

main93315-14008

9331514010

main93315-14010

9331914008

main93319-14008

9338116012

main93381-16012

9351013010

main93510-13010

22 parts on this diagram · 3 diagrams in section
