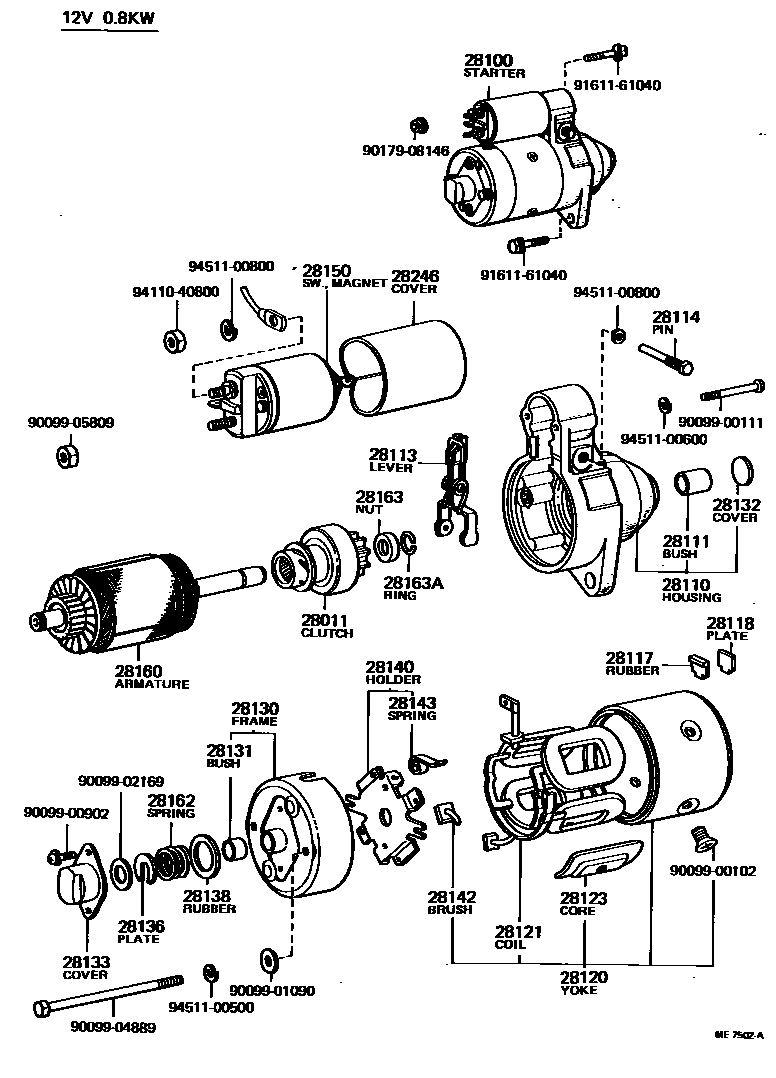

Toyota CORONA — STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i12RM..RT130197908-198301

12V 0.8KW

main28011-22020i2T,3T..TT13#197809-198008

12V 0.8KW

main28011-26042i3T..TT132..EUR198008-198108

12V 1.0KW

main28011-41011i12RM..RT130197809-198002

12V 0.8KW

main28011-41020i3T..TT132..EUR197809-198008

12V 1.0KW

28100STARTER ASSY

main28100-25021i3T..TT132..EUR197809-197906

12V 1.0KW

sub28100-26150

main28100-26080i2T,3T..TT13#197809-198008

12V 0.8KW

sub28100-26142

main28100-26150i3T..TT132..EUR197906-198008

12V 1.0KW

sub28100-25032

main28100-26160i2T,3T..TT13#198008-198112

12V 0.8KW

sub28100-27020

main28100-27030i3T..TT132..EUR198008-198108

12V 1.0KW,12V 1.0KW

main28100-31020i12RM..RT130198002-198112

12V 0.8KW,12V 0.8KW

sub28100-31021

main28100-36070i18R..RT132197809-197908

12V 0.8KW

sub28100-37010

main28100-37010i21RC,18R#..RT132,133197908-198301

12V 0.8KW,12V 0.8KW

sub28100-37011

main28100-40015i12R#..RT130197809-198002

12V 0.8KW,12V 0.8KW

sub28100-31020

28110HOUSING ASSY, STARTER DRIVE

main28110-25011i2T,3T..TT13#197809-198008

12V 0.8KW

main28110-25020i3T..TT132..EUR197809-198008

12V 1.0KW

main28110-27020i2T,3T..TT13#198008-198112

12V 0.8KW

main28110-27030i3T..TT132..EUR198008-198108

12V 1.0KW

main28110-31020i12RM..RT130198002-198112

12V 0.8KW

main28110-37010i21RC,18R#..RT132,133197908-198301

12V 0.8KW

main28110-40030i12R#..RT130197809-198002

12V 0.8KW

main28110-40045i18R..RT132197809-197908

12V 0.8KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

12V 0.8KW,1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i21RC,18R#..RT132,133197908-198301

12V 0.8KW

main28113-25010i2T,3T..TT13#197809-198008

12V 0.8KW

main28113-41011i3T..TT132..EUR197809-198008

12V 1.0KW

main28113-41011i12R#,18R..RT13#197809-198002

12V 0.8KW

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i2T,3T..TT13#197809-198008

12V 0.8KW

main28114-41011i12RM..RT130197809-198002

12V 0.8KW

main28114-41011i3T..TT132..EUR197809-198008

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-25010i2T,3T..TT13#197809-198008

12V 0.8KW

sub28117-25011

sub28118-25011

main28117-41012i12R#..RT130197809-198002

12V 0.8KW

main28117-41013i18R..RT132197809-197908

12V 0.8KW

main28117-41020i3T..TT132..EUR197809-198008

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-25010i2T,3T..TT13#197809-198008

12V 0.8KW

main28118-41012i12R#..RT130197809-198002

12V 0.8KW

sub28118-41013

main28118-41013i18R..RT132197809-197908

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i12RM..RT130197908-198301

12V 0.8KW

main28120-25011i2T,3T..TT13#197809-198008

12V 0.8KW

main28120-25021i3T..TT132..EUR197809-197906

12V 1.0KW

main28120-26070i3T..TT132..EUR198008-198108

12V 1.0KW

sub28120-26071

main28120-26150i3T..TT132..EUR197906-198008

12V 1.0KW

main28120-36040i12R#,18R..RT13#197809-198002

12V 0.8KW

28121COIL, STARTER FIELD

main28121-25012i2T,3T..TT13#197809-198008

12V 0.8KW

sub28121-36040

main28121-34070i3T..TT132..EUR197906-198008

12V 1.0KW

main28121-36040i12R#,18R..RT13#197809-198002

12V 0.8KW

main28121-41020i3T..TT132..EUR197809-197906

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012i12R#,18R,3T..RT13#,TT132197809-198008

12V 0.8KW

main28123-41020i3T..TT132..EUR197809-198008

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13020i12RM..RT130198002-198112

12V 0.8KW

main28130-21011i12RM,2T,3T..RT130,TT13#197809-198008

12V 0.8KW

main28130-26070i3T..TT132..EUR198008-198108

12V 1.0KW

main28130-37010i2T,3T..TT13#197908-198301

12V 0.8KW

main28130-41020i3T..TT132..EUR197809-198008

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i12R#,18R,3T..RT13#,TT132197809-197908

12V 0.8KW,1.0KW,STD

main28131-20010i12RM..RT130197908-198002

12V 0.8KW,STD

main28131-20010i3T..TT132..EUR197908-198008

12V 1.0KW,STD

main90099-10039i3T..TT132..EUR197908-198008

12V 1.0KW,U/S 0.3

main90099-10039i12RM..RT130197908-198002

12V 0.8KW,U/S 0.3

main90099-10039i12R#,18R,3T..RT13#,TT132197809-197908

12V 0.8KW,1.0KW,U/S 0.3

main90099-10040i12RM..RT130197908-198002

12V 0.8KW,U/S 0.5

main90099-10040i3T..TT132..EUR197908-198008

12V 1.0KW,U/S 0.5

main90099-10040i12R#,18R,3T..RT13#,TT132197809-197908

12V 0.8KW,1.0KW,U/S 0.5

main90099-10134i12RM..RT130197908-198301

12V 0.8KW

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i12R#,18R#,2T,3T..RT130,132,TT13#197809-198205

12V 0.8KW,1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i12RM..RT130197908-198301

12V 0.8KW

sub28132-15011

main28132-40010i3T..TT132..EUR197809-198008

12V 1.0KW

main28132-41011i12RM,2T,3T..RT130,TT13#197809-198008

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i2T,3T..TT13#197908-198301

12V 0.8KW

main28136-40010i3T..TT132..EUR197809-198008

12V 1.0KW

main28136-41011i12R#,18R,3T..RT13#,TT132197809-198008

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i12RM..RT130197908-198301

12V 0.8KW

main28138-40010i3T..TT132..EUR197809-198008

12V 1.0KW

sub28138-26030

main28138-41011i12R#,18R,3T..RT13#,TT132197809-198008

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i12RM..RT130197908-198301

12V 0.8KW

main28140-25011i2T,3T..TT13#197809-198008

12V 0.8KW

main28140-25020i3T..TT132..EUR197809-198008

12V 1.0KW

main28140-26070i3T..TT132..EUR198008-198108

12V 1.0KW

main28140-41012i12R#,18R..RT13#197809-197908

12V 0.8KW

sub28140-41013

main28140-41013i12RM..RT130197908-198002

12V 0.8KW

28142BRUSH, STARTER

main28142-21010i12RM..RT130197809-198808

12V 0.8KW

main28142-25010i2T,3T..TT13#197809-198008

12V 0.8KW

sub28142-25011

main28142-25011i3T..TT132..EUR197906-198008

12V 1.0KW

main28142-25020i3T..TT132..EUR197809-197906

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010i12R#,18R,3T..RT13#,TT132197809-197905

12V 0.8KW,1.0KW

sub28143-40040

main28143-40040i12R#,18R,3T..RT13#,TT132197905-198008

12V 0.8KW,1.0KW

main28143-40040i12RM..RT130197908-198002

12V 0.8KW

main90099-17112i3T..TT132..EUR198008-198108

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i12RM..RT130197908-198301

12V 0.8KW

sub28150-37010

main28150-22011i18R..RT132197809-197908

12V 0.8KW

main28150-25010i2T,3T..TT13#197809-198008

12V 0.8KW

sub28150-25030

main28150-25020i3T..TT132..EUR197809-198008

12V 1.0KW

main28150-26160i2T,3T..TT13#198008-198112

12V 0.8KW

main28150-27030i3T..TT132..EUR198008-198108

12V 1.0KW

sub28150-27031

sub28199-27031

main28150-33020i12R#..RT130197809-197906

12V 0.8KW

main28150-34070i12R#..RT130197906-198002

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i21RC,18R#..RT132,133197908-198301

12V 0.8KW

main28160-22021i2T,3T..TT13#197809-198008

12V 0.8KW

main28160-26070i3T..TT132..EUR198008-198108

12V 1.0KW

sub28160-26071

main28160-40014i12R#,18R..RT13#197809-198002

12V 0.8KW

main28160-41020i3T..TT132..EUR197809-198008

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-15010i12RM..RT130197908-198301

12V 0.8KW

main28162-41011i2T,3T..TT13#197809-198008

12V 0.8KW

main28162-41022i3T..TT132..EUR197809-198008

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

12V 0.8KW,1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

12V 0.8KW,1.0KW

28246COVER, MAGNET SWITCH

main28246-25010i3T..TT132..EUR197809-198008

12V 1.0KW

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904889

main90099-04889

9009905809

main90099-05809

9017908146

main90179-08146

9161161040

main91611-61040

9411040800

main94110-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

39 parts on this diagram · 7 diagrams in section
