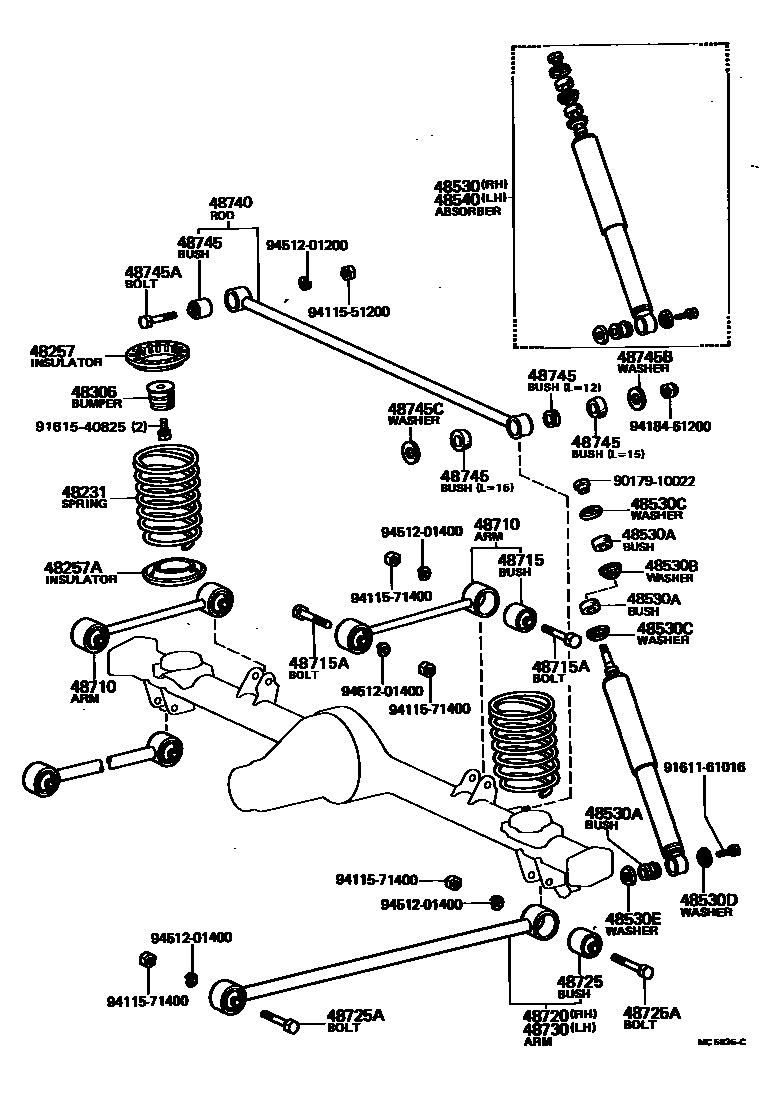

Toyota CORONA — REAR SPRING & SHOCK ABSORBER
48257INSULATOR, REAR COIL SPRING
sub48257-12020
48257AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-80001
sub48531-20170
sub48531-19755
sub48531-29895
sub48531-29885
48530ABUSH(FOR REAR SHOCK ABSORBER)
LWR
UPR,OD=30,ID=10
UPR,OD=30,ID=10
UPR,OD=30,ID=10&14
UPR
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
LWR,ID=10.5
UPR,ID=14
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-80001
sub48531-20170
sub48531-19755
sub48531-29895
sub48531-29885
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
*14-1.5PX141-23
*14-1.5PX76-21
main90105-14006iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112
*14-1.5PX77-28
main90105-14009iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112
*14-1.5PX141-25
48720ARM ASSY, LOWER CONTROL, RH
48725BUSH, LOWER CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
*14-1.5PX76-21
main90105-14006iTT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198112
*14-1.5PX77-28
48730ARM ASSY, LOWER CONTROL, LH
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
HOUSING SIDE,L=15
HOUSING SIDE,L=12
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
*12-1.25PX65-25
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
9017910022
main90179-10022
9161161016
main91611-61016
9161540825
main91615-40825
9411551200
main94115-51200
9411571400
main94115-71400
9418461200
main94184-61200
9451201200
main94512-01200
9451201400
main94512-01400
31 parts on this diagram · 6 diagrams in section
