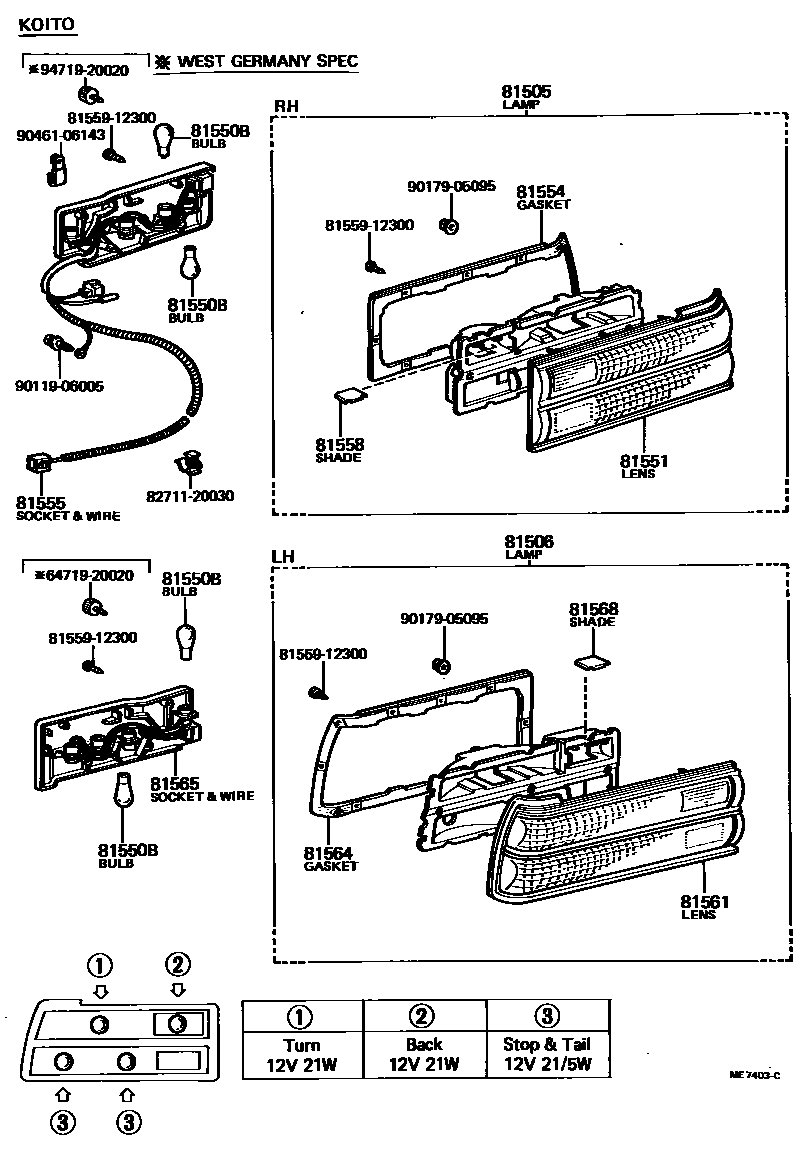

Toyota CORONA — REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-29145iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81505-29146iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

KOITO

main81505-29185iRT132,TT132..LB197809-198008

main81505-29186iRT132,133,TT132..LB198008-198112

main81505-29205iRT132,TT132..HT197809-198008

main81505-29285iRT13#,TT13#,XT130..SED197809-198008

IKI

sub81505-20170

main81505-29286iRT130,132,TT13#..SED198008-198301

IKI

main81505-29295iTT132..HT198008-198112

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-29065iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81506-29066iRT130,132,TT13#..SED198008-198301

KOITO

main81506-29105iRT132,TT132..LB197809-198008

main81506-29106iRT132,133,TT132..LB198008-198112

main81506-29125iRT132,TT132..HT197809-198008

main81506-29205iRT13#,TT13#,XT130..SED197809-198008

IKI

sub81506-20090

main81506-29206iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

IKI

sub81506-20091

main81506-29215iTT132..HT198008-198112

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29865iTT132..DLX..LEF197809-198008

sub81550-91255

main81550-29875iRT13#,TT13#,XT130..WG..STD197809-198008

main81550-80080iTT132..DLX..LEF198008-198112

main81550-80081iRT130,132,TT13#..WG..STD198008-198205

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iRT13#,TT13#,XT130..LB,SED197809-198301

12V 21W,12V 21W

main99132-11230iRT130,132,TT13#,XT130..HT,WG197809-198301

12V 23W,12V 23W

main99132-21210iRT13#,TT132;TT133,XT130..SED197809-198301

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-20490iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81551-20491iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

KOITO

main81551-20520iRT13#,TT13#,XT130..SED197809-198008

IKI

main81551-20522iRT130,132,TT13#..SED198008-198301

IKI

main81551-20540iRT132,TT132..LB197809-198008

main81551-20550iRT132,133,TT132..LB198008-198112

main81551-91255iRT13#,TT13#,XT130..WG197809-198008

AMBER-CLEAR

main81551-91258iRT130,132,TT13#..WG198008-198205

main81551-95500iRT132,TT132..HT197809-198008

main81551-95501iTT132..HT198008-198112

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-20480iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81552-20481iRT130,132,TT13#..SED198008-198301

KOITO

main81552-20540iRT132,TT132..LB197809-198008

main81552-20541iRT132,133,TT132..LB198008-198112

main81552-95500iRT132,TT132..HT197809-198008

main81552-95501iTT132..HT198008-198112

main81554-20510iRT130,132,TT13#..SED197809-198301

IKI

main81554-91255iRT130,132,TT13#,XT130..WG197809-198301

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-13171iRT13#,TT13#,XT130..WG197809-198008

main81555-20490iRT13#,TT132..SED197809-197908

KOITO

main81555-20491iRT13#,TT13#,XT130..SED197908-198008

KOITO

main81555-20492iRT130,132,TT13#..SED198008-198301

KOITO

main81555-20520iRT13#,TT132..SED197809-197908

IKI

main81555-20521iRT13#,TT13#,XT130..SED197908-198008

IKI

main81555-20522iRT130,132,TT13#..SED198008-198301

IKI

main81555-20550iRT132,TT132..LB197809-197908

main81555-20551iRT132,TT132..LB197908-198008

main81555-20552iRT132,133,TT132..LB198008-198112

main81555-23130iRT130,132,TT13#..WG198008-198205

main81555-95500iRT132..HT197809-197908

main81555-95501iRT132,TT132..HT197908-198008

main81555-95502iTT132..HT198008-198112

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81517-14170iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81557-20480iRT130,132,TT13#..SED198008-198301

KOITO

81561LENS, REAR COMBINATION LAMP, LH

main81561-20430iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81561-20431iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

KOITO

main81561-20460iRT13#,TT13#,XT130..SED197809-198008

IKI

main81561-20461iRT130,132,TT13#..SED198008-198301

IKI

main81561-20480iRT132,TT132..LB197809-198008

main81561-20490iRT132,133,TT132..LB198008-198112

main81561-91255iRT13#,TT13#,XT130..WG197809-198008

AMBER-CLEAR

main81561-91258iRT130,132,TT13#..WG198008-198205

main81561-95500iRT132,TT132..HT197809-198008

main81561-95501iTT132..HT198008-198112

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-20480iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81552-20481iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

KOITO

main81552-20540iRT132,TT132..LB197809-198008

main81552-20541iRT132,133,TT132..LB198008-198112

main81552-95500iRT132,TT132..HT197809-198008

main81552-95501iTT132..HT198008-198112

main81554-91255iRT130,132,TT13#,XT130..WG197809-198301

main81564-20450iRT130,132,TT13#..SED197809-198301

IKI

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13171iRT13#,TT13#,XT130..WG197809-198008

main81555-23130iRT130,132,TT13#..WG198008-198205

main81565-20430iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81565-20431iTT132..SED..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198008-198301

KOITO

main81565-20460iRT13#,TT13#,XT130..SED197809-198008

IKI

main81565-20461iRT130,132,TT13#..SED198008-198301

IKI

main81565-20490iRT132,TT132..LB197809-198008

main81565-20491iRT132,133,TT132..LB198008-198112

main81565-95500iRT132,TT132..HT197809-198008

main81565-95501iTT132..HT198008-198112

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81517-14170iRT13#,TT13#,XT130..SED197809-198008

KOITO

main81557-20480iRT130,132,TT13#..SED198008-198301

KOITO

6471920020COVER, REAR FENDER BRACE

main64719-20020

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

8271120030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20030

9011906005

main90119-06005

9017905095

main90179-05095

9046106143

main90461-06143

9471920020

main94719-20020

19 parts on this diagram · 10 diagrams in section
