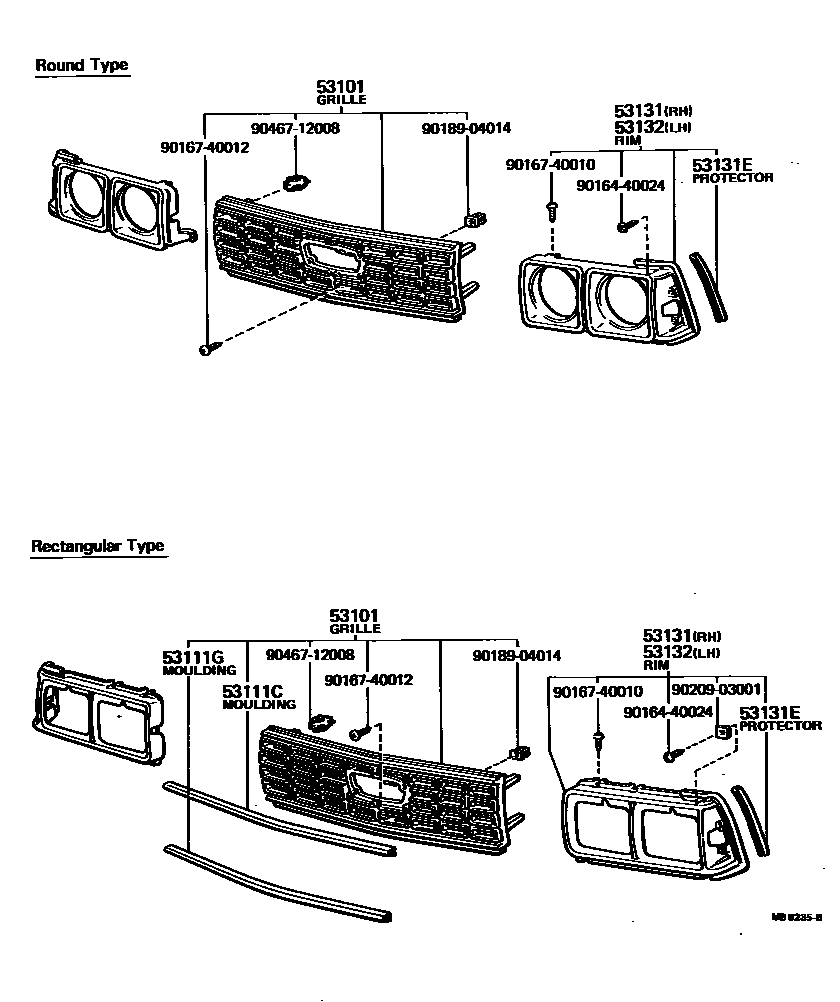

Toyota CORONA — RADIATOR GRILLE

0001 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-29075iXT130;RT13#,TT13#..DLX,GL197809-198111

sub53111-29115

main53101-29105iRT13#,TT13#198008-198301

main53111-29115iRT13#,TT13#..STD197809-198008

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-20070iXT130197809-198111

main53121-29035iRT13#,TT13#198008-198301

53111GMOULDING, RADIATOR GRILLE, LOWER

main53122-20050iXT130;RT13#,TT13#..DLX,GL197809-198111

main53123-20040iRT13#,TT13#198008-198301

53131RIM, HEADLAMP, RH

main53131-29115iRT130197809-198008

ROUND TYPE

main53131-29125iRT13#,TT13#,XT130..LB,SED,WG197809-198008

RECTANGULAR TYPE

main53131-29125iXT130198008-198111

main53131-29135iRT132,TT132..HT197809-198008

main53131-29185iRT133..GL;RT130,132,TT13#198008-198301

main53131-29206iRT133,XT130..STD198111-198301

53131EPROTECTOR, HEADLAMP DOOR

main53139-20010iRT13#,TT13#,XT130197809-198111

main53139-20020iXT130198008-198301

53132RIM, HEADLAMP, LH

main53132-29095iRT130197809-198008

ROUND TYPE

main53132-29105iXT130198008-198111

main53132-29105iRT13#,TT13#,XT130..LB,SED,WG197809-198008

RECTANGULAR TYPE

main53132-29115iRT132,TT132..HT197809-198008

main53132-29165iRT133..GL;RT130,132,TT13#198008-198301

main53132-29186iRT133,XT130..STD198111-198301

9016440024

main90164-40024

9016740010

main90167-40010

9016740012

main90167-40012

9018904014

main90189-04014

9020903001

main90209-03001

9046712008

main90467-12008

12 parts on this diagram · 2 diagrams in section
