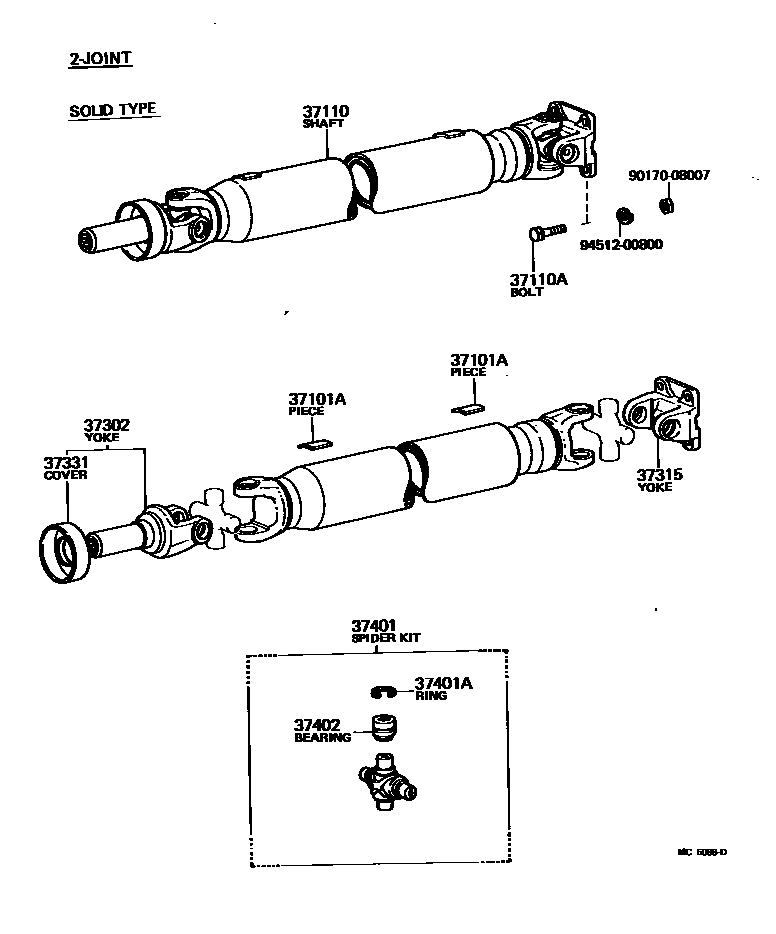

Toyota CORONA — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 112)TT132..LB..4F; (8008-8112)0008 1 0009 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iRT133..GL;RT130,132,TT13#197809-198205

10G,L=20.7,10G

main90937-01136iRT133..GL;RT130,132,TT13#197809-198205

20G,L=41.4,20G

main90937-01140iRT133..GL;RT130,132,TT13#197809-198205

30G,L=62.2,30G

main90937-01147iRT133..GL;RT130,132,TT13#197809-198205

2G,T=2.0,2G

main90937-01148iRT133..GL;RT130,132,TT13#197809-198205

4G,T=2.0,4G

main90937-01149iRT133..GL;RT130,132,TT13#197809-198205

6G,L=12.4,6G

main90937-01150iRT133..GL;RT130,132,TT13#197809-198205

8G,L=16.6,8G

main90937-01151iRT133..GL;RT130,132,TT13#197809-198205

12G,L=24.9,12G

main90937-01152iRT133..GL;RT130,132,TT13#197809-198205

14G,L=29.0,14G

main90937-01153iRT133..GL;RT130,132,TT13#197809-198205

16G,L=33.2,16G

main90937-01154iRT133..GL;RT130,132,TT13#197809-198205

18G,L=37.3,18G

main90937-01155iRT133..GL;RT130,132,TT13#197809-198205

22G,L=45.6,22G

main90937-01156iRT133..GL;RT130,132,TT13#197809-198205

24G,L=49.7,24G

main90937-01157iRT133..GL;RT130,132,TT13#197809-198205

26G,L=53.9,26G

main90937-01158iRT133..GL;RT130,132,TT13#197809-198205

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-20200iTT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198008-198112

3-JOINT

main37110-20200iRT130..STD..LNK..GEN;TT132..SED..RHD..(3FC,4F)..DLX197809-198008

NEW ZEALAND SPEC

main37110-20200iTT132..MTM..EUR197809-198108

main37110-20220iTT132..3FC..EUR197809-198108

main37110-20240iTT133..SED197908-198106

2-JOINT

main37110-20241iTT132..LHD..4F..LNK;TT132..RHD..MTM..LNK;TT132..(HT,LB)..LHD..5F198106-198112

2-JOINT

main37110-20250iRT13#,TT132..(HT,LB,SED)..(GEN,PHL)198008-198205

2-JOINT

main37110-20250iRT13#,TT132..GEN,PHL197809-198008

main37110-20270iTT133..WG197908-198106

main37110-20271iTT13#..4F..LEF198106-198112

main37110-20280iRT130,132..WG197809-198205

main37110-20300iXT130..3FC..LNK197908-198001

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iXT130198103-198301

main90101-08214iXT130197809-198103

*8-1.25PX25-12

sub90101-08262

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-14010iTT133197908-198106

main37302-14030iTT133..LNK;TT132..LHD..4F..LNK;TT132..RHD..MTM..LNK;TT132..(HT,LB)..LHD..5F198106-198112

main37302-20040iRT130,132;RT133..GL197809-198205

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iRT133..GL;RT130,132,TT13#197809-198205

37331COVER, SLIDING SHAFT DUST

main37331-12010iTT133197908-198112

main37331-30010iTT132197809-198205

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010iXT130..3FC..LNK197809-198205

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070iXT130..3FC..LNK197809-198205

T=2.375-2.425,T=2.40

main90521-29071iRT133..GL;RT130,132,TT13#197809-198205

T=2.425-2.475,T=2.45

main90521-29072iXT130..3FC..LNK197809-198205

T=2.475-2.525,T=2.50

main90521-29073iXT130..3FC..LNK197809-198205

T=2.525-2.575,T=2.55

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020iXT130..3FC..LNK197809-198205

9017008007

main90170-08007

9451200800

main94512-00800

11 parts on this diagram · 4 diagrams in section
