Toyota CORONA — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

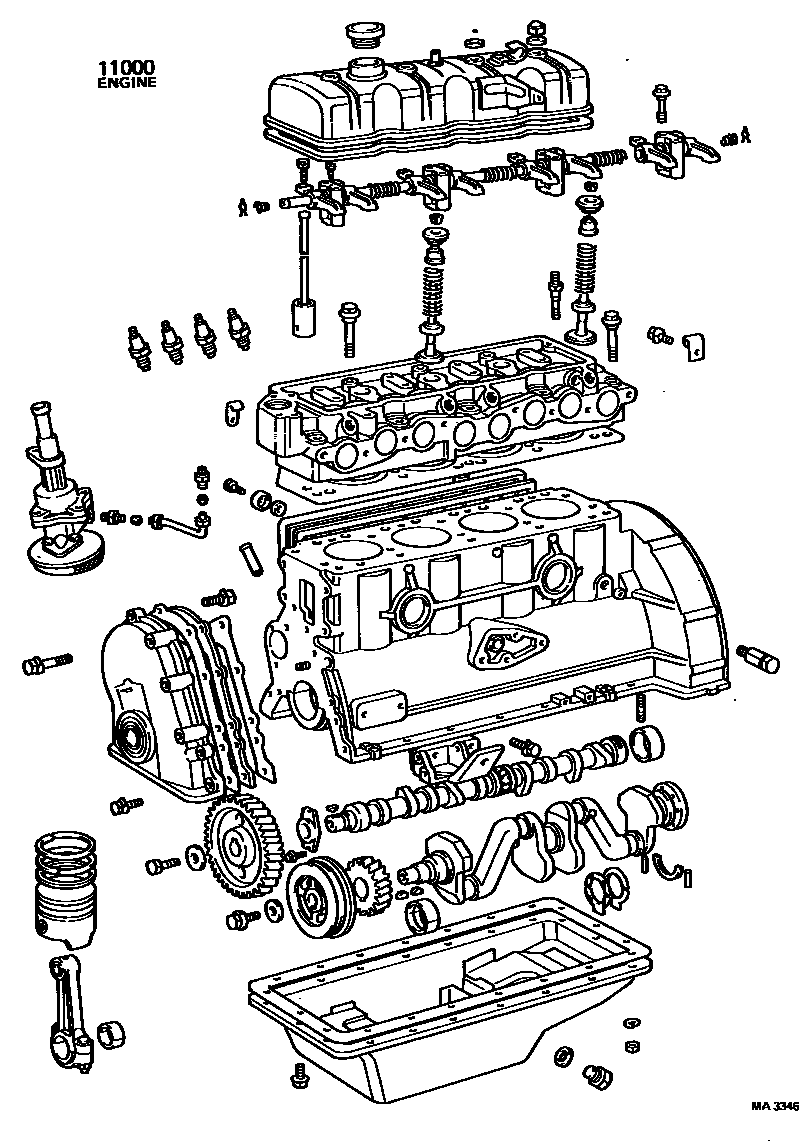

11000ENGINE ASSY, PARTIAL

main19000-31190i12R..RT100,110,116197308-197511

L/PCV

main19000-31200i12R..RT100,116197308-197511

W/PCV

main19000-31201i12R..RT100,116197511-197808

W/PCV

main19000-34070i18R..RT104,118..ARL197308-197408

sub12311-33010

sub12315-33010

main19000-34071i18R..RT104,118..STD197408-197509

main19000-34200i18R..RT104,114197308-197408

main19000-34201i18R..RT104,118..EUG197509-197701

main19000-34202i18R..RT104,118..EUG197701-197701

main19000-34203i18R..RT104,118..EUG197701-197808

main19000-34241i18R..RT104,114,118..ARL,GEN,SA197509-197701

main19000-34242i18R..RT104,114,118..ARL,GEN,SA197701-197905

sub19000-34243

main19000-34320i18RC..RT104,118197509-197606

sub11293-34071

sub90344-53011

main19000-34321i18RC..RT104,118197606-197704

sub19000-34322

main19000-34323i18RC..RT104,118197704-197905

sub19000-34324

sub25601-34021

sub25601-34041

main19000-34330i18R..RT104,118..ARL197604-197606

18RC

main19000-36050i16R..RT102,112,117..EUR,GEN197308-197408

sub12311-33010

sub12315-33010

main19000-36051i16R..RT102,112,117..EUR,GEN197408-197504

main19000-36090i16R..RT102,112,117..EUR,GEN197504-197509

1 parts on this diagram · 2 diagrams in section
