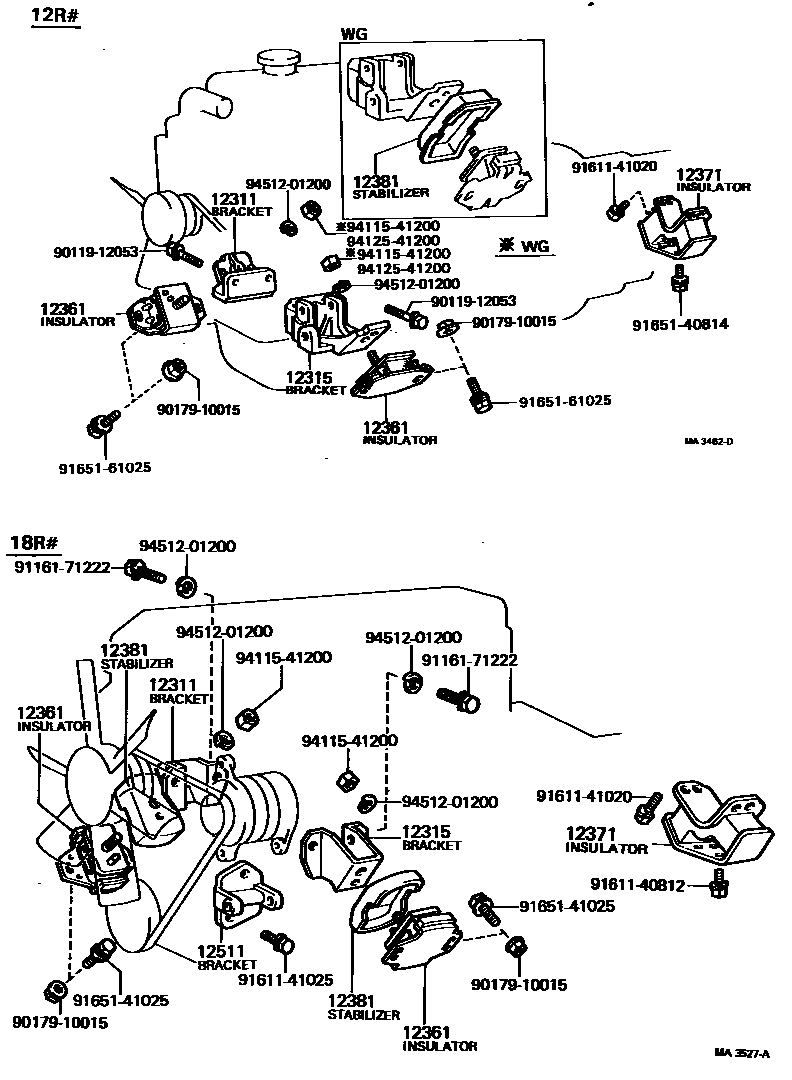

Toyota CORONA — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35020i21RC..RT133198108-198301

main12311-25050i2T,3T..TT13#197809-198001

sub12311-25051

main12311-25051i2T,3T..TT13#198001-198112

main12311-30010i12R#..RT130197809-198112

main12311-32010i1X..XT130197908-198301

main12311-33011i18R#..RT132197809-198205

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-38140i21RC..RT133198108-198301

main12312-25030i3T..TT132..RHD..GEN197811-198001

HONG KONG SPEC

sub12312-25031

main12312-25030i3T..TT132..EUR197809-198001

sub12312-25031

main12312-25031i3T..TT132..RHD..GEN198001-198108

HONG KONG SPEC

main12312-25040i2T,3T..TT13#..GEN197809-198001

main12312-25041i2T,3T..TT13#..GEN198001-198112

main12315-30021i12R#..RT130197809-198112

main12315-32010i1X..XT130197908-197911

main12315-32011i1X..XT130197911-198301

main12315-33011i18R#..RT132197809-198205

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-26040i3T..TT132197809-197904

sub12361-26041

main12361-26041i2T,3T..TT13#197904-198112

main12361-31060i12R#..RT130197809-198112

RH

main12361-32010i1X..XT130197908-198301

main12361-38090i18R..RT132197809-197908

sub12361-38130

main12361-38130i21RC,18R#..RT132,133197908-198301

main12362-31010i12R#..RT130..SED197809-197811

LH

sub12362-31011

main12362-31011i12R#..RT130..SED197811-198112

LH

main12362-31021i12R#..RT130..WG197810-198112

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-32020i1X..XT130..3FC197908-198008

main12371-33010i2T..TT133;3T..TT132..LHD..4F;3T..TT132..RHD..MTM;3T..TT132..(HT,LB)..LHD..5F197908-198112

main12371-34020i12R#..RT130197809-198205

main12371-34030i3T..TT132197809-198301

12381STABILIZER, ENGINE MOUNTING

main12381-26010i3T..TT132197809-197901

sub12381-26011

main12381-26011i2T,3T..TT13#197901-198112

main12381-31041i12R#..RT130..WG197810-198102

sub12381-31042

main12381-31042i12RM..RT130..LEF198102-198112

main12381-34020i18R#..RT132197810-198003

sub12381-34021

main12381-34021i18R#..RT132198003-198205

main12381-38011i18R..RT132197809-197810

12511BRACKET, ALTERNATOR, NO.1

main12511-25010i2T,3T..TT13#197809-198112

main12511-33011i18R#..RT132197809-198205

main12511-35010i21RC..RT133198108-198301

9011912053

main90119-12053

9017910015

main90179-10015

9116171222

main91161-71222

9161140812

main91611-40812

9161141020

main91611-41020

9161141025

main91611-41025

9165140814

main91651-40814

9165141025

main91651-41025

9165161025

main91651-61025

9411541200

main94115-41200

9412541200

main94125-41200

9451201200

main94512-01200

18 parts on this diagram · 4 diagrams in section
