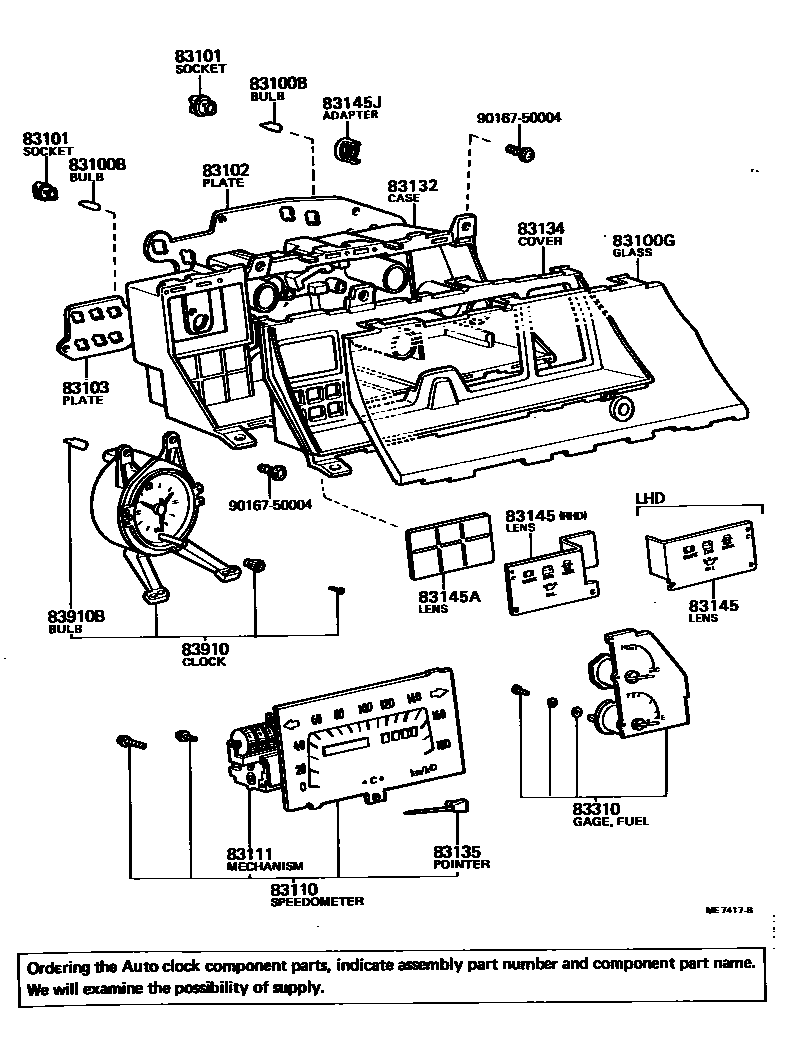

Toyota CORONA — METER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iRT133..GL;RT130,132,TT13#197809-198205

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034iRT133..GL;RT130,132,TT13#197809-198205

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-20840iRT13#,TT13#..RHD197809-198008

main83138-20870iRT13#,TT13#..LHD197809-198008

main83138-2B120iTT13#..RHD..STD198008-198112

main83138-2B130iTT13#..RHD198008-198112

W/CLOCK

main83138-2B170iRT132,133..GL198008-198112

W/CLOCK & TACHOMETER

main83138-2B290iRT130,132,TT13#..LHD..STD198008-198205

main83138-2B300iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

W/CLOCK

main83138-2B350iTT132..GL198008-198112

W/CLOCK & TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iRT133..GL;RT130,132,TT13#198008-198205

12V 1.4W

main83101-20040iRT133..GL;RT130,132,TT13#197809-198205

12V 3.4W

main83101-22010iRT13#,TT13#197809-198008

12V 1.4W

sub83101-14040

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-20130iRT13#,TT13#..RHD..(EUR,GEN)197809-198008

sub83247-20120

main83247-20150iRT13#,TT13#..LHD197809-198008

main83247-20220iRT132..ARL197908-198008

main83247-20240iTT13#..RHD198008-198112

sub83247-20230

main83247-20270iRT132,133..GL198008-198112

W/TACHOMETER

sub83247-20260

main83247-20290iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

main83247-20310iRT130,TT13#..LHD..DLX..LNK..(GEN,PHL)198008-198112

W/TACHOMETER

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-20140iRT13#,TT13#..RHD197809-198008

main83247-20180iRT13#,TT13#..LHD197809-198008

83110SPEEDOMETER ASSY

main83110-20430iTT132..RHD..3FC197809-198008

KM

main83110-20440iTT132..RHD..3FC197809-198008

MILE & KM

main83110-20450iRT13#,TT133..LHD197809-198008

KM

main83110-20450iTT13#..LHD..GEN197909-198008

KM,MIDDLE EAST COUNTRY SPEC

main83110-20460iTT132..LHD..3FC197809-198008

MILE & KM

main83110-20490iTT132..RHD..MTM197809-198008

KM

sub83110-20430

main83110-20500iTT132..RHD..MTM197809-198008

MILE & KM

sub83110-20440

main83110-20510iTT132..LHD..MTM197809-198008

KM

sub83110-20450

main83110-20520iTT132..LHD..MTM197809-198008

MILE & KM

sub83110-20460

main83110-20540iRT132..ARL197908-198008

KM

main83110-20570iTT13#..RHD198008-198112

KM

sub83110-20590

main83110-20580iTT13#..RHD198008-198112

KM & MILE

main83110-20590iRT132,133..GL198008-198112

KM

main83110-20620iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

KM

main83110-20630iRT130,132,TT13#..LHD..(GEN,PHL)198008-198205

KM & MILE

main83110-20640iTT132..GL198008-198108

KM

83111MECHANISM, SPEEDOMETER

main83112-20770iRT13#,TT132..EUR,GEN,PHL197809-198008

KM

main83112-20780iRT13#,TT132..EUR,GEN197809-198008

MILE & KM

sub83112-20880

main83112-22420iRT132..ARL197908-198008

83132CASE, COMBINATION METER

main83132-20830iRT132..ARL197908-198008

main83132-20840iRT13#,TT13#..RHD..(EUR,GEN)197809-198008

main83132-20870iRT13#,TT13#..LHD197809-198008

main83132-2B140iTT13#..RHD198008-198112

main83132-2B170iRT132,133..GL198008-198112

W/TACHOMETER

main83132-2B290iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

main83132-2B350iRT130,TT13#..LHD..DLX..LNK..(GEN,PHL)198008-198112

W/TACHOMETER

83134COVER, COMBINATION METER, NO.1

main83133-20010iRT130,132,TT13#..LHD..STD198008-198205

main83133-20030iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

W/CLOCK

main83133-20090iTT132..GL198008-198112

W/CLOCK & TACHOMETER

main83134-20830iRT132..ARL197908-198008

main83134-20840iRT13#,TT13#..RHD..(EUR,GEN)197809-198008

main83134-20870iRT13#,TT13#..LHD197809-198008

main83134-2B120iTT13#..RHD..STD198008-198112

main83134-2B130iTT13#..RHD198008-198112

W/CLOCK

main83134-2B170iRT132,133..GL198008-198112

W/CLOCK & TACHOMETER

83135POINTER, SPEEDOMETER

main83135-20540iRT132..ARL197908-198008

main83135-20840iRT13#,TT132..EUR,GEN,PHL197809-198008

83145LENS, METER, NO.1

main83145-20070iRT13#,TT13#..RHD197809-198008

main83145-20080iRT13#,TT13#..LHD197809-198008

main83145-20130iTT13#..RHD198008-198112

main83145-20170iRT132,133..GL198008-198112

W/TACHOMETER

83145ALENS, METER, NO.2

main83145-20030iRT13#,TT13#197809-198008

main83145-20160iTT13#..RHD198008-198112

main83145-20200iTT13#..RHD..DLX..LNK198008-198112

W/TACHOMETER

main83145-20210iRT132,133..GL198008-198112

W/TACHOMETER

83145JADAPTER, METER BULB SOCKET

main83145-20100iRT13#,TT13#197809-198008

83310GAGE ASSY, FUEL RECEIVER

main83243-20040iRT13#,TT132..RHD197809-197908

main83243-20041iRT132,TT13#..RHD..(EUR,GEN)197908-198008

main83243-20050iRT13#,TT132..LHD197809-197908

main83243-20051iRT13#,TT13#..LHD197908-198008

main83243-20070iRT132..ARL197908-198008

main83243-20080iTT13#..LHD..GEN197909-198008

MIDDLE EAST COUNTRY SPEC

main83243-20110iTT13#..RHD198008-198112

W/TEMP GAGE

main83243-20120iRT132,133..GL198008-198112

W/THERMOMETER

main83243-20130iTT13#..RHD..DLX..LNK198008-198112

W/TACHOMETER & THERMOMETER

main83243-20150iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

W/TEMP GAGE

main83243-20170iRT132,TT13#..LHD..GEN198008-198112

W/TENP,MIDDLEEAST COUNTRY SPEC

main83243-20210iRT130,TT13#..LHD..DLX..LNK..(GEN,PHL)198008-198112

W/TACHOMETER & THERMOMETER

83910CLOCK ASSY

main83910-20170iRT13#,TT13#..DLX,STD197809-198008

sub83910-20190

main83910-20190iXT130;RT13#,TT132..DLX..GEN197809-198008

W/QUARTZ

main83910-20200iRT132..ARL197908-198008

DIGITAL

main83910-20240iTT132..GL197809-198008

W/QUARTZ

main83910-20260iTT13#..RHD198008-198112

main83910-20270iTT13#..RHD..DLX..LNK198008-198112

W/TACHOMETER

main83910-20280iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

main83910-20290iRT130,TT13#..LHD..DLX..LNK..(GEN,PHL)198008-198112

W/TACHOMETER

83910BBULB, CLOCK INDICATOR

main99132-12034iRT13#,TT132197809-198008

12V 3.4W,12V 3.4W

9016750004

main90167-50004

17 parts on this diagram · 7 diagrams in section
