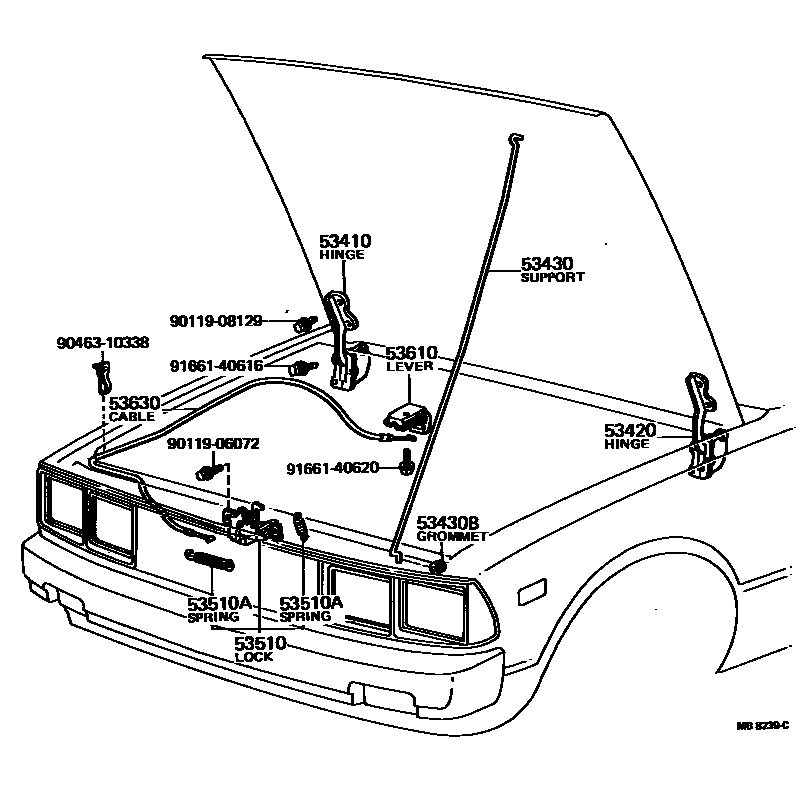

Toyota CORONA — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20050iRT13#,TT13#,XT130197809-198301

53420HINGE ASSY, HOOD, LH

main53410-20050iRT13#,TT13#,XT130197809-198301

53430SUPPORT ASSY, HOOD

main53451-14020iRT13#,TT13#,XT130197809-198301

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iRT13#,TT13#,XT130197809-198111

main90480-15011iTT132..RHD;RT13#,TT133,XT130;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198111-198301

53510LOCK ASSY, HOOD

main53510-20090iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main53510-20100iRT130,132,TT13#..LHD197809-198205

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iRT13#,TT13#,XT130197809-198301

WD=0.9,CW=21.25,OD=9

main90506-23004iRT13#,TT13#,XT130197809-198301

OD=15.5

sub90506-20009

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-20050-01iRT13#,TT13#,XT130197809-198301

BLACK,BLACK,TRIM2#

sub53601-16010

sub53601-20050

main53601-20050-02iRT13#,TT13#,XT130..HT,LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub53601-16010

sub53601-20050

main53601-20050-05iXT130197809-198101

BEIGE,BEIGE,TRIM4#

sub53601-16010

sub53601-20050

main53601-20050-06iRT13#,TT13#,XT130198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub53601-16010

sub53601-20050

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20110iRT13#,TT13#,XT130197809-198301

NIPPON CABLE

main53630-20120iRT13#,TT13#,XT130197809-198301

CHUO HATUJO

9011906072

main90119-06072

9011908129

main90119-08129

9046310338

main90463-10338

9166140616

main91661-40616

9166140620

main91661-40620

13 parts on this diagram · 1 diagram in section
