Toyota CORONA — HEATING & AIR CONDITIONING - SET

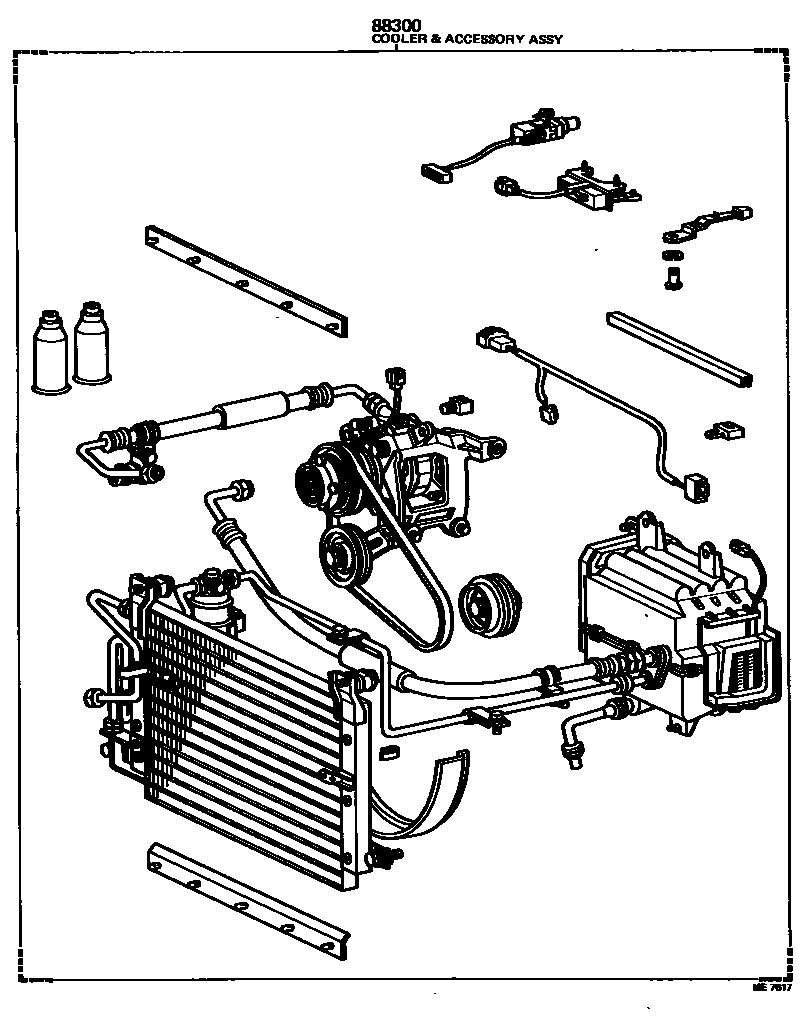

88300COOLER & ACCESSORY ASSY

main88300-20590iRT130..RHD197809-197908

main88300-20600iTT132..LHD197809-197908

main88300-20601iTT13#..LHD197908-198008

main88300-20610iRT132..LHD197809-198008

main88300-20630iRT130..LHD..GEN197809-197908

main88300-20650iRT132..RHD..(3FC,4F)197809-198008

W/BOOST VENTILATOR

main88300-20660iRT132..LHD197809-198008

W/BOOST VENTILATOR

main88300-20670iRT130..RHD197809-197908

W/BOOST VENTILATOR

main88300-20680iRT130..LHD..GEN197809-197908

W/BOOST VENTILATOR

main88300-20810iRT132..RHD..(3FC,4F)197809-198008

main88300-20820iTT132..RHD197809-197908

main88300-20821iTT13#..RHD197908-198008

main88300-20830iRT132..ARL197908-198008

main88300-20840iTT132..RHD..GEN197809-197908

W/BOOST VENTILATOR

main88300-20841iTT13#..RHD..GEN197908-198008

W/BOOST VENTILATOR

main88300-20850iTT132..LHD197809-197908

W/BOOST VENTILATOR

main88300-20851iTT13#..LHD197908-198008

W/BOOST VENTILATOR

main88300-20880iRT133198108-198301

main88300-2B020iRT132..3FC198003-198008

main88300-2B130iTT13#..RHD198008-198112

main88300-2B250iRT132..3FC198008-198108

main88300-2B260iRT132..5F198008-198108

main88300-2B270iTT13#..LHD198008-198112

main88300-2B280iRT132..GEN198008-198205

main88300-2B290iTT13#..LHD..GEN198008-198112

W/BOOST VENTILATOR

main88300-2B300iRT132..GEN198008-198205

W/BOOST VENTILATOR

main88300-2B310iTT13#..RHD198008-198112

W/BOOST VENTILATOR

1 parts on this diagram · 1 diagram in section
