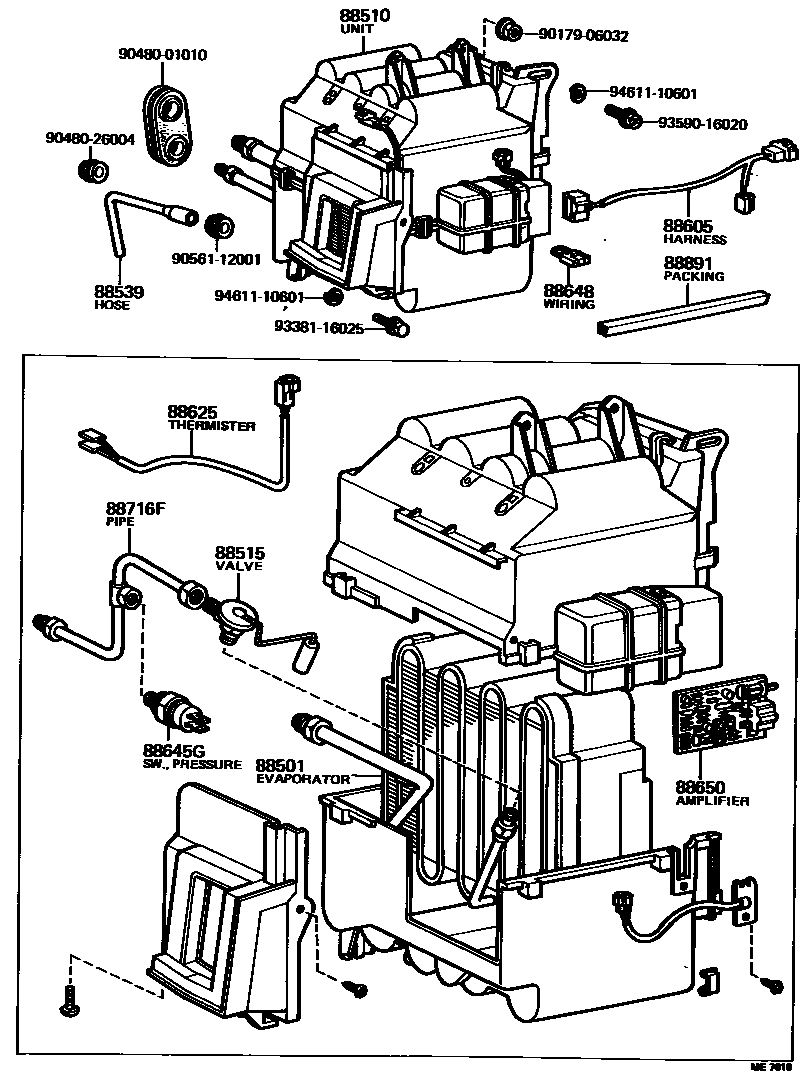

Toyota CORONA — HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20060iRT13#,TT132..LHD..(EUR,GEN)197809-197902

sub88501-20110

main88501-20070iRT13#,TT132..RHD197809-197902

sub88501-20080

sub88501-20120

main88501-20110iRT13#,TT13#..LHD..(EUR,GEN)197902-198008

main88501-20120iRT13#,TT132..RHD197902-198008

sub88501-20130

main88501-20150iRT132,TT13#..LHD198008-198205

main88501-20160iTT13#..RHD;RT132,133..ARL198008-198301

88510UNIT ASSY, COOLER

main88510-20150iRT13#,TT132..LHD..(EUR,GEN)197809-197902

sub88510-20210

main88510-20160iRT13#,TT132..RHD197809-197902

sub88510-20220

main88510-20210iRT132,TT13#..LHD197902-198008

main88510-20220iRT13#,TT13#..RHD197902-198008

main88510-20260iRT132,TT13#..LHD198008-198205

main88510-20280iRT132,133..ARL198008-198301

main88510-20290iTT13#..RHD198008-198112

88515VALVE, COOLER EXPANSION

main88515-14020iRT13#,TT132..LHD..(EUR,GEN)197809-197902

sub88515-20040

main88515-20040iRT13#,TT132..RHD197809-198004

sub88515-16031

main88515-20050iRT132,TT13#..LHD198004-198301

sub88515-20051

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20080iRT13#,TT13#..ARL,EUR,GEN197809-198301

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20130iTT13#..LHD197908-198008

main88605-20131iRT132,133..ARL198008-198301

main88605-20160iRT13#,TT132..LHD..(EUR,GEN)197809-198008

main88605-20180iTT132..LHD..EUR197809-198008

W/BOOST VENTILATOR

main88605-20190iRT13#,TT13#..RHD197809-198008

sub88605-20130

main88605-20200iTT13#198008-198112

W/BOOST VENTILATOR

main88605-20280iTT13#..RHD198008-198112

88625THERMISTOR, COOLER, NO.1

main88625-20060iRT13#,TT13#..ARL,EUR,GEN197809-198301

sub88625-87001

88645GSWITCH, PRESSURE

main88645-22010iRT13#,TT13#..ARL,EUR,GEN197809-198111

sub88645-30250

main88645-22020iTT13#..RHD;RT132,133..ARL197910-198301

sub88645-30250

main88645-30250iRT132,TT133..LHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198111-198205

88648WIRING, COOLER, NO.1

main88648-20190iRT13#,TT132..GEN197809-198112

W/BOOST VENTILATOR

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14070iRT132,TT13#197910-198301

main88650-16020iTT13#..RHD198008-198112

main88650-20100iRT13#,TT13#..ARL,EUR,GEN197809-197910

sub88650-14051

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-20450iRT13#,TT13#..LHD197902-198004

main88716-20460iRT13#,TT132..RHD197809-198004

main88716-20510iRT132,TT132..RHD198004-198205

main88716-20530iRT13#,TT13#..LHD198004-198008

main88716-20590iTT13#..RHD;RT132,133..ARL198008-198301

88891PACKING (FOR COOLER)

main88578-20070iTT13#;RT132..ARL197809-198301

L=245

9017906032

main90179-06032

9048001010

main90480-01010

9048026004

main90480-26004

9056112001

main90561-12001

9338116025

main93381-16025

9359016020

main93590-16020

9461110601

main94611-10601

18 parts on this diagram · 1 diagram in section
