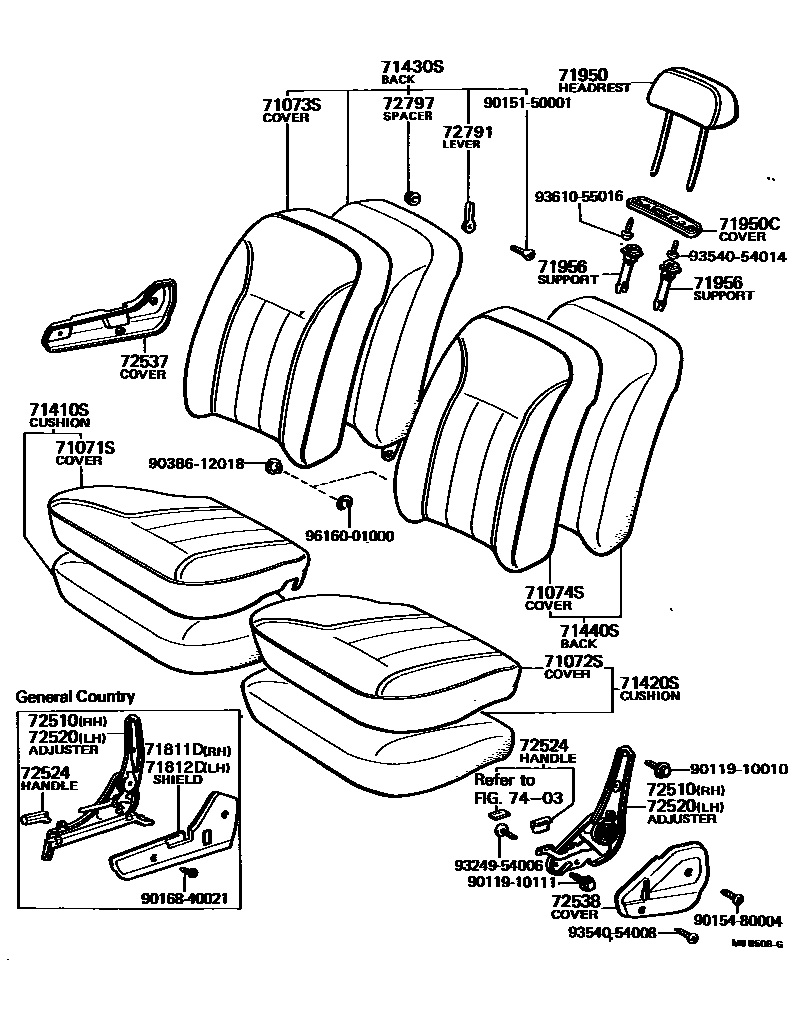

Toyota CORONA — FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-20580-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71071-20580-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20580-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71071-20581-02iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20581-03iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,GRAY,GRAY,TRIM2#

main71071-20581-06iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71071-20610-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

sub71071-20580

main71071-20610-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,TRIM3#

sub71071-20580

main71071-20610-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,TRIM4#

sub71071-20580

main71071-20620-01iRT132,TT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

sub71071-20630

main71071-20620-02iRT132,TT132..RHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

sub71071-20630

main71071-20620-05iRT132,TT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

sub71071-20630

main71071-20630-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71071-20630-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71071-20630-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71071-20631-02iRT132,133,TT132..GL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71071-20631-03iRT132,133,TT132..GL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71071-20631-06iRT132,133,TT132..GL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71071-20641-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20641-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71071-20641-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71071-20651-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71071-20680-01iTT132..4F..DLX..LEF197809-197902

FB-A,BLACK,BLACK,TRIM2#

main71071-20680-02iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20680-05iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,BEIGE,BEIGE,TRIM4#

main71071-20681-01iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,BLACK,BLACK,TRIM2#

main71071-20681-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20681-05iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71071-20682-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71071-20682-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71071-20682-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71071-20690-01iRT13#,TT132..WG..4F197809-197902

PF,BLACK,BLACK,TRIM2#

main71071-20690-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,DARK WINE,RED/MAROON,TRIM3#

main71071-20690-05iRT13#,TT132..WG..4F197809-197902

PF,BEIGE,BEIGE,TRIM4#

main71071-20691-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198205

PF,BLACK,BLACK,TRIM2#

main71071-20691-02iRT130,132,TT13#..SED197902-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71071-20691-05iRT13#,TT13#..WG..4F197902-198008

PF,BEIGE,BEIGE,TRIM4#

main71071-20691-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-20220-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71072-20220-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20220-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71072-20221-02iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20221-03iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,GRAY,GRAY,TRIM2#

main71072-20221-06iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71072-20250-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

sub71072-20220

main71072-20250-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,TRIM3#

sub71072-20220

main71072-20250-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

sub71072-20220

main71072-20260-01iRT132,TT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

sub71072-20270

main71072-20260-02iRT132,TT132..RHD..GL197809-198008

FB-C,DARK WINE,TRIM3#

sub71072-20270

main71072-20260-05iRT132,TT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

sub71072-20270

main71072-20270-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71072-20270-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71072-20270-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71072-20271-02iRT132,133,TT132..GL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71072-20271-03iRT132,133,TT132..GL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71072-20271-06iRT132,133,TT132..GL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71072-20281-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20281-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71072-20281-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71072-20291-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71072-20320-01iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,BLACK,BLACK,TRIM2#

main71072-20320-02iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20320-05iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,BEIGE,BEIGE,TRIM4#

main71072-20321-01iTT132..4F..DLX..LEF197902-198008

FB-A,BLACK,BLACK,TRIM2#

main71072-20321-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20321-05iTT132..4F..DLX..LEF197902-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71072-20322-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71072-20322-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71072-20322-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71072-20330-01iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,BLACK,BLACK,TRIM2#

main71072-20330-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,DARK WINE,RED/MAROON,TRIM3#

main71072-20330-05iRT13#,TT132..WG..4F197809-197902

PF,BEIGE,BEIGE,TRIM4#

main71072-20331-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198205

PF,BLACK,BLACK,TRIM2#

main71072-20331-02iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71072-20331-05iRT13#,TT13#..WG..4F197902-198008

PF,BEIGE,BEIGE,TRIM4#

main71072-20331-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-20590-01iTT132..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71073-20590-02iTT132..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20590-05iTT132..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71073-20591-02iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20591-03iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71073-20591-06iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71073-20630-01iRT132,TT132..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71073-20630-02iRT132,TT132..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71073-20630-05iRT132,TT132..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71073-20631-02iRT132,133,TT132..GL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71073-20631-03iRT132,133,TT132..GL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71073-20631-06iRT132,133,TT132..GL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71073-20651-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71073-20670-01iTT132..4F..DLX..LEF197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71073-20670-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20670-05iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71073-20671-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20671-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71073-20671-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71073-20680-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197809-198205

PF,BLACK,BLACK,TRIM2#

main71073-20680-02iRT130,132,TT13#..SED197809-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71073-20680-05iRT13#,TT13#..WG..4F197809-198008

PF,BEIGE,BEIGE,TRIM4#

main71073-20680-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-20670-01iTT132..4F..DLX..LEF197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71073-20670-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20670-05iTT132..4F..DLX..LEF197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71073-20671-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71073-20671-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71073-20671-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71073-20680-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197809-198205

PF,BLACK,BLACK,TRIM2#

main71073-20680-02iRT130,132,TT13#..SED197809-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71073-20680-05iRT13#,TT13#..WG..4F197809-198008

PF,BEIGE,BEIGE,TRIM4#

main71073-20680-06iRT130,132,TT13#..SED198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

main71074-20340-01iTT132..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71074-20340-02iTT132..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71074-20340-05iTT132..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71074-20341-02iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71074-20341-03iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71074-20341-06iRT130,132,TT13#..(LB,SED)..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71074-20380-01iRT132,TT132..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71074-20380-02iRT132,TT132..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71074-20380-05iRT132,TT132..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71074-20381-02iRT132,133,TT132..GL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71074-20381-03iRT132,133,TT132..GL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71074-20381-06iRT132,133,TT132..GL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71074-20401-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-20621-02iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20621-03iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,GRAY,GRAY,TRIM2#

main71410-20621-06iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71410-20670-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71410-20670-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20670-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71410-20680-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71410-20680-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20680-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71410-20681-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20681-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71410-20681-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71410-20690-01iRT132,TT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71410-20690-02iRT132,TT132..RHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71410-20690-05iRT132,TT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71410-20711-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71410-20740-01iTT132..4F..DLX..LEF197809-197902

FB-A,BLACK,BLACK,TRIM2#

main71410-20740-02iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20740-05iTT132..4F..DLX..LEF197809-197902

FB-A,BEIGE,BEIGE,TRIM4#

main71410-20741-01iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,BLACK,BLACK,TRIM2#

main71410-20741-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20741-05iTT132..4F..DLX..LEF197902-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71410-20742-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71410-20742-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71410-20742-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71410-20750-01iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,BLACK,BLACK,TRIM2#

main71410-20750-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,DARK WINE,RED/MAROON,TRIM3#

main71410-20750-05iRT13#,TT132..WG..4F197809-197902

PF,BEIGE,BEIGE,TRIM4#

main71410-20751-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198205

PF,BLACK,BLACK,TRIM2#

main71410-20751-02iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71410-20751-05iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197902-198008

PF,BEIGE,BEIGE,TRIM4#

main71410-20751-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

main71410-20800-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71410-20800-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71410-20800-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71410-20801-02iTT132..GL198008-198108

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71410-20801-03iTT132..GL198008-198108

FB-C,GRAY,GRAY,TRIM2#

main71410-20801-06iTT132..GL198008-198108

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71410-20880-02iRT132,133..ARL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71410-20880-03iRT132,133..ARL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71410-20880-06iRT132,133..ARL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-20242-02iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20242-03iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,GRAY,GRAY,TRIM2#

main71420-20242-06iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71420-20270-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71420-20270-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20270-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71420-20280-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71420-20280-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20280-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71420-20281-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20281-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71420-20281-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71420-20290-01iRT132,TT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71420-20290-02iRT132,TT132..RHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71420-20290-05iRT132,TT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71420-20291-02iRT132,133..ARL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71420-20291-03iRT132,133..ARL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71420-20291-06iRT132,133..ARL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71420-20300-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71420-20300-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71420-20300-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71420-20301-02iTT132..GL198008-198108

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71420-20301-03iTT132..GL198008-198108

FB-C,GRAY,GRAY,TRIM2#

main71420-20301-06iTT132..GL198008-198108

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71420-20321-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71420-20350-01iTT132..4F..DLX..LEF197809-197902

FB-A,BLACK,BLACK,TRIM2#

main71420-20350-02iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20350-05iRT130..SED..PHL;RT13#,TT132..(HT,LB,SED)..DLX..GEN197809-197902

FB-A,BEIGE,BEIGE,TRIM4#

main71420-20351-01iTT132..4F..DLX..LEF197902-198008

FB-A,BLACK,BLACK,TRIM2#

main71420-20351-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20351-05iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197902-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71420-20352-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71420-20352-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71420-20352-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71420-20360-01iRT13#,TT132..WG..4F197809-197902

PF,BLACK,BLACK,TRIM2#

main71420-20360-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,DARK WINE,RED/MAROON,TRIM3#

main71420-20360-05iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT132..SED..LNK197809-197902

PF,BEIGE,BEIGE,TRIM4#

main71420-20361-01iRT13#,TT13#..WG..4F197902-198205

PF,BLACK,BLACK,TRIM2#

main71420-20361-02iRT130,132,TT13#..SED197902-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71420-20361-05iRT13#,TT13#..WG..4F197902-198008

PF,BEIGE,BEIGE,TRIM4#

main71420-20361-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-20601-02iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20601-03iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,GRAY,GRAY,TRIM2#

main71430-20601-06iTT13#..(LB,SED)..RHD198008-198112

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71430-20630-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71430-20630-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20630-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71430-20640-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71430-20640-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20640-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71430-20641-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20641-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71430-20641-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71430-20650-01iTT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71430-20650-02iTT132..RHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71430-20650-05iTT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71430-20660-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71430-20660-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71430-20660-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71430-20661-02iRT132,133..ARL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71430-20661-03iRT132,133..ARL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71430-20661-06iRT132,133..ARL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71430-20681-01iRT130,132..4F198008-198205

HIGH BACK,BLACK

main71430-20710-01iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71430-20710-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20710-05iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71430-20711-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71430-20711-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71430-20711-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71430-20720-01iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197809-198205

PF,BLACK,BLACK,TRIM2#

main71430-20720-02iRT130,132,TT13#..SED197809-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71430-20720-05iRT13#,TT13#..WG..4F197809-198008

PF,BEIGE,BEIGE,TRIM4#

main71430-20720-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

main71430-20780-01iRT132..ARL197908-198008

FB-C,BLACK,BLACK,TRIM2#

main71430-20780-02iRT132..ARL197908-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71430-20780-05iRT132..ARL197908-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71430-20840-02iTT132..GL198008-198108

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71430-20840-03iTT132..GL198008-198108

FB-C,GRAY,GRAY,TRIM2#

main71430-20840-06iTT132..GL198008-198108

FB-C,LIGHT BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-20331-02iTT13#..(LB,SED)..RHD198008-198205

FULL FB-A,DARK WINE,RED/MAROON,TRIM3#

main71440-20331-03iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,GRAY,GRAY,TRIM2#

main71440-20331-06iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB-A,LIGHT BROWN,BROWN,TRIM4#

main71440-20360-01iTT132..RHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71440-20360-02iTT132..RHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71440-20360-05iTT132..RHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71440-20370-01iTT132..LHD..DLX..EUR197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71440-20370-02iTT132..LHD..DLX..EUR197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71440-20370-05iTT132..LHD..DLX..EUR197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71440-20380-01iRT132,TT132..RHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71440-20380-02iRT132,TT132..RHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71440-20380-05iRT132,TT132..RHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71440-20390-01iTT132..LHD..GL197809-198008

FB-C,BLACK,BLACK,TRIM2#

main71440-20390-02iTT132..LHD..GL197809-198008

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71440-20390-05iTT132..LHD..GL197809-198008

FB-C,BEIGE,BEIGE,TRIM4#

main71440-20391-02iTT132..GL198008-198108

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71440-20391-03iTT132..GL198008-198108

FB-C,GRAY,GRAY,TRIM2#

main71440-20391-06iTT132..GL198008-198108

FB-C,LIGHT BROWN,BROWN,TRIM4#

main71440-20411-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71440-20440-01iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,BLACK,BLACK,TRIM2#

main71440-20440-02iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,DARK WINE,RED/MAROON,TRIM3#

main71440-20440-05iRT130..SED..PHL;RT13#,TT13#..(HT,LB,SED)..DLX..GEN197809-198008

FB-A,BEIGE,BEIGE,TRIM4#

main71440-20441-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB-A,DARK WINE,RED/MAROON,TRIM3#

main71440-20441-03iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,GRAY,GRAY,TRIM2#

main71440-20441-06iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB-A,LIGHT BROWN,BROWN,TRIM4#

main71440-20450-01iRT13#,TT13#..WG..4F197809-198205

PF,BLACK,BLACK,TRIM2#

main71440-20450-02iTT13#..SED;RT130..SED..LEF;RT130..LHD..LNK;RT132..SED..LNK197809-198205

PF,DARK WINE,RED/MAROON,TRIM3#

main71440-20450-05iRT13#,TT13#..WG..4F197809-198008

PF,BEIGE,BEIGE,TRIM4#

main71440-20450-06iRT130,132,TT13#..SED,WG198008-198205

PF,LIGHT BROWN,BROWN,TRIM4#

main71440-20511-02iRT132,133..ARL198008-198301

FB-C,DARK WINE,RED/MAROON,TRIM3#

main71440-20511-03iRT132,133..ARL198008-198301

FB-C,GRAY,GRAY,TRIM2#

main71440-20511-06iRT132,133..ARL198008-198301

FB-C,LIGHT BROWN,BROWN,TRIM4#

71811DSHIELD, FRONT SEAT CUSHION, RH

71812DSHIELD, FRONT SEAT CUSHION, LH

71950HEADREST ASSY, FRONT SEAT

main71910-14170-01iRT13#..DLX;TT132..(HT,LB)..GEN;TT132..RHD..3FC..DLX..LNK..GEN;TT132..SED..LHD..MTM..DLX..GEN197809-198008

BLACK,BLACK,TRIM2#

sub71910-14170

main71910-14170-01iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,BLACK,BLACK,TRIM2#

sub71910-14170

main71910-14170-02iRT13#..DLX;TT132..(HT,LB)..GEN;TT132..RHD..3FC..DLX..LNK..GEN;TT132..SED..LHD..MTM..DLX..GEN197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub71910-14170

main71910-14170-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

sub71910-14170

main71910-14170-05iRT13#..DLX;TT132..(HT,LB)..GEN;TT132..RHD..3FC..DLX..LNK..GEN;TT132..SED..LHD..MTM..DLX..GEN197809-198008

BEIGE,BEIGE,TRIM4#

sub71910-14170

main71910-14170-26iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

sub71910-14170

main71910-20210-01iRT130..WG..GEN;TT132..RHD..DLX..LEF197809-198008

BLACK,BLACK,TRIM2#

main71910-20210-01iTT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198008

NEW ZEALAND SPEC,BLACK,BLACK,TRIM2#

main71910-20210-02iTT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-20210-05iTT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198008

BEIGE,BEIGE,TRIM4#

main71910-20210-05iRT132..SED..LEF197809-198008

NEW ZEALAND SPEC,BEIGE,BEIGE,TRIM4#

main71910-20260-01iTT132..GL197809-198008

BLACK,BLACK,TRIM2#

main71910-20260-02iTT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-20260-05iTT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main71910-20280-01iRT132,TT132..ARL,EUR197908-198008

BLACK,BLACK,TRIM2#

main71910-20280-02iRT132,TT132..ARL,EUR197908-198008

DARK WINE,RED/MAROON,TRIM3#

main71910-20280-05iRT132,TT132..ARL,EUR197908-198008

BEIGE,BEIGE,TRIM4#

main71910-20300-02iRT132,133,TT132..GL198008-198301

DARK WINE,RED/MAROON,TRIM3#

main71910-20300-03iRT132,133,TT132..GL198008-198301

GRAY,GRAY,TRIM2#

main71910-20300-06iRT132,133,TT132..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main71910-22240-01iTT13#..SED..LHD..STD198008-198112

BLACK,BLACK,TRIM2#

main71910-22240-02iTT13#..SED..LHD..STD198008-198112

DARK WINE,RED/MAROON,TRIM3#

main71910-22240-06iTT13#..SED..LHD..STD198008-198112

LIGHT BROWN,BROWN,TRIM4#

main71910-22310-01iRT130,132..SED198008-198205

VL,BLACK,BLACK,TRIM2#

main71910-22310-01iRT130,132..SED198008-198205

BLACK,BLACK,TRIM2#

main71910-22310-02iTT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN198008-198112

VL,DARK WINE,RED/MAROON,TRIM3#

main71910-22310-16iRT130,132,TT13#..WG198008-198205

LIGHT BROWN,BROWN,TRIM4#

main71910-22310-16iTT133..SED;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN198008-198112

VL,LIGHT BROWN,BROWN,TRIM4#

main71910-22360-01iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB,BLACK,BLACK,TRIM2#

sub71910-22360

main71910-22360-02iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB,DARK WINE,RED/MAROON,TRIM3#

sub71910-22360

main71910-22360-16iRT130,132,TT13#..(LB,SED)..LHD..(DLX,STD)198008-198205

FULL FB,LIGHT BROWN,BROWN,TRIM4#

sub71910-22360

71950CCOVER, FRONT SEAT HEADREST UNDER

main71922-14010-01iTT132..GL197809-198008

BLACK,BLACK,TRIM2#

sub71922-14010

main71922-14010-02iTT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub71922-14010

main71922-14010-06iTT132..GL197809-198008

LIGHT BROWN,BROWN,TRIM4#

sub71922-14010

main71922-14020-01iRT13#..DLX;TT132..(HT,LB)..GEN;TT132..RHD..3FC..DLX..LNK..GEN;TT132..SED..LHD..MTM..DLX..GEN197809-198008

BLACK,BLACK,TRIM2#

sub71922-14020

main71922-14020-01iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,BLACK,BLACK,TRIM2#

sub71922-14020

main71922-14020-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

sub71922-14020

main71922-14020-26iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

sub71922-14020

main71922-22050-01iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

FULL FB,BLACK,BLACK,TRIM2#

sub71922-22050

main71922-22050-02iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

FULL FB,DARK WINE,RED/MAROON,TRIM3#

sub71922-22050

main71922-22050-16iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

FULL FB,LIGHT BROWN,BROWN,TRIM4#

sub71922-22050

71956SUPPORT, HEADREST

main71930-10060-01iRT130,132..SED198008-198205

VL,W/LOCK,BLACK,BLACK,TRIM2#

sub71930-10060

main71930-10060-01iTT132..HT..RHD;RT130,132..LB,WG;RT133,TT13#..LB,SED,WG198008-198301

FULL FB,W/LOCK,BLACK,BLACK,TRIM2#

sub71930-10060

main71930-10060-02iTT133..SED;RT132,133..ARL;TT132..RHD..LNK;TT132..(LB,SED)..LHD198008-198301

FULL FB,W/LOCK,DARK WINE,DARK WINE,TRIM3#

sub71930-10060

main71930-10060-26iRT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG198008-198111

FULL FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4#

sub71930-10060

main71931-10010-01iRT130,132..SED198008-198205

VL,W/O LOCK,BLACK,BLACK,TRIM2#

sub71931-10010

main71931-10010-01iTT132..HT..RHD;RT130,132..LB,WG;RT133,TT13#..LB,SED,WG198008-198301

FULL FB,W/O LOCK,BLACK,BLACK,TRIM2#

sub71931-10010

main71931-10010-02iTT133..SED;RT132,133..ARL;TT132..RHD..LNK;TT132..(LB,SED)..LHD198008-198301

FULL FB,W/O LOCK,DARK WINE,DARK WINE,TRIM3#

sub71931-10010

main71931-10010-26iRT13#..LB,WG;TT132..HT..RHD;TT13#..LB,SED,WG198008-198111

FULL FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4#

sub71931-10010

main71956-30020-01iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,W/O LOCK,BLACK,BLACK,TRIM2#

sub71956-30020

main71956-30020-01iTT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK197809-198008

W/O LOCK,BLACK,BLACK,TRIM2#

sub71956-30020

main71956-30020-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB,W/O LOCK,DARK WINE,DARK WINE,TRIM3#

sub71956-30020

main71956-30020-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED197809-198008

W/O LOCK,DARK WINE,DARK WINE,TRIM3#

sub71956-30020

main71956-30020-05iTT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK197809-198008

W/O LOCK,BEIGE,BEIGE,TRIM4#

sub71956-30020

main71956-30020-25iTT132..RHD;RT130,132,TT133;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198111-198205

SEMI FB,W/O LOCK,BEIGE,BEIGE,TRIM4#

sub71956-30020

main71956-30020-26iRT130,132,TT13#..GEN,PHL198008-198111

SEMI FB,W/O LOCK,LIGHT BROWN,BROWN,TRIM4#

sub71956-30020

main71990-30020-01iTT132..RHD;RT13#,TT133;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK197809-198008

W/LOCK,BLACK,BLACK,TRIM2#

sub71990-30020

main71990-30020-01iRT130,132,TT13#..GEN,PHL198008-198205

SEMI FB,W/LOCK,BLACK,BLACK,TRIM2#

sub71990-30020

main71990-30020-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)198008-198205

SEMI FB,W/LOCK,DARK WINE,DARK WINE,TRIM3#

sub71990-30020

main71990-30020-02iRT130..SED..LEF;RT130..LHD..LNK;RT132,TT13#..HT,LB,SED197809-198008

W/LOCK,DARK WINE,DARK WINE,TRIM3#

sub71990-30020

main71990-30020-05iRT13#;TT132..RHD;TT132..LHD..(DLX,GL);TT132..LHD..STD..LNK197809-198008

W/LOCK,BEIGE,BEIGE,TRIM4#

sub71990-30020

main71990-30020-25iTT132..RHD;RT130,132,TT133;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198111-198205

SEMI FB,W/LOCK,BEIGE,BEIGE,TRIM4#

sub71990-30020

main71990-30020-26iRT130,132,TT13#..GEN,PHL198008-198111

SEMI FB,W/LOCK,LIGHT BROWN,BROWN,TRIM4#

sub71990-30020

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72010-20060iTT132..LNK..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK197809-197902

GENERAL COUNTRY

main72010-20061iTT133..SED;RT130,132..4F;TT132..RHD..LNK;TT132..(LB,SED)..LHD..GEN198008-198205

W/TRACK

main72010-20061iTT13#..(LB,SED)..GEN;RT130..SED..LEF..GEN;RT13#..(LB,SED)..DLX..LNK197902-198008

GENERAL COUNTRY

main72010-91255iRT130,TT132..WG..4F197809-197902

GENERAL COUNTRY

main72010-91256iRT130,TT13#..WG..4F197902-198008

GENERAL COUNTRY

main72010-91256iTT13#..WG198008-198112

W/TRACK

main72010-95501iRT132..HT197809-197902

main72010-95502iTT132..HT..LHD197902-198112

main72510-20100iRT132..WG197809-198008

main72510-20120iXT130198008-198301

W/O TRACK

main72510-20130iTT13#..SED..LHD..STD198008-198112

SPLIT SEAT

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72020-20070iRT13#..DLX..LNK;TT132..LNK..GEN;RT130..SED..LEF..GEN197809-197902

GENERAL COUNTRY

main72020-20071iRT130,132..4F;TT132..HT..LHD;TT13#..(LB,SED)..GEN198008-198205

W/TRACK

main72020-20071iRT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN197902-198008

GENERAL COUNTRY

main72020-91255iRT130,TT132..WG..4F197809-197902

GENERAL COUNTRY

main72020-91256iTT13#..WG198008-198112

W/TRACK

main72020-91256iRT130,TT13#..WG..4F197902-198008

GENERAL COUNTRY

main72020-95501iTT132..HT..RHD198008-198112

main72520-20110iRT130..WG..RHD;TT132..RHD..DLX..LEF197809-198008

main72520-20130iXT130198008-198301

W/O TRACK

main72520-20140iTT13#..SED..LHD..STD198008-198112

SPLIT SEAT

main72520-95502iTT132..HT..RHD198008-198112

W/O TRACK

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-14010-01iRT132,TT132..HT197809-198205

RH,BLACK,BLACK,TRIM2#

sub72525-14010

main72525-14010-01iRT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN197809-198008

GENERAL COUNTRY,RH,BLACK,BLACK,TRIM2#

sub72525-14010

main72525-14010-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)197809-198205

RH,DARK WINE,DARK WINE,TRIM3#

sub72525-14010

main72525-14010-02iRT132,TT132..HT197809-198008

GENERAL COUNTRY,RH,DARK WINE,DARK WINE,TRIM3#

sub72525-14010

main72525-14010-06iRT132,TT132..HT197809-198008

GENERAL COUNTRY,RH,LIGHT BROWN,BROWN,TRIM4#

sub72525-14010

main72525-14010-06iRT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN197809-198008

RH,LIGHT BROWN,BROWN,TRIM4#

sub72525-14010

main72525-14010-26iRT130,132,TT13#..GEN,PHL198008-198205

RH,LIGHT BROWN,BROWN,TRIM4#

sub72525-14010

main72525-20050-01iTT133..WG..RHD;TT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD)197809-198301

RH,BLACK,BLACK,TRIM2#

sub72525-20050

main72525-20050-02iTT133..RHD..5F;TT133..RHD..STD..LNK;RT132..(LB,SED)..MTM..(GL,STD)197809-198301

RH,DARK WINE,RED/MAROON,TRIM3#

sub72525-20050

main72525-20050-05iTT132..EUR;RT130..STD..LNK..GEN197809-198008

RH,BEIGE,BEIGE,TRIM4#

sub72525-20050

main72525-20050-16iRT13#,TT13#198008-198301

RH,LIGHT BROWN,BROWN,TRIM4#

sub72525-20050

main72526-14010-01iRT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN197809-198205

LH,BLACK,BLACK,TRIM2#

sub72526-14010

main72526-14010-01iRT132,TT132..HT197809-198008

GENERAL COUNTRY,LH,BLACK,BLACK,TRIM2#

sub72526-14010

main72526-14010-02iRT130,132,TT13#..(HT,LB,SED)..(GEN,PHL)197809-198205

LH,DARK WINE,DARK WINE,TRIM3#

sub72526-14010

main72526-14010-02iRT13#..DLX..LNK;RT130..SED..LEF..GEN;TT13#..(HT,LB,SED)..GEN197809-198008

GENERAL COUNTRY,LH,DARK WINE,DARK WINE,TRIM3#

sub72526-14010

main72526-14010-06iRT13#..DLX..LNK;TT13#..MTM..GEN;RT130..LEF..GEN;TT132..3FC..LNK..GEN197809-198008

LH,LIGHT BROWN,BROWN,TRIM4#

sub72526-14010

main72526-14010-06iRT132,TT132..HT197809-198008

GENERAL COUNTRY,LH,LIGHT BROWN,BROWN,TRIM4#

sub72526-14010

main72526-14010-26iRT130,132,TT13#..GEN,PHL198008-198205

LH,LIGHT BROWN,BROWN,TRIM4#

sub72526-14010

main72526-20040-01iTT132..EUR;TT133..WG..RHD;RT130..STD..LNK..GEN197809-198301

LH,BLACK,BLACK,TRIM2#

sub72526-20040

main72526-20040-02iRT13#,TT13#..HT,LB,SED197809-198301

LH,DARK WINE,RED/MAROON,TRIM3#

sub72526-20040

main72526-20040-05iRT130..WG..RHD;TT132..RHD..DLX..LEF197809-198008

LH,BEIGE,BEIGE,TRIM4#

sub72526-20040

main72526-20040-16iXT130198008-198301

LH,LIGHT BROWN,BROWN,TRIM4#

sub72526-20040

72537COVER, RECLINING HINGE OUTER, RH

main71811-20050-01iTT133..WG..RHD;RT132,TT132..RHD..(ARL,EUR)197809-198301

BLACK,BLACK,TRIM2#

main71811-20050-02iRT132,TT132..RHD..(ARL,EUR)197809-198301

DARK WINE,RED/MAROON,TRIM3#

main71811-20050-05iTT133..WG..RHD;RT132,TT132..RHD..(ARL,EUR)197809-198008

BEIGE,BEIGE,TRIM4#

main71811-20050-06iRT132,133..GL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main71811-20060-01iTT132..LHD..EUR;RT130..STD..LNK..GEN197809-198301

BLACK,BLACK,TRIM2#

sub71811-20060

main71811-20060-02iTT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub71811-20060

main71811-20060-05iRT130..WG..RHD;TT132..RHD..DLX..LEF197809-198008

BEIGE,BEIGE,TRIM4#

sub71811-20060

main71811-20060-06iRT133,XT130..STD198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub71811-20060

main71811-20070-01iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2#

main71811-20070-02iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3#

main71811-20070-06iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4#

72538COVER, RECLINING HINGE OUTER, LH

main71812-20010-01iRT130,132,TT13#..(LB,SED)..LHD198008-198205

W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2#

main71812-20010-01iTT132..LHD..EUR197809-198008

BLACK,BLACK,TRIM2#

main71812-20010-02iTT132..LHD..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

main71812-20010-02iRT130,132,TT13#..(LB,SED)..LHD198008-198205

W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3#

main71812-20010-05iTT132..LHD..EUR197809-198008

BEIGE,BEIGE,TRIM4#

main71812-20010-06iRT130,132,TT13#..(LB,SED)..LHD198008-198205

W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4#

main71812-20020-01iTT133..WG..RHD;TT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198301

BLACK,BLACK,TRIM2#

sub71812-20020

main71812-20020-02iTT133..RHD..5F;RT132..SED..LEF;TT133..RHD..STD..LNK197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub71812-20020

main71812-20020-05iRT132..WG197809-198008

BEIGE,BEIGE,TRIM4#

sub71812-20020

main71812-20020-06iXT130198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub71812-20020

main71812-20050-01iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,BLACK,BLACK,TRIM2#

main71812-20050-02iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,DARK WINE,RED/MAROON,TRIM3#

main71812-20050-06iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER,L-BROWN,BROWN,TRIM4#

72791LEVER, LUMBAR SUPPORT

main72791-20010-01iRT132,TT132..GL197809-198008

BLACK,BLACK,TRIM2#

main72791-20010-02iRT132,TT132..GL197809-198008

DARK WINE,RED/MAROON,TRIM3#

main72791-20010-05iRT132,TT132..GL197809-198008

BEIGE,BEIGE,TRIM4#

main72791-30010-01iTT13#..(LB,SED)..RHD198008-198301

BLACK,BLACK,TRIM2#

sub72791-30010

main72791-30010-02iTT13#..(LB,SED)..RHD198008-198301

DARK WINE,RED/MAROON,TRIM3#

sub72791-30010

main72791-30010-16iTT13#..(LB,SED)..RHD198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub72791-30010

72797SPACER, LUMBAR SUPPORT

main72797-22010-01iRT132..ARL197908-198008

BLACK,BLACK,TRIM2#

sub72797-22010

main72797-22010-02iRT132..ARL197908-198008

DARK WINE,RED/MAROON,TRIM3#

sub72797-22010

main72797-22010-05iRT132..ARL197908-198008

BEIGE,BEIGE,TRIM4#

sub72797-22010

7403

9011910010

main90119-10010

9011910111

main90119-10111

9015150001

main90151-50001

9015480004

main90154-80004

9016840021

main90168-40021

9038612018

main90386-12018

9324954006

main93249-54006

9354054008

main93540-54008

9354054014

main93540-54014

9361055016

main93610-55016

9616001000

main96160-01000

32 parts on this diagram · 5 diagrams in section
