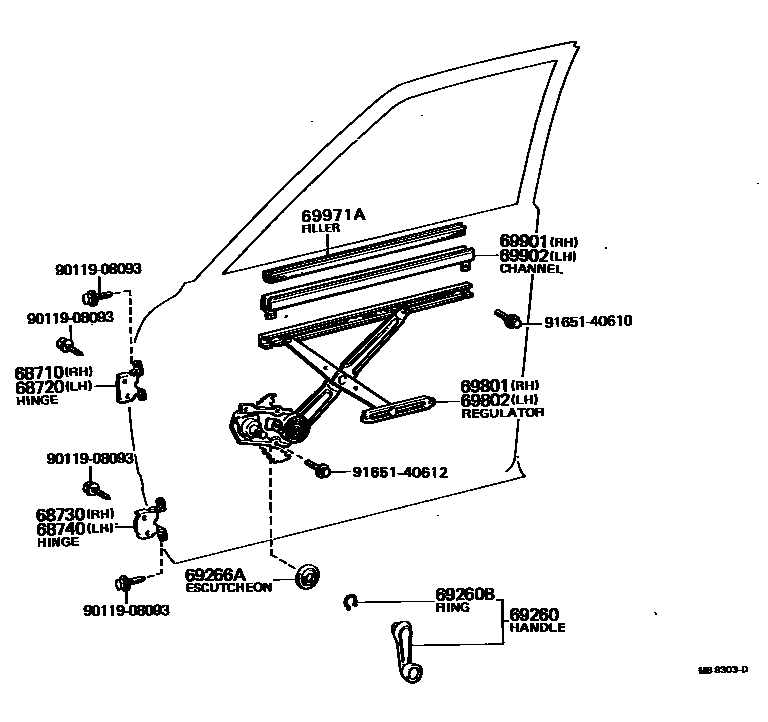

Toyota CORONA — FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68750-14010iRT13#,TT13#,XT130197809-198301

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68760-14010iRT13#,TT13#,XT130197809-198301

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20070iRT13#,TT13#,XT130197809-198301

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20070iRT13#,TT13#,XT130197809-198301

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010-01iRT13#,TT13#,XT130197809-198301

BLACK,BLACK,TRIM2#

sub69260-12010

main69260-12010-02iTT132..LHD..EUR197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub69260-12010

main69260-12010-05iTT132..LHD..EUR197809-198101

BEIGE,BEIGE,TRIM4#

sub69260-12010

main69260-12010-36iRT13#,TT13#198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub69260-12010

main69260-20050-01iTT132..RHD..EUR197809-198008

BLACK,BLACK,TRIM2#

sub69260-20050

main69260-20050-02iTT132..RHD..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub69260-20050

main69260-20050-05iTT132..RHD..EUR197809-198008

BEIGE,BEIGE,TRIM4#

sub69260-20050

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRT13#,TT13#,XT130198008-198301

sub90520-01274

main90520-01274iRT13#,TT13#,XT130197809-198008

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iRT13#,TT13#,XT130197903-198301

main69266-22010-01iRT13#,TT132197809-197903

BLACK,BLACK,TRIM2#

sub69266-22010

main69266-22010-02iRT13#,TT132..HT,LB,SED197809-197903

DARK WINE,RED/MAROON,TRIM3#

sub69266-22010

main69266-22010-05iRT13#,TT132197809-197903

BEIGE,BEIGE,TRIM4#

sub69266-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95504iRT132,TT132..HT197809-198112

main69810-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95504iRT132,TT132..HT197809-198112

main69820-20060iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12080iXT130197809-198301

main69901-20090iTT132..LB..LHD..4F..GEN198012-198112

SAUDI ARABIA SPEC

main69901-20090iRT132,133..GL198008-198301

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12080iRT13#,TT13#,XT130..LB,SED,WG197809-198301

main69901-20090iTT132..LB..LHD..4F..GEN198012-198112

SAUDI ARABIA SPEC

main69901-20090iRT132,133..GL198008-198301

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

sub69971-95110

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

15 parts on this diagram · 2 diagrams in section
