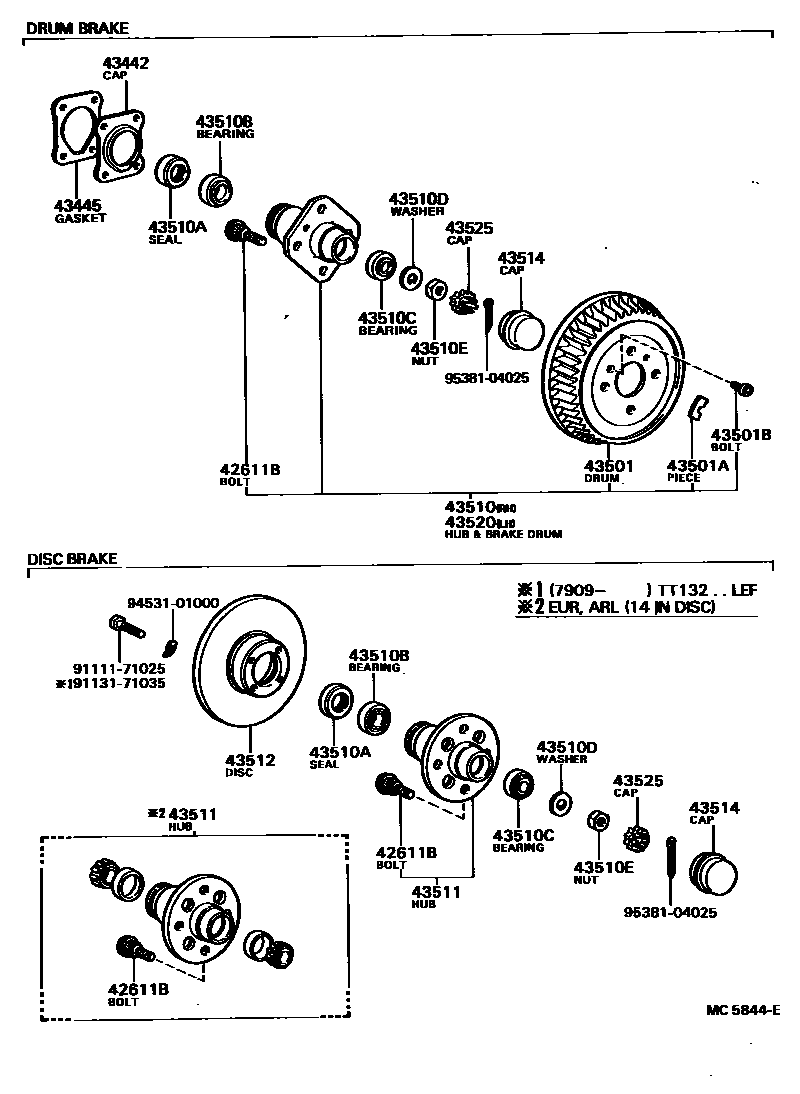

Toyota CORONA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iRT132..LEF;RT130..SED..LEF..PHL197809-198108

*12-1.5PX36-23.5,FR DRUM

sub90942-02047

main90942-02035iTT132..EUR197809-198112

*12-1.5PX36-23.5

sub90942-02047

main90942-02036iRT13#..ARL,GEN;RT130..WG..PHL;RT130..LNK..PHL197809-198205

*12-1.5PX33-20.5

sub90942-02048

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20030iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main43442-20030iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20030iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main43445-20030iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-20031iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main42431-20031iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01045iRT132..LEF;RT130..SED..LEF..PHL197809-198008

10G,10G

main90937-01045iRT130,TT133..SED..LEF..GEN197809-198112

10G,10G,TAXI SPEC

main90937-01046iRT130,TT133..SED..LEF..GEN197809-198112

25G,25G,TAXI SPEC

main90937-01046iRT130..SED..LEF197809-198008

25G,25G

main90937-01047iRT130..SED..LEF197809-198008

40G,40G

main90937-01047iRT130,TT133..SED..LEF..GEN197809-198112

40G,40G,TAXI SPEC

main90937-01065iRT130..SED..LEF..GEN197809-197902

55G

main90937-01065iRT132..LEF;RT130..SED..LEF..PHL197809-197902

55G,TAXI SPEC

main90937-01217iRT132..LEF;RT130..SED..LEF..PHL197902-198008

55G,55G

main90937-01217iRT130,TT133..SED..LEF..GEN197902-198112

55G,55G,TAXI SPEC

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main90113-10007iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-20080iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main43510-20080iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48122iRT13#,TT13#,XT130197809-198301

sub90311-48001

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31002iRT13#,TT13#,XT130197809-198008

main90368-31067iRT13#,TT13#,XT130198008-198301

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iRT13#,TT13#,XT130197809-198112

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iRT13#,TT13#,XT130197809-198301

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iRT13#,TT13#,XT130197809-198301

43511HUB, FRONT AXLE

main43502-20010iRT13#..ARL,GEN;RT130..WG..PHL;RT130..LNK..PHL197809-198205

main43502-29015iRT132,TT132..ARL,EUR197809-198112

sub43502-29035

43512DISC, FRONT

main43512-20040iTT13#..GEN197809-198112

main43512-20070iRT132..LEF197909-198205

main43512-22030iRT132,TT132,XT130..ARL,EUR197904-198301

main43512-22040iTT132..EUR197809-197904

sub43512-22030

43514CAP, FRONT HUB GREASE

main43514-22020iRT13#,TT13#,XT130197809-198301

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-20080iRT132..LEF;RT130..SED..LEF..PHL197809-198008

main43510-20080iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iRT13#,TT13#,XT130197809-198301

9111171025

main91111-71025

9113171035

main91131-71035

9453101000

main94531-01000

9538104025

main95381-04025

21 parts on this diagram · 1 diagram in section
