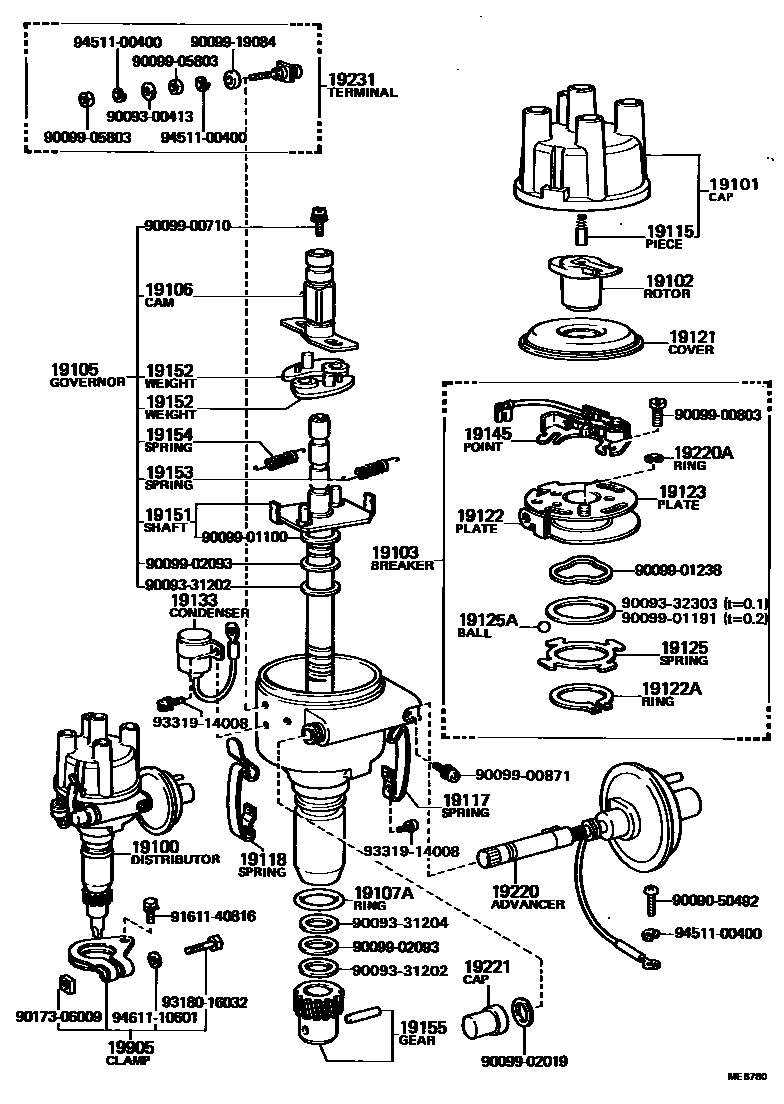

Toyota CORONA — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19100DISTRIBUTOR ASSY

main19100-26210i3T..TT132197809-198008

sub19100-28130

main19100-26310i2T..TT133197908-198112

sub19100-28130

main19100-31021i12R#..RT130197809-197912

sub19100-31100

main19100-31100i12RM..RT130197912-198112

main19100-33014i18R..RT132197809-197908

sub19100-34250

sub95411-19930

main19100-34202i18RC..RT132197908-198010

main19100-34250i18R..RT132197908-198205

sub19100-34260

main19100-34320i18RC..RT132198010-198108

main19100-37080i21RC..RT133198108-198301

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i12RM..RT130197908-198205

main19101-31013i12R#..RT130197809-197912

main19101-33012i3T..TT132197809-198112

main19101-35120i21RC..RT133198210-198301

main19101-38210i21RC..RT133198108-198210

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-15021i21RC..RT133198108-198301

sub19102-38210

main19102-22010i12R#..RT130197809-197910

sub19102-22012

main19102-22012i12RM..RT130197910-197912

sub19102-24121

main19102-26150i2T,3T..TT13#197809-198112

sub19102-26151

main19102-33012i12RM..RT130197809-198205

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-22011i12R#..RT130197809-197912

main19103-26210i2T,3T..TT13#197908-198112

main19103-33013i18R#..RT132197809-198205

19105GOVERNOR SUB-ASSY

main19105-26190i2T,3T..TT13#197809-198112

main19105-31021i12R#..RT130197809-197912

main19105-31030i12RM..RT130197912-198112

main19105-33013i18R..RT132197809-198205

main19105-34043i18RC..RT132197908-198108

main19105-37080i21RC..RT133198108-198301

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-31010i12R#..RT130197809-197912

main19106-31030i12RM..RT130197912-198112

sub19181-26010

main19106-33011i18R..RT132197809-197908

main19106-33013i18R..RT132197908-198205

main19106-38010i18RC..RT132197908-198108

main19106-38011i2T,3T..TT13#197809-198112

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i21RC,12R#,18R#..RT13#197809-198301

sub90099-14090

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i2T,3T..TT13#197809-198301

19117SPRING, DISTRIBUTOR CAP, A

main19117-30030i12R#..RT130197809-197912

main19117-33011i3T..TT132197809-198112

19118SPRING, DISTRIBUTOR CAP, B

main19118-30030i12R#..RT130197809-197912

main19118-33011i3T..TT132197809-198112

19121COVER, DUST PROOF

main19121-10010i12R#..RT130197809-197912

main19121-33011i2T,3T..TT13#197809-198112

main19121-38030i12RM..RT130197908-198205

main19121-38210i21RC..RT133198108-198301

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-26210i2T,3T..TT13#197908-198112

main19122-29021i12R#..RT130197809-197912

main19122-33013i12RM..RT130197809-198205

main19122-88262i21RC..RT133198108-198301

19122ARING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE)

main90099-07081i12R#..RT130197809-197912

19123PLATE, DISTRIBUTOR BREAKER

main19123-41011i12R#..RT130197809-197912

19125SPRING(FOR DISTRIBUTOR STATIONARY PLATE)

main19125-30010i12R#..RT130197809-197912

19125ABALL, DISTRIBUTOR STATIONARY PLATE

main90099-12003i12R#..RT130197809-197912

19133CONDENSER, DISTRIBUTOR

main90099-52059i3T..TT132197809-198112

main90099-52060i12R#..RT130197809-197912

main90099-52068i18R#..RT132197908-198205

19145POINT, DISTRIBUTOR

main19145-26060i2T,3T..TT13#197809-198205

19151SHAFT, GOVERNOR

main19151-22031i12R#..RT130197809-197912

main19151-24081i12RM..RT130197912-198112

main19151-25011i2T,3T..TT13#197809-198112

main19151-33011i18R#..RT132197809-198205

main19151-37080i21RC..RT133198108-198301

19152WEIGHT, GOVERNOR

main19152-44170i21RC..RT133198107-198301

main19152-45060i18R#..RT132197809-198205

sub19152-44170

main19152-87104i12R#..RT130197809-197912

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-25011i2T,3T..TT13#197809-198112

main19195-31020i12R#..RT130197809-197912

main19195-31031i12RM..RT130197912-198112

main19195-33011i18R#..RT132197809-198205

main19195-38210i21RC..RT133198108-198301

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-26220i3T..TT132197809-198008

main19220-26310i2T..TT133197908-198112

sub19220-26220

main19220-31020i12R#..RT130197809-197912

main19220-31030i12RM..RT130197912-198112

main19220-34200i18RC..RT132198001-198108

main19220-34210i18R..RT132197809-198205

main19220-34230i18R..RT132197908-198001

sub19220-34210

main19220-34240i18RC..RT132197908-198001

main19220-37070i21RC..RT133198108-198301

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07104i12R#..RT130197809-197912

main90099-07109i21RC..RT133198108-198301

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-30030i12R#,18R..RT130,132197809-198205

sub19221-60040

19231TERMINAL, DISTRIBUTOR

main19132-36020i3T..TT132197809-198112

main19231-22010i12R#..RT130197809-197912

sub19231-45020

main19231-24140i12RM..RT130197908-198205

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-40010i12R#..RT130197809-198112

main19955-33010i18R#..RT132197809-198205

9009050492

main90090-50492

9009300413

main90093-00413

9009331202

main90093-31202

9009331204

main90093-31204

9009332303

main90093-32303

9009900710

main90099-00710

9009900803

main90099-00803

9009900871

main90099-00871

9009901100

main90099-01100

9009901191

main90099-01191

9009901238

main90099-01238

9009902019

main90099-02019

9009902093

main90099-02093

9009905803

main90099-05803

9009919084

main90099-19084

9017306009

main90173-06009

9161140816

main91611-40816

9318016032

main93180-16032

9331914008

main93319-14008

9451100400

main94511-00400

9461110601

main94611-10601

47 parts on this diagram · 8 diagrams in section
