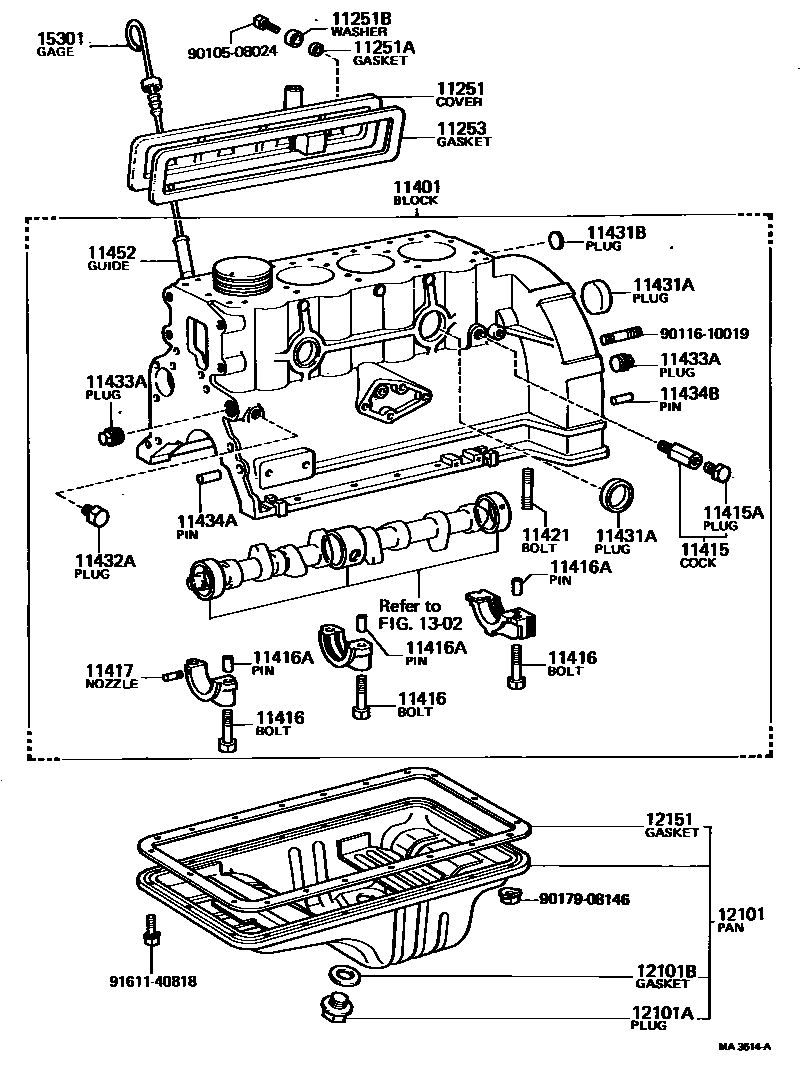

Toyota CORONA — CYLINDER BLOCK
11251COVER, VALVE PUSH ROD
11251AGASKET(FOR VALVE PUSH ROD COVER BOLT)
11251BWASHER, SEAL(FOR VALVE PUSH ROD COVER BOLT)
11253GASKET, VALVE PUSH ROD COVER
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
11417NOZZLE, OIL
11421BOLT, STUD(FOR OIL PAN)
L=27,S=9&14
main92122-40818i2T..TT133;3T..TT132..RHD;3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F198106-198112
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=50
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=30
OD=40
11432APLUG, W/HEAD TAPER SCREW, NO.1
RR
FR
11433APLUG, STRAIGHT, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=23,OD=8
L=18,OD=8,L=18,OD=8
L=22,OD=10,L=22,OD=10
L=11,OD=11,L=11,OD=11
L=8,OD=11,L=8,OD=11
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=18,OD=8,L=18,OD=8
L=22,OD=10,L=22,OD=10
L=22,OD=10,L=22,OD=10
L=16,OD=17
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
sub90033-41020
12101BGASKET(FOR OIL PAN DRAIN PLUG)
sub90430-18023
1302
15301GAGE SUB-ASSY, OIL LEVEL
9010508024
main90105-08024
9011610019
main90116-10019
9017908146
main90179-08146
9161140818
main91611-40818
28 parts on this diagram · 4 diagrams in section
