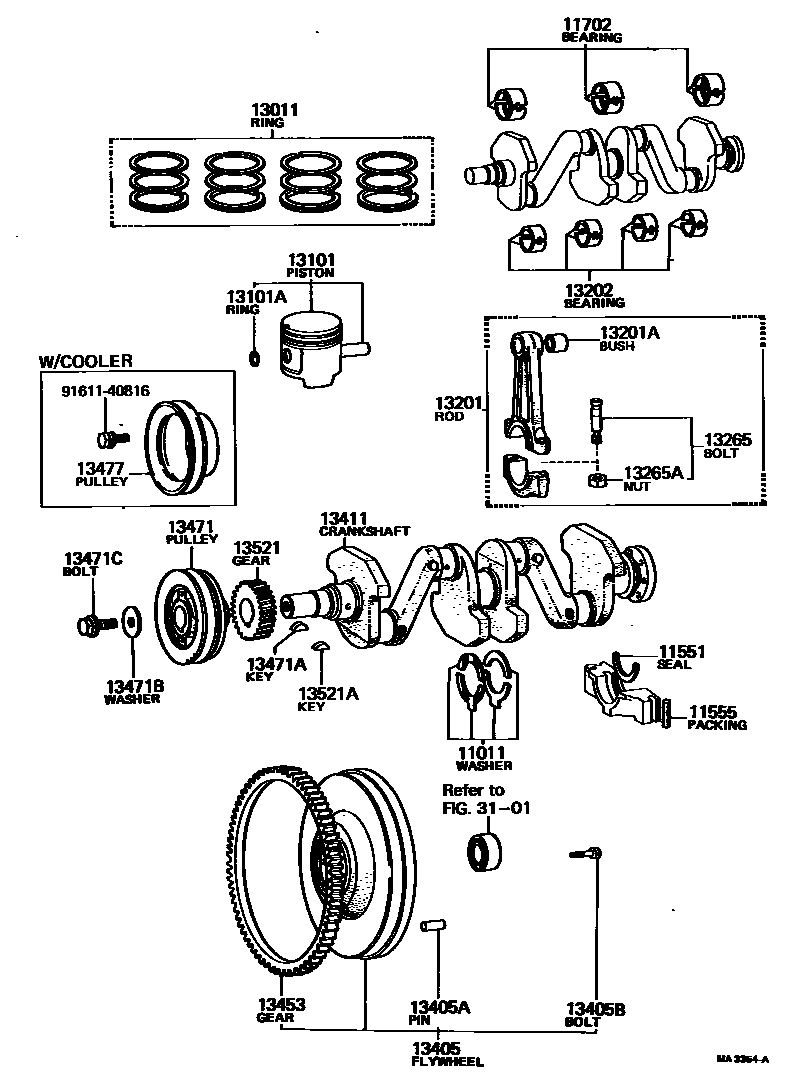

Toyota CORONA — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11551SEAL, CRANKSHAFT OIL, REAR
sub11551-31011
11555PACKING, BEARING CAP SIDE, NO.1
11702BEARING SET, CRANKSHAFT
STD
STD
STD
STD,STD
STD,STD
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
13011RING SET, PISTON
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
U/S 0.05
U/S 0.25
U/S 0.50
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
N=115
N=115
N=125
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
13453GEAR, FLYWHEEL RING
N=115
N=125
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
W/COOLER
W/POWER STEERING
W/COOLER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=25
N=18
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
3101
9161140816
main91611-40816
