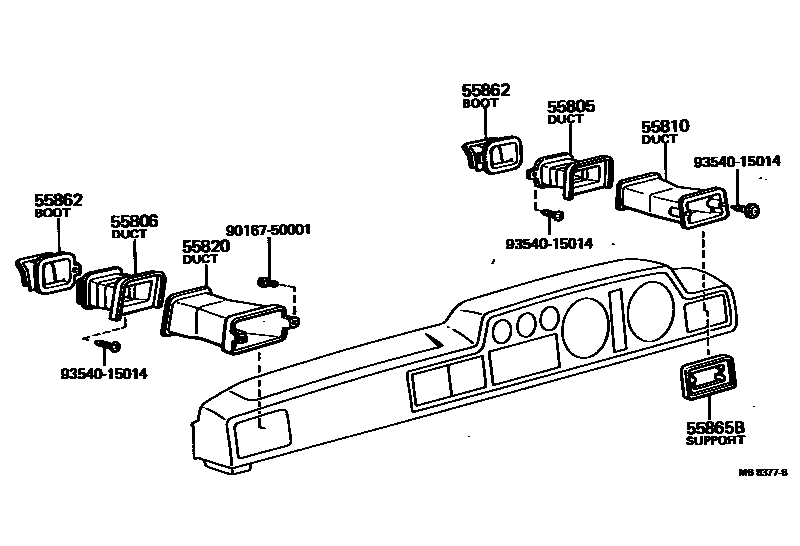

Toyota CORONA — COWL VENTILATOR

55805DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 RH

main55830-20010iRT130,TT133..RHD197809-198112

main55840-20040iRT130,TT133..LHD197809-198112

55806DUCT SUB-ASSY, SIDE VENTILATOR, NO.2 LH

main55830-20010iRT130,TT133..LHD197809-198112

main55840-20040iRT130,TT133..RHD197809-198112

55810DUCT ASSY, SIDE VENTILATOR, RH

main55841-20010iRT130,TT133..RHD197809-198112

main55841-20040iRT130,TT133..LHD197809-198112

55820DUCT ASSY, SIDE VENTILATOR, LH

main55842-20030iRT130..RHD197809-197903

main55842-20031iRT130,TT133..RHD197903-198112

main55842-20040iRT130..LHD197809-197903

main55842-20041iRT130,TT133..LHD197903-198112

55862BOOT, SIDE VENTILATOR

main55863-20020iRT130,TT133197809-198112

55865BSUPPORT, SIDE VENTILATOR DUCT

main55865-20010iRT13#,TT13#,XT130197809-198301

9016750001

main90167-50001

9354015014

main93540-15014

8 parts on this diagram · 1 diagram in section
