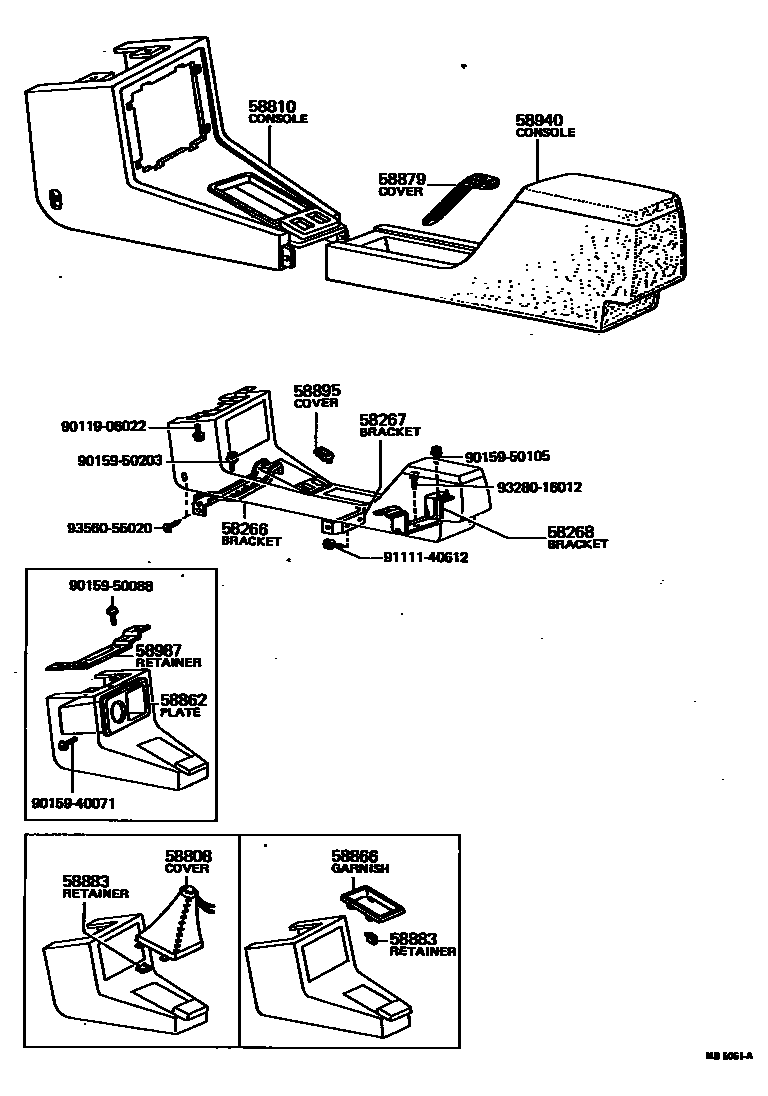

Toyota CORONA — CONSOLE BOX & BRACKET

0001 1 0002 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58851-20010iRT112,114,117197308-197509

main58851-20011iRT110,114,118;RT104..3FC..ARL;RT104..EUR,GEN,SA197604-197905

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58859-20010iRT110,114,118;RT104..3FC..ARL;RT104..EUR,GEN,SA197509-197701

main58859-20011iRT114,118;RT104..3FC..ARL;RT104..EUR,GEN,SA197701-197905

main58859-20020iRT114..SA;RT104..4F..SA197509-197701

FOR FULL CONSOLE

main58859-20021iRT114..SA;RT104..4F..SA197701-197905

FOR FULL CONSOLE

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58852-20010iRT104,114..4F..SA197308-197410

main58852-20020iRT104,114..4F..SA197410-197509

FOR FULL CONSOLE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20030iRT110,114,118..4F;RT104..MTM..(EUR,GEN,SA)197509-197701

main58808-20030-01iRT114,118..4F;RT104..MTM..(EUR,GEN,SA)197701-197905

BLACK,BLACK,TRIM2#

main58808-20030-05iRT114,118..4F;RT104..MTM..(EUR,GEN,SA)197701-197905

BEIGE,BEIGE,TRIM4#

58810CONSOLE ASSY

main58801-20010-01iRT104,114..4F..SA197309-197410

BLACK,BLACK,TRIM2#,8#

main58801-20010-03iRT104,114..4F..SA197309-197408

GRAY,GRAY,TRIM1#

main58801-20010-06iRT104,114..4F..SA197309-197410

OLIVE-BROWN,BROWN,TRIM4#

main58801-20011-01iRT104,114..4F..SA197410-197509

BLACK,BLACK,TRIM2#,8#

main58801-20011-06iRT114..SA;RT104..4F..SA197509-197512

OLIVE-BROWN,BROWN,TRIM4#

main58801-20012-01iRT114..SA;RT104..4F..SA197512-197905

FULL CONSOLE,BLACK,BLACK,TRIM2#,8#

main58801-20012-05iRT114..SA;RT104..4F..SA197701-197905

FULL CONSOLE,BEIGE,BEIGE,TRIM4#

main58801-20012-06iRT114..SA;RT104..4F..SA197512-197701

OLIVE-BROWN,BROWN,TRIM4#

main58801-20012-13iRT114..SA;RT104..4F..SA197701-197905

FULL CONSOLE,GRAY,GRAY,TRIM1#

main58801-20040-01iRT104,114..4F..SA197308-197309

BLACK,BLACK,TRIM2#,8#

main58801-20040-03iRT104,114..4F..SA197308-197309

GRAY,GRAY,TRIM1#

main58801-20040-06iRT104,114..4F..SA197308-197309

OLIVE-BROWN,BROWN,TRIM4#

main58801-20060-01iRT104..LHD..EUR197701-197808

SEMI CONSOLE,FULL DUCT,BLACK,BLACK,TRIM2#

main58801-20060-03iRT104..LHD..EUR197701-197808

SEMI CONSOLE,FULL DUCT,GRAY,GRAY,TRIM1#

main58801-20060-05iRT104..LHD..EUR197701-197808

SEMI CONSOLE,FULL DUCT,BEIGE,BEIGE,TRIM4#

main58801-20060-06iRT102,104,117,118..LHD..EUR197502-197701

SEMI CONSOLE,FULL DUCT,BROWN,BROWN,TRIM4#

main58811-20050-01iRT118..3FC;RT118..EUR,GEN197701-197905

BLACK,BLACK,TRIM2#

main58811-20050-03iRT102..RHD..(EUR,GEN);RT104,112,117,118..RHD197308-197408

GRAY,GRAY,TRIM1#

main58811-20050-05iRT118..3FC;RT118..EUR,GEN197701-197905

BEIGE,BEIGE,TRIM4#

main58811-20050-06iRT102..RHD..(EUR,GEN);RT104,112,117,118..RHD197308-197509

OLIVE-BROWN,BROWN,TRIM4#

main58811-20050-13iRT118..3FC;RT118..EUR,GEN197701-197905

GRAY,GRAY,TRIM1#

main58811-20060-01iRT118..LHD..EUG;RT114,118..LHD..GEN197701-197905

SEMI CONSOLE,BLACK,BLACK,TRIM2#

main58811-20060-03iRT102,110,112,117..LHD197308-197408

GRAY,GRAY,TRIM1#

main58811-20060-05iRT118..LHD..EUG;RT114,118..LHD..GEN197701-197905

SEMI CONSOLE,BEIGE,BEIGE,TRIM4#

main58811-20060-06iRT110,114,118..LHD;RT104..LHD..4F..EUG;RT104..LHD..4F..GEN;RT104..LHD..(3FC,5F)197509-197701

BROWN,BROWN,TRIM4#

main58811-20060-13iRT118..LHD..EUG;RT114,118..LHD..GEN197701-197905

SEMI CONSOLE,GRAY,GRAY,TRIM1#

58862PLATE, CONSOLE FINISH

main58862-20080iRT112,114,117197308-197509

FOR L/RADIO

58866GARNISH, SHIFTING HOLE

main58866-20010iRT102,104,112,118..RHD..3FC197308-197509

main58866-20011iRT104,114,118..RHD..3FC197701-197905

main58866-20020iRT104,114..LHD..3FC197509-197701

main58866-20021iRT104,114..LHD..3FC197701-197808

58879COVER, PARKING BRAKE LEVER

main58083-20010iRT114..SA;RT104..4F..SA197410-197905

58883RETAINER, SHIFTING HOLE COVER

main58883-22010×4iRT112,114,117197308-197509

58895COVER, SWITCH HOLE, NO.1

main58896-20010×2iRT104..4F..SA197308-197408

main58896-20011×2iRT104,114..4F..SA197408-197509

FOR FULL CONSOLE

58940CONSOLE ASSY, REAR

main58950-20010-01iRT104,114..4F..SA197309-197410

BLACK,BLACK,TRIM2#

main58950-20010-03iRT104,114..4F..SA197309-197408

GRAY,GRAY,TRIM1#

main58950-20010-06iRT104,114..4F..SA197309-197410

OLIVE-BROWN,BROWN,TRIM4#

main58950-20011-01iRT104,114..4F..SA197410-197509

BLACK,BLACK,TRIM2#

main58950-20011-06iRT114..SA;RT104..4F..SA197509-197512

OLIVE-BROWN,BROWN,TRIM4#

main58950-20012-01iRT114..SA;RT104..4F..SA197512-197905

BLACK,BLACK,TRIM2#

main58950-20012-05iRT114..SA;RT104..4F..SA197701-197905

BEIGE,BEIGE,TRIM4#

main58950-20012-06iRT114..SA;RT104..4F..SA197512-197701

OLIVE-BROWN,BROWN,TRIM4#

main58950-20012-13iRT114..SA;RT104..4F..SA197701-197905

GRAY

main58950-20020-01iRT104,114..4F..SA197308-197309

BLACK,BLACK,TRIM2#

sub58811-95500

main58950-20020-03iRT104,114..4F..SA197308-197309

GRAY,GRAY,TRIM1#

sub58811-95500

main58950-20020-06iRT104,114..4F..SA197308-197309

OLIVE-BROWN,BROWN,TRIM4#

sub58811-95500

58987RETAINER, CONSOLE BOX STEREO, NO.1

main58987-20010iRT118..RHD..GEN;RT104,114..RHD..DLX197509-197701

main58987-20011iRT104,114..RHD197701-197905

main58987-20020iRT104..LHD..DLX;RT110,114,118..LHD;RT104..LHD..STD..EUG;RT104..LHD..3FC..STD197509-197612

main58987-20021iRT104,114..LHD197612-197905

9011906022

main90119-06022

9015940071

main90159-40071

9015950088

main90159-50088

9015950105

main90159-50105

9015950203

main90159-50203

9111140612

main91111-40612

9328016012

main93280-16012

9356055020

main93560-55020

20 parts on this diagram · 2 diagrams in section
