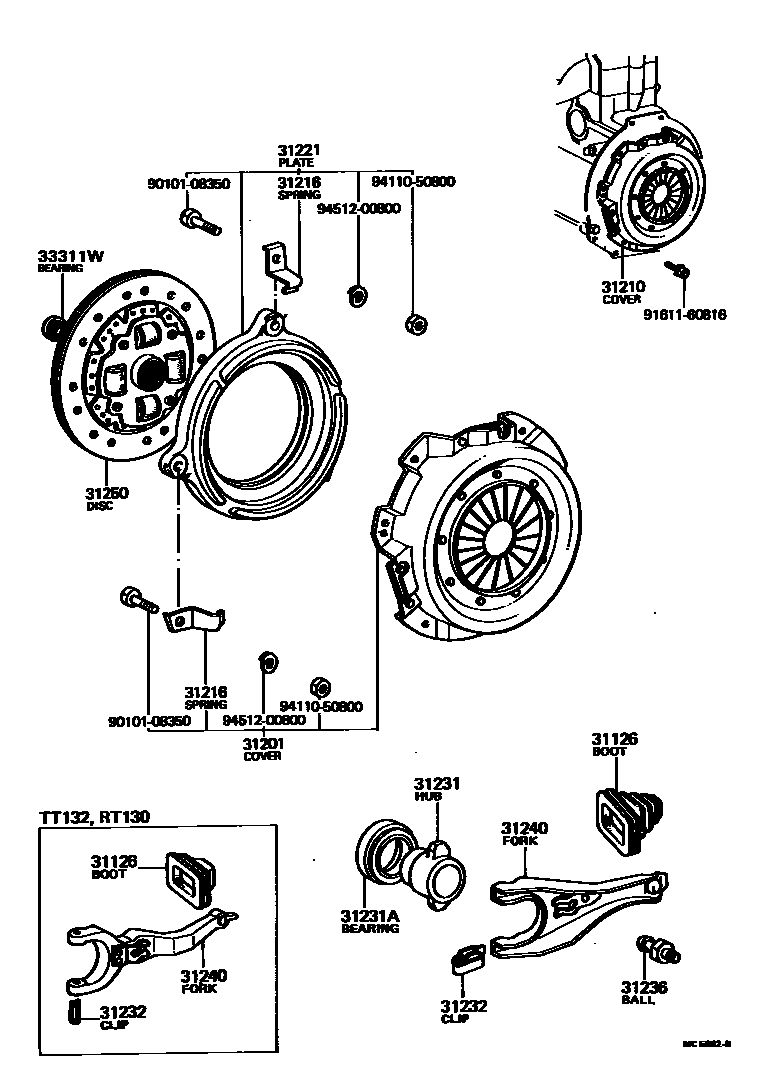

Toyota CORONA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTT132..MTM197809-198108

main31126-20050iRT130197809-198112

main31126-20060iRT132,133..MTM197809-198301

main31126-20070iTT132..MTM..EUR198008-198112

main31126-22040iTT133197908-198008

31201COVER SUB-ASSY, CLUTCH

main31201-19047iTT132..MTM197809-197907

sub31201-19048

main31201-19048iTT132..MTM197907-198008

sub31201-19075

main31201-19065iTT133197908-198112

main31201-19075iTT132..MTM198008-198112

main31201-29057iRT130197809-197907

sub31201-29058

main31201-29058iRT130197907-197911

sub31201-19065

main31201-39045iRT132197809-197907

sub31201-39046

main31201-39046iRT132197907-198003

sub31201-39047

main31201-39047iRT132,133..MTM198003-198301

31210COVER ASSY, CLUTCH

main31210-14070iTT133197908-198112

sub31210-14100

main31210-20081iRT130197809-197907

sub31210-20082

main31210-20082iRT130197907-197911

sub31210-20083

main31210-20083iRT130197911-198112

sub31210-12180

main31210-23010iTT132..MTM197809-197907

sub31210-23011

main31210-23011iTT132..MTM197907-198008

sub31210-23012

main31210-23012iTT132..MTM198008-198112

sub31210-12210

main31210-30140iRT132197809-198003

sub31210-30141

main31210-30142iRT132..MTM198003-198205

sub31210-20171

main31210-30172iRT133..5F198108-198301

sub31210-20270

31216SPRING, CLUTCH RETRACTING

main31216-20020iRT130,TT13#..MTM197809-198112

main31216-30010iRT132,133..MTM197809-198301

31221PLATE, CLUTCH PRESSURE

main31221-19015iTT133197908-198112

main31221-19025iRT130,TT132..MTM197809-198112

main31221-39025iRT132..MTM197809-198205

main31221-39115iRT133..5F198108-198301

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-14031iTT133197908-198008

sub31231-14032

main31231-20070iRT132197809-197903

sub31231-20071

main31231-20071iRT132..MTM197903-198008

main31231-20081iTT133198008-198112

main31231-20090iTT132..MTM..EUR198008-198301

main31231-27020iTT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198102-198108

main31231-30060iRT130197809-197810

sub31231-30061

main31231-30061iRT130197810-198103

main31231-30070iTT132..MTM197809-197903

sub31231-30071

main31231-30071iTT132..MTM..GEN197903-198102

main31231-30080iRT130198103-198112

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRT13#,TT13#..MTM197809-198002

sub90363-40008

main90363-40008iRT13#,TT13#..MTM198002-198008

main90363-40015iRT13#,TT13#..MTM198008-198012

sub90363-40022

main90363-40022iTT132..LHD..4F;TT132..RHD..MTM;RT13#,TT133..MTM;TT132..(HT,LB)..LHD..5F198012-198301

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iTT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198102-198108

main31232-22010iRT132,TT133..MTM197809-198301

main31232-30010iTT132..MTM197809-198102

main31232-30020iRT130197809-198112

31236BALL, RELEASE FORK

main31236-20020iRT132,TT13#..MTM197809-198107

sub31236-30060

main31236-30030iRT130197809-198112

main31236-30060iTT132..LHD..4F;TT132..RHD..MTM;RT132,133,TT133..MTM;TT132..(HT,LB)..LHD..5F198107-198301

31240FORK ASSY, CLUTCH RELEASE

main31204-20030iRT130197809-197902

sub31204-20031

main31204-20031iRT130197902-198103

main31204-20040iTT132..MTM197809-198102

main31204-20050iRT132..MTM197809-198008

main31204-20070iRT132,133..MTM198008-198301

sub31204-20072

main31204-20080iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198008-198112

main31204-20090iTT132..MTM..EUR198008-198108

main31204-22030iTT133197908-198008

main31204-25020iRT130198103-198112

main31204-27020iTT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN198102-198108

31250DISC ASSY, CLUTCH

main31250-12081iTT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198106-198112

sub31250-12184

main31250-14090iTT133197911-198112

sub31250-14091

main31250-20023iRT130,TT132..MTM197809-197910

sub31250-20024

main31250-20024iRT130,TT132..MTM197910-198008

sub31250-22090

main31250-20060iTT133197908-197911

sub31250-14090

main31250-22042iRT132197809-197812

sub31250-22043

main31250-22043iRT132197812-197910

sub31250-22044

main31250-22044iRT132,133..MTM197910-198301

sub31250-22080

main31250-22090iRT130,TT132..MTM198008-198106

sub31250-22091

main31250-22091iRT130198106-198112

sub31250-28140

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRT13#..MTM198011-198301

sub90363-12024

main90363-12003iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F198011-198112

main97123-06001iTT13#..MTM197809-198011

6001VV

main97143-06201iRT13#..MTM197809-198011

sub90363-12002

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
