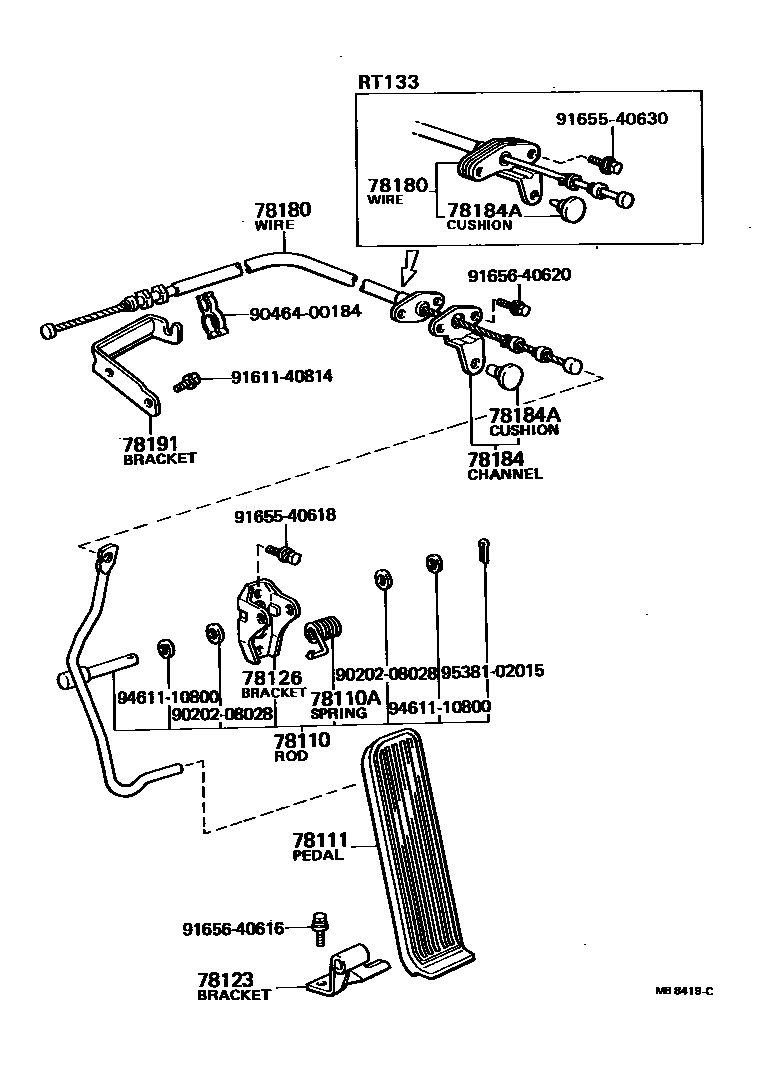

Toyota CORONA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-20050iTT13#,XT130..RHD197809-198301

main78120-20060iRT133198108-198301

main78120-20080iTT13#..LHD197809-198008

main78120-20081iTT13#..LHD198008-198112

main78120-20090iRT130,132..LHD197809-198205

main78120-20100iRT130,132..RHD197809-198112

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-20015iTT13#..RHD;RT133,XT130197809-198301

main90508-20017iTT13#..LHD197809-198112

main90508-23007iRT13#..LHD197809-197905

main90508-26022iRT130,132..RHD197809-198112

main90508-26029iRT130,132..LHD197905-198205

78111PEDAL, ACCELERATOR

main78010-20040iRT130,132,TT13#..LHD197809-198205

main78111-14010iRT133;RT130,132,TT13#,XT130..RHD197809-198301

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-14010iRT133;RT130,132,TT13#,XT130..RHD197809-198301

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-20020iTT13#,XT130..RHD197908-198301

main78126-20030iRT133;RT130,132..RHD197809-198301

78180WIRE ASSY, ACCELERATOR

main78180-14050iTT13#..LHD197809-198008

main78180-20102iRT133198108-198301

main78180-20140iTT13#..RHD197809-198112

main78180-20180iTT13#..LHD198008-198112

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-14040iTT13#..LHD197809-198008

main78181-20100iTT13#,XT130..RHD197809-198301

main78181-20110iTT13#..LHD198008-198112

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iRT133,TT13#,XT130197809-198301

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78024-12010iTT13#..LHD197809-198112

main78184-12050iTT13#..RHD197809-198112

main78184-20050iRT133198108-198301

9020208028

main90202-08028

9046400184

main90464-00184

9161140814

main91611-40814

9165540618

main91655-40618

9165540630

main91655-40630

9165640616

main91656-40616

9165640620

main91656-40620

9461110800

main94611-10800

9538102015

main95381-02015

18 parts on this diagram · 4 diagrams in section
