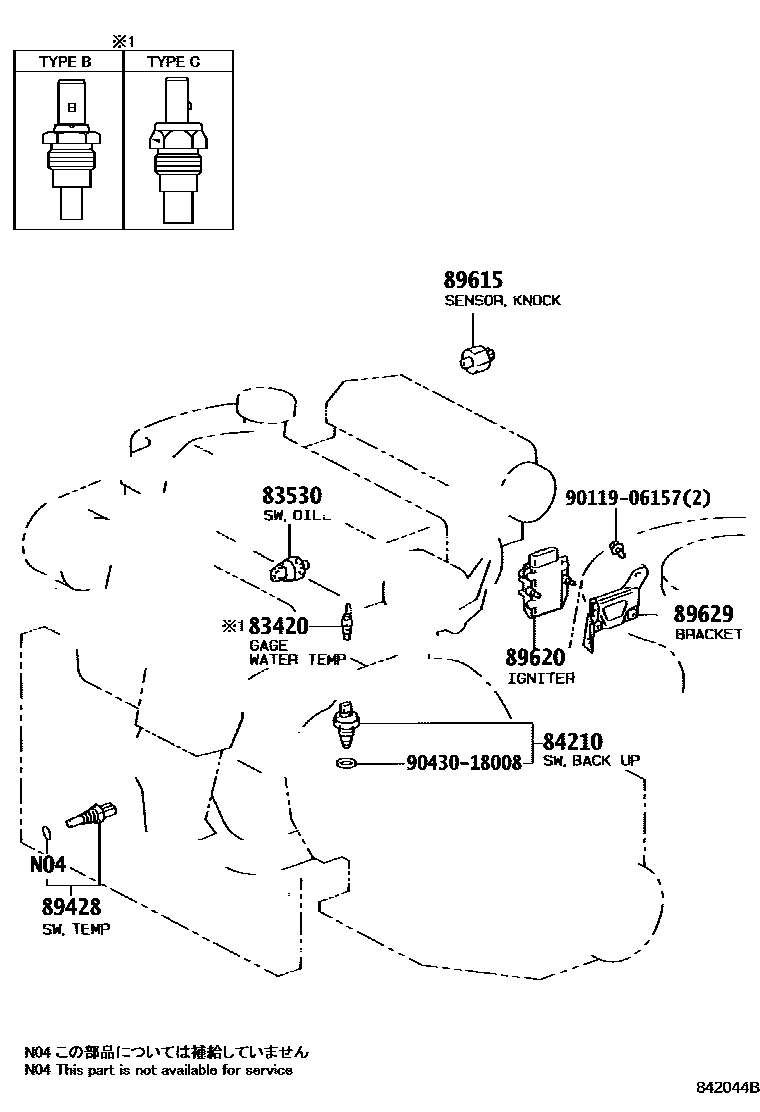

Toyota CORONA WG — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL SWITCH 0004 1COWL 0005 1COMBINATION SWITCH 0006 1ROOF,DOOR,FLOOR & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST191..JPP199211-199601

TYPE B:REFER ILLUST.

main83420-20030iST191..JPP199211-199601

TYPE C:REFER ILLUST.

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iST191..JPP199211-199601

NIPPONDENSO

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iST191..JPP199211-199601

sub84210-52050

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iST191..JPP199211-199601

89615SENSOR, KNOCK CONTROL

main89615-20030iST191..JPP199211-199601

TOYOTA

sub89615-32040

main89615-33020iST191..JPP199211-199601

NIPPONDENSO

sub89615-32030

89620IGNITER ASSY

main89621-16020iST191..JPP199211-199601

sub89621-26010

89629BRACKET, IGNITER ASSY

main89629-20140iST191..JPP199211-199601

9011906157

main90119-06157

9043018008

main90430-18008

9 parts on this diagram · 6 diagrams in section
