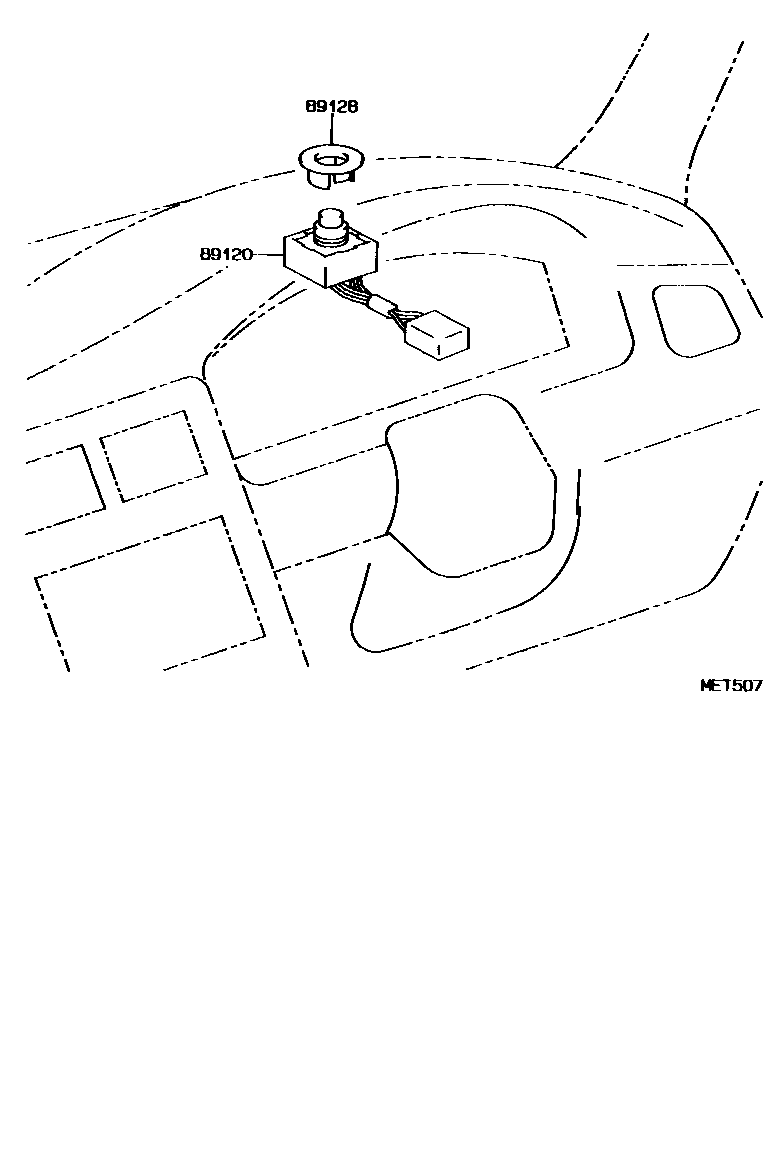

Toyota CORONA (SED/LB) — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-20030iAT190,ST191..JPP..RHD199606-199607

89128NUT, CONLIGHT SCANNER

main89128-33010-B1iAT190,ST191..JPP..RHD..GL199402-199711

SHADOW GRAY,TRIM1#

main89128-33010-C0iAT190,ST191..JPP..RHD..GL199203-199402

BLACK,TRIM2#

main89128-33010-E0iAT190,ST191..JPP..RHD..SED..GL199203-199305

ANTELOPE,TRIM4#

main89128-33010-J0iAT190,ST191..JPP..RHD..SED..GL199203-199607

DK.BLUE,TRIM8#

2 parts on this diagram · 1 diagram in section
