Toyota CORONA FR — METER

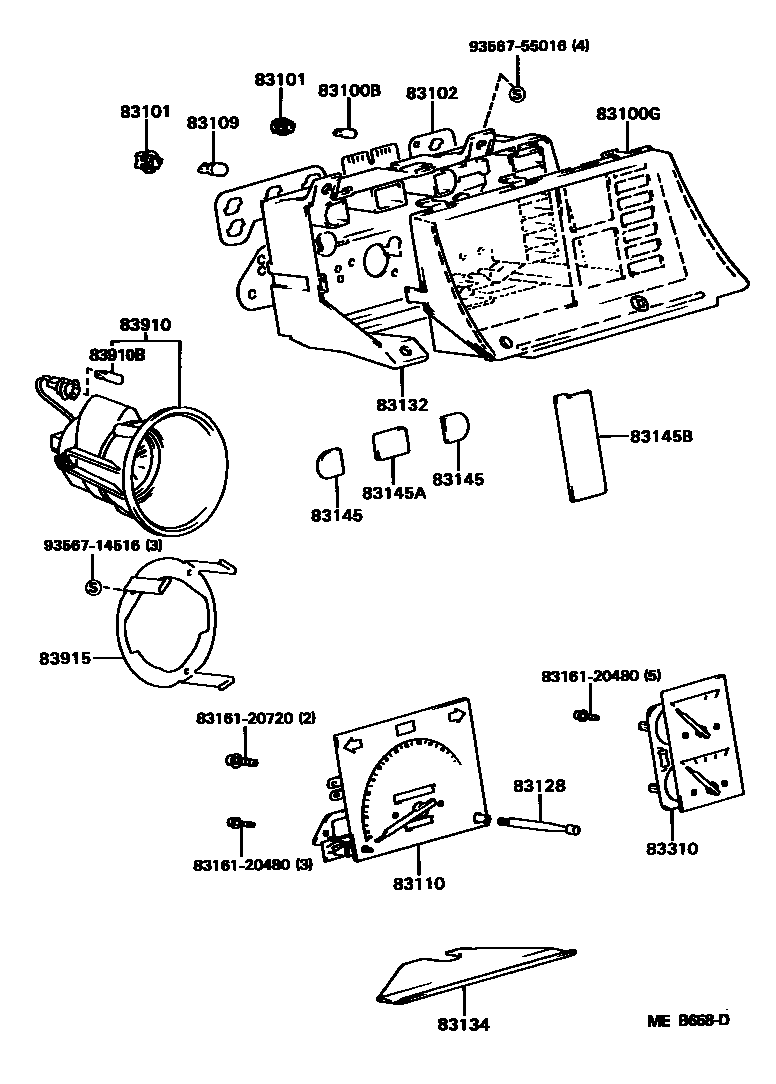

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main90981-11018×7i198201-199907
12V 1.2W W/O SOCKET,12V 1.4W
main90981-11035i198807-199907
14V 3.4W,12V 3.4W,LONG LIFE TYPE
main99132-12034×11i198201-199907
12V 3.4W,12V 3.4W
83100GGLASS, COMBINATION METER
main83133-20130i198201-198310
W/O CLOCK
main83133-20150i198201-199907
W/ANALOGUE CLOCK
main83133-20170i198201-198508
W/TACHOMETER
main83138-2B040i198201-198310
main83138-2B060i198601-199907
main83138-2B080i198201-198312
main83138-2B100i198201-198508
W/ANALOGUE CLOCK
main83138-2B140i198304-198612
W/TACHOMETER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×10i198201-199907
BULB:12V 3.4W(OD=18)
main83101-14040×11i198201-199907
BULB:12V 1.4W(OD=11.3)
main83101-20040×10i198201-199907
BULB:12V 3.4W(OD=18)
main83101-20070×3i198508-198612
BULB:12V 3.4W(OD=18)GREEN CAP
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-20390i198208-198310
main83247-20410i198201-198208
W/ANALOGUE CLOCK
main83247-20430i198208-198209
W/TACHOMETER
main83247-20450i198208-198209
main83247-20490i198208-198310
*ME,W/O CLOCK; W/O CLOCK
main83247-20510i198208-198310
*ME,W/O TACHOMETER; W/O TACHOMETER
main83247-20530i198208-198310
W/TACHOMETER
main83247-20910i198612-199907
W/O CLOCK
main83247-2B140i198201-198508
main83247-2B160i198201-198209
main83247-2B200i198209-198412
W/TACHOMETER
main83247-2B280i198201-198310
KM
main83247-2B300i198201-198310
MILE & KM
main83247-2B340i198601-199907
KM
main83247-2B400i198612-199907
MILE & KM
main83247-2D020i198801-199907
83109BULB, COMBINATION METER, NO.2
main83109-20060×2i198601-198807
GREEN CAP BULB,12V 3.4W
main83109-24030×3i198508-198612
12V3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W
main83109-94350×2i198807-199907
14V3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W
83110SPEEDOMETER ASSY
main83110-20600i198705-199907
KM,SINGAPOLE SPEC
main83110-20750i198201-198508
KM
main83110-20760i198201-198412
KM,W/TACHOMETER
main83110-20770i198201-198508
MILE & KM,W/ANALOGUE CLOCK
main83110-20780i198201-198412
MILE & KM,W/TACHOMETER
main83110-20790i198201-199907
KM
main83110-20810i198201-198508
MILE & KM
main83110-20850i198201-198310
KM
main83110-20860i198201-198310
MILE & KM
main83110-2B100i198304-198508
main83110-2B560i198601-199210
KM
main83110-2B590i198508-198612
main83110-2B680i198612-199907
MILE & KM
main83110-2B690i198801-199907
main83110-2B700i198801-199907
MILE & KM
main83110-2D470i199210-199907
KM
83128KNOB, TRIP COUNTER
main83128-10260i198201-199907
main83128-20710i198201-198508
W/O CLOCK OR W/ANALOGUE CLOCK
main83128-20720×2i198201-198612
W/TACHOMETER
83132CASE, COMBINATION METER
main83132-20160i198304-198508
W/TACHOMETER
main83132-2B040i198201-198310
main83132-2B060i198201-198508
W/O CLOCK OR W/ANALOGUE CLOCK
main83132-2B160i198201-198209
W/TACHOMETER
main83132-2B180i198201-198209
W/TACHOMETER
main83132-2B280i198408-198508
main83132-2B320i198508-198612
main83132-2B340i198508-198612
main83132-2B380i198601-198807
main83132-2B670i198201-198310
W/O CLOCK
main83132-2B690i198612-199907
83134COVER, COMBINATION METER, NO.1
main83134-2B220i198508-198612
main83134-2B240i198201-198212
main83134-2B340i198212-198310
83145LENS, METER, NO.1
main83145-2B060×2i198304-198612
TURN
83145ALENS, METER, NO.2
main83145-20250i198208-198310
W/O CLOCK
main83145-20270i198208-198209
W/CLOCK
main83145-20290i198201-198209
main83145-20330i198208-198310
*ME,W/O CLOCK; W/O CLOCK
main83145-20350i198208-198310
*ME,W/O TACHOMETER; W/O TACHOMETER
main83145-2B080i198304-198612
BEAM
83145BLENS, METER, NO.3
main83131-2B020i198508-198612
main83131-2B040i198508-198612
main83145-20230×2i198201-199907
main83145-20360i198304-198408
W/TACHOMETER
main83145-2B260i198201-198312
main83145-2B300i198201-198508
W/ANALOGUE CLOCK
main83145-2B420i198408-198508
W/TACHOMETER
main83145-2B540i198201-198310
KM
main83145-2B560i198201-198310
MILE & KM
main83145-2B640i198201-198412
KM,W/TACHOMETER
main83145-2B660i198201-198412
MILE & KM,W/TACHOMETER
main83145-2B700i198601-199907
KM
main83145-2B780i198612-199907
MILE & KM
main83145-2D020i198801-199907
83310GAGE ASSY, FUEL RECEIVER
main83243-20270i198201-198310
main83243-20290i198612-199907
main83243-20340i198508-198612
main83243-2B060i198201-198312
main83243-2B080i198201-198508
W/CLOCK
main83243-2B100i198304-198508
W/TACHOMETER
main83243-2B160i198201-198310
main83243-2B180i198601-199907
KM
83910CLOCK ASSY
main83910-20300i198201-198508
ANALOGUE
main83910-20310i198201-198612
DIGITAL
main83910-20320i198201-199907
ANALOGUE
main83910-20380i198508-198612
main83910-20450i198304-198508
main83920-20010i198205-198310
83910BBULB, CLOCK INDICATOR
main84999-50010i198205-198310
12V 3.4W,12V 3.4W
83915BRACKET, CLOCK
main83915-20020i198205-198310
8316120480CASE, COMBINATION METER MIRROR, NO.1
main83161-20480
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
9356714516
main93567-14516
9356755016
main93567-55016

20 parts on this diagram · 5 diagrams in section

METER for Toyota CORONA FR

This section contains 52 genuine Toyota parts for the METER system of the Toyota CORONA FR. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
