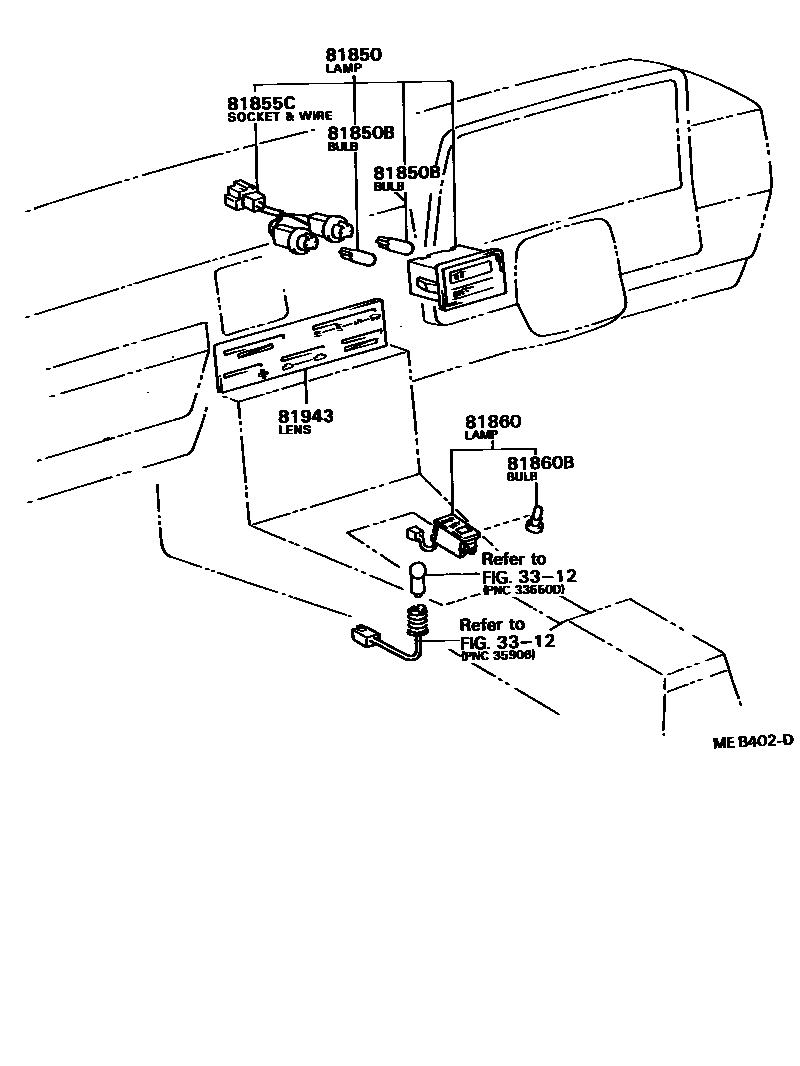

Toyota CORONA FR — INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81850LAMP ASSY, INDICATOR

main81850-20120i198201-198312

GLOW

81850BBULB, INDICATOR LAMP

main90981-11018×2i198201-198312

12V 1.2W W/O SOCKET,12V 1.2W

81855CSOCKET & WIRE, INDICATOR LAMP

main81855-20120i198201-198312

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-20040i198508-199907

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2i198508-199907

12V 1.12W,12V 1.12W

81943LENS, HEATER CONTROL INDICATOR

main81943-20070i198201-198209

main81943-20071i198209-198612

main81943-20072i198612-199907

main81943-20080i198201-198209

W/BOOST VENTILATOR

main81943-20081i198209-198508

W/BOOST VENTILATOR

main81943-20082i198612-199907

W/BOOST VENTILATOR

main81943-20090i198201-198209

main81943-20091i198512-199907

main81943-20092i198612-199907

main81943-20100i198201-198209

W/BOOST VENTILATOR

main81943-20101i198209-198512

W/BOOST VENTILATOR

main81943-20102i198612-199907

W/BOOST VENTILATOR

7 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CORONA FR

This section contains 7 genuine Toyota parts for the INDICATOR system of the Toyota CORONA FR. Key components include: SHIFT LEVER & RETAINER, LAMP ASSY, INDICATOR, BULB, INDICATOR LAMP, SOCKET & WIRE, INDICATOR LAMP, LAMP ASSY, TRANSMISSION INDICATOR.
