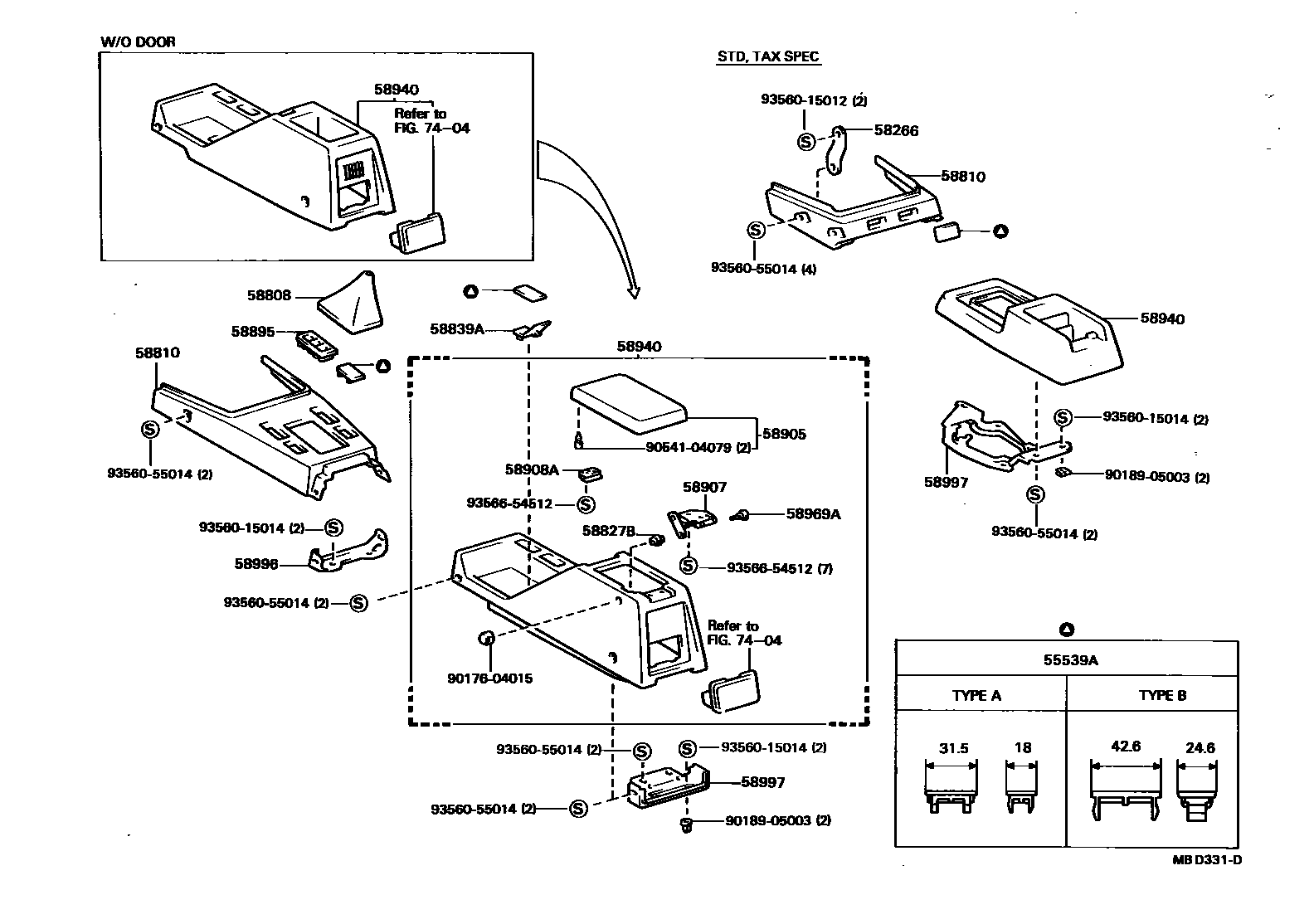

Toyota CORONA FR — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
TYPE A,BLACK,BLACK
TYPE A,BLUE,BLUE
TYPE A,SADDLE BROWN,BROWN
TYPE B,BLACK,BLACK
TYPE B,BLUE,BLUE
TYPE B,SADDLE BROWN,BROWN
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
RH; RH,TAXI SPEC
LH; LH,TAXI SPEC
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,BLACK
*ST,BLUE,BLUE
SADDLE BROWN,BROWN
BLACK,BLACK
BLUE,BLUE
SADDLE BROWN,BROWN
58810CONSOLE ASSY
BLACK,BLACK; TAXI SPEC,BLACK,BLACK
BLUE,BLUE
SADDLE BROWN,BROWN; TAXI SPEC,SADDLE BROWN,BROWN
W/FULL CONSOLE,BLACK,BLACK
*ST,W/FULL CONSOLE,BLUE,BLUE
W/FULL CONSOLE,SADDLE BROWN,BROWN
58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER
58839ACOVER, CONSOLE BOX HOLE
BLACK,BLACK
*ST,BLUE,BLUE
SADDLE BROWN,BROWN
58895COVER, SWITCH HOLE, NO.1
BLACK,BLACK
BLUE,BLUE
SADDLE BROWN,BROWN
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,BLACK
BLUE,BLUE
SADDLE BROWN,BROWN
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58940CONSOLE ASSY, REAR
W/FULL CONSOLE,W/O LID,BLACK,BLACK
W/FULL CONSOLE,W/O LID,BLUE,BLUE
W/FULL CONSOLE,W/O LID,S-BROWN,BROWN
W/FULL CONSOLE,LID,BLACK,BLACK
W/FULL CONSOLE,LID,BLUE,BLUE
W/FULL CONSOLE,LID,S-BROWN,BROWN
W/SEMI CONSOLE,BLACK,BLACK
TAXI SPEC,BLUE,BLUE
W/SEMI CONSOLE,S BROWN,BROWN
58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404ASH RECEPTACLE
9017604015
main90176-04015
9018905003
main90189-05003
9054104079
main90541-04079
9356015012
main93560-15012
9356015014
main93560-15014
9356055014
main93560-55014
9356654512
main93566-54512
22 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota CORONA FR
This section contains 22 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CORONA FR. Key components include: COVER, SPARE SWITCH HOLE, BRACKET, CONSOLE BOX SUPPORT, FRONT, COVER SUB-ASSY, SHIFTING HOLE, CONSOLE ASSY, SPACER, CONSOLE COMPARTMENT DOOR STOPPER.
