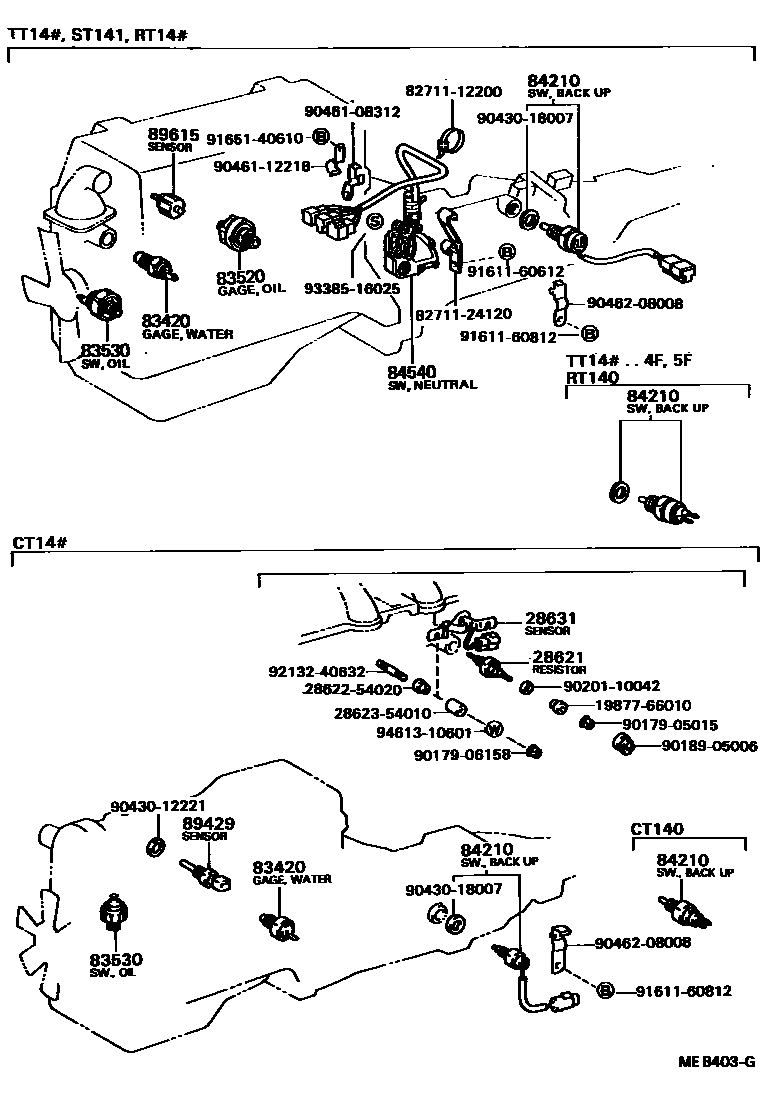

Toyota CORONA FR — SWITCH & RELAY & COMPUTER
28621RESISTOR, GLOW PLUG
28631SENSOR, GLOW PLUG CURRENT
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
89429SENSOR, OIL TEMPERATURE
89615SENSOR, KNOCK CONTROL
1987766010
main19877-66010
2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1
main28622-54020
2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2
main28623-54010
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24120
9017905015
main90179-05015
9017906158
main90179-06158
9018905006
main90189-05006
9020110042
main90201-10042
9043012221
main90430-12221
9043018007
main90430-18007
9046108312
main90461-08312
9046112218
main90461-12218
9046208008
main90462-08008
9161160612
main91611-60612
9161160812
main91611-60812
9165140610
main91651-40610
9213240632
main92132-40632
9338516025
main93385-16025
9461310601
main94613-10601
29 parts on this diagram · 7 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota CORONA FR
This section contains 161 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CORONA FR. Key components include: RELAY ASSY, CHARGE LAMP, RELAY, BULB CHECK, TIMER, PREHEATING, RELAY ASSY, INTAKE HEATER OR GLOW PLUG, COVER, GLOW PLUG RELAY.
