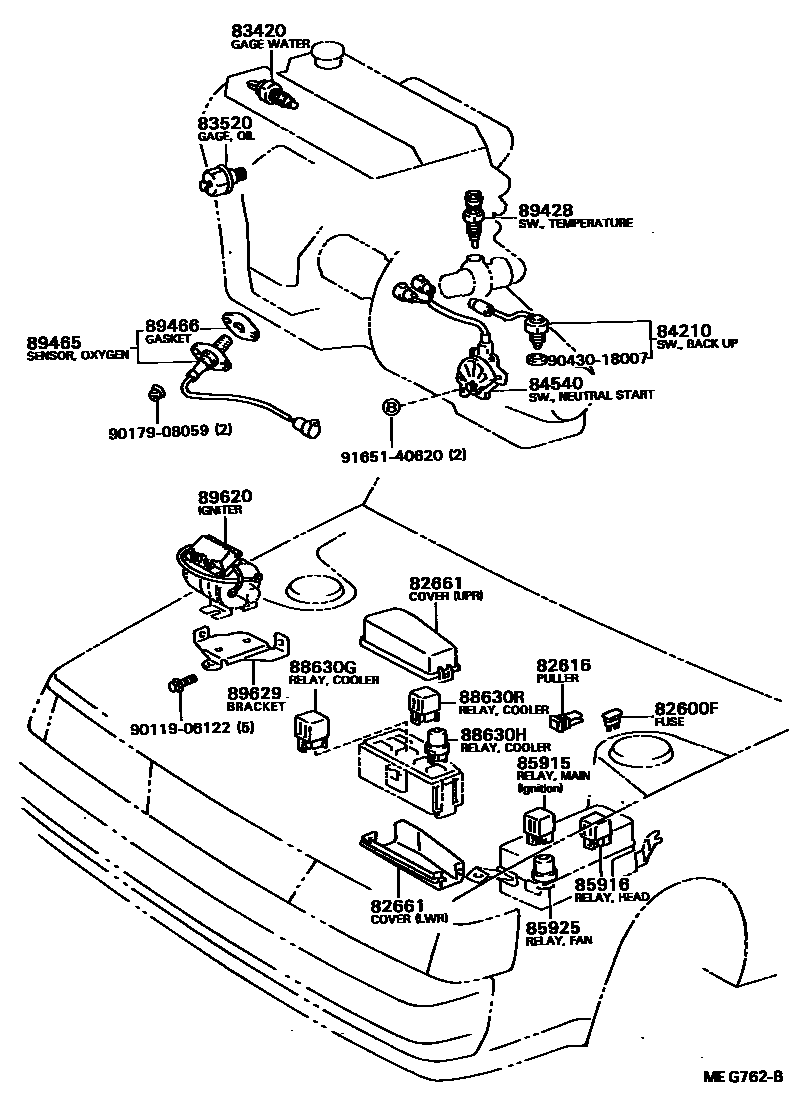

Toyota CORONA FF COUPE — SWITCH & RELAY & COMPUTER

82600FFUSE, FUSE BLOCK

main90982-07011i198508-198708

main90982-09002×3i198508-198708

main90982-09003×8i198508-198708

main90982-09004i198508-198708

main90982-09005×4i198508-198708

82616PULLER, FUSE

main82616-12020i198508-198708

82661COVER, RELAY BLOCK, NO.1

main82661-20100i198508-198708

UPR

main82661-20110i198508-198708

LWR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020i198508-198708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022i198508-198705

main83520-14023i198705-198708

main83520-14042i198508-198705

main83520-14043i198705-198708

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021i198508-198708

84540SWITCH ASSY, NEUTRAL START

main84540-12160i198508-198708

main84540-32050i198508-198708

TOKAIRIKA

85915RELAY, MAIN

main90987-02004i198602-198708

POWER MAIN

main90987-04002i198508-198708

IGNITION MAIN

85916RELAY, LIGHT CONTROL

main90987-02002i198508-198708

TAIL,MARUKO

main90987-02004i198508-198708

TAIL,DENSO

main90987-02006i198508-198708

HEAD

85925RELAY, RADIATOR FAN

main90987-03001i198508-198708

88630GRELAY ASSY, COOLER

main88630-32010i198508-198708

88630HRELAY ASSY, COOLER

main90987-02004i198508-198708

88630RRELAY ASSY, COOLER, NO.3

main85926-30020i198508-198708

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15011i198508-198708

main89428-32010i198508-198708

89465SENSOR, OXYGEN

main89465-19075i198508-198509

main89465-19095i198508-198708

main89465-20051i198508-198708

main89465-29175i198509-198708

89466GASKET, OXYGEN SENSOR

main89466-30010i198508-198708

main89466-32010i198508-198708

89620IGNITER ASSY

main89620-20221i198508-198708

main89620-20241i198508-198708

89629BRACKET, IGNITER ASSY

main89629-20030i198508-198708

9011906122

main90119-06122

9017908059

main90179-08059

9043018007

main90430-18007

9165140620

main91651-40620

22 parts on this diagram · 7 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CORONA FF COUPE

This section contains 100 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CORONA FF COUPE. Key components include: FLASHER ASSY, TURN SIGNAL, FUSE, FUSE BLOCK, PULLER, FUSE, RELAY, INTEGRATION NO.1, BREAKER ASSY, WIRING CIRCUIT, NO.1.
