Toyota CORONA FF COUPE — FRONT BUMPER & BUMPER STAY

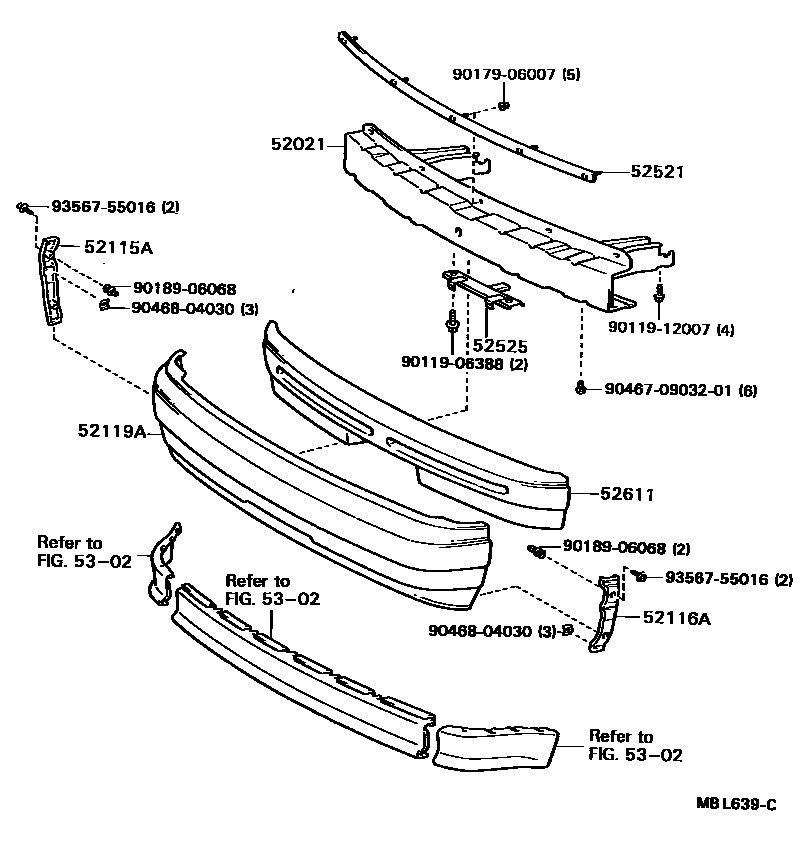

Parts diagram

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20100i198708-198908

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20160i198708-198908

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20140i198708-198908

52119ACOVER, FRONT BUMPER

main52119-20230-01i198904-198908

EVENT,BLACK,202

main52119-20230-10i198708-198908

GRAY M/SILVER M,23E

main52119-20230-12i198708-198908

RED MAICA,3H4

main52119-20230-18i198708-198908

SUPER WHITE 2,040

main52119-20230-24i198708-198908

B BLUE MAICA M,8E4

main52119-20230-43i198708-198908

GRAY M,168

main52119-20230-53i198708-198908

A SILVER M,920

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20061i198708-198908

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-20060i198708-198908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20060i198708-198908

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906388

main90119-06388

9011912007

main90119-12007

9017906007

main90179-06007

9018906068

main90189-06068

904670903201

main90467-0903201

9046804030

main90468-04030

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota CORONA FF COUPE

This section contains 15 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CORONA FF COUPE. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, RETAINER, FRONT BUMPER, UPPER CENTER.
